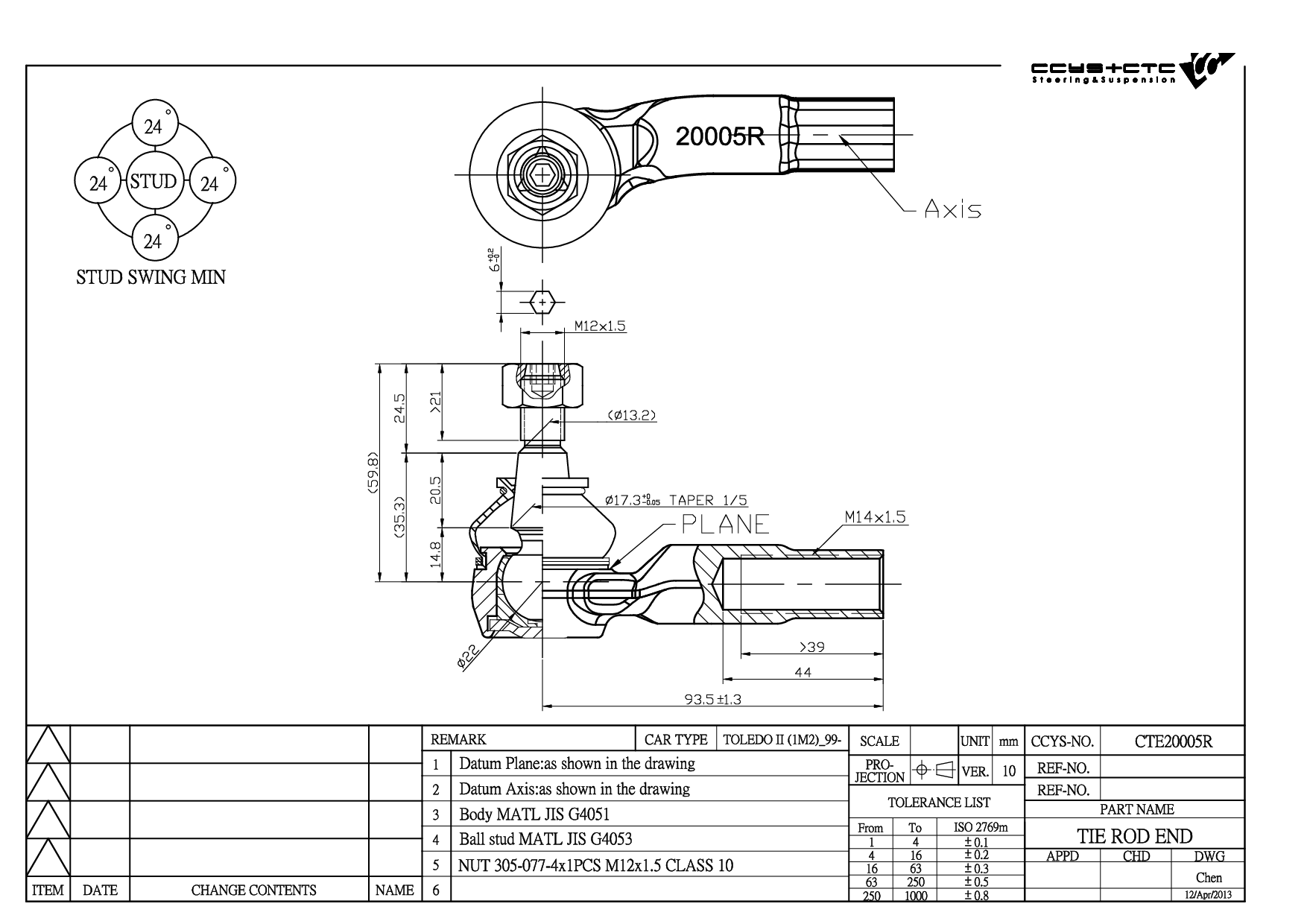

Tie Rod End

AUDI / A3 (8L1) | A3 / S3 / Tie Rod End / FRONT AXLE RH (C= M14X1.5) / CTE20005R

Name: CTE20005R
Brand: CTE
SKU: CTE20005R
Price: 562.00 TWD
Availability: InStock

Tie Rod End/AUDI/SEAT/SKODA/VOLKSWAGEN/A3 (8L1)/BORA I (1J2)/GOLF IV (1J1)/LEON (1M1)/NEW BEETLE (9C1, 1C1)/OCTAVIA I (1U2)/TOLEDO II (1M2)

Technical Specification Matrix

CTE20005R 是 AUDI 專用的轉向拉桿接頭 (FRONT AXLE RH (C= M14X1.5))。本產品為 OEM 規格替代零件，適配原廠料號。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE RH (C= M14X1.5)
OE 替代料號 (Original Equipment Numbers)
Length	97 mm
Width	38 mm
Height	77 mm
Net Weight	0.4 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH20006	FRONT LOWER ARM REAR	180 407 181 1J0 407 181 1J0 407 181A L1J0 407 181
CBH20008	FRONT LOWER ARM INNER	180 407 182 191 407 182 1J0 407 182 357 407 182 357 407 182F
CBJ19008L	FRONT LOWER LH	1J0 407 365 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D 1J0 407 365H 1J0 407 365J 8Z0 407 365A
CBJ19008LA	FRONT LOWER LH	1J0 407 365 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D 1J0 407 365H 1J0 407 365J 8Z0 407 365A
CBJ19008R	FRONT LOWER RH	1J0 407 366 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D 1J0 407 366H 1J0 407 366J 8Z0 407 366A
CBJ19008RA	FRONT LOWER RH	1J0 407 366 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D 1J0 407 366H 1J0 407 366J 8Z0 407 366A
CRE20012	D= M14X1.5 , C= M16X1.5	1J0 422 807 1J0 422 807A 1J0 422 807B 1J0 422 807E 1J0 422 821B
CS-2009	FRONT LOWER LH/ RH	1J0 407 151 1J0 407 151A 1J0 407 151B 1J0 407 151C 1J0 407 353
CS-2020L	FRONT LOWER LH	1J0 407 151A 1J0 407 151A S1 1J0 407 151B 1J0 407 151B S1 1J0 407 151C 1J0 407 151C S1 1J0 407 365A 1J0 407 365B 1J0 407 365C 1J0 407 365D CS-2009+CBJ19008LA
CS-2020R	FRONT LOWER RH	1J0 407 151A 1J0 407 151A S2 1J0 407 151B 1J0 407 151B S2 1J0 407 151C 1J0 407 151C S2 1J0 407 366A 1J0 407 366B 1J0 407 366C 1J0 407 366D CS-2009+CBJ19008RA
CSL19019L	FRONT AXLE LH	1J0 411 315D
CSL19019R	FRONT AXLE RH	1J0 411 316D
CSL20013	FRONT (A= 105.5MM)	1J0 411 315H 1J0 411 315K
CSL20017	FRONT (A= 105MM)	1J0 411 315 1J0 411 315B 1J0 411 315C 1J0 411 315E 1J0 411 315G 1J0 411 315J 1JD 411 315
CSL20019	REAR AXLE LH/ RH	1J0 505 466B
CSR20002L	FRONT AXLE LH	1J0 422 803B 1J0 422 803H 1JD 422 803
CSR20002R	FRONT AXLE RH	1J0 422 804B 1J0 422 804H 1JD 422 804
CTE20005L	FRONT AXLE LH (C= M14X1.5)
CTE20005R	FRONT AXLE RH (C= M14X1.5)
