Tie Rod End
Technical Specification Matrix

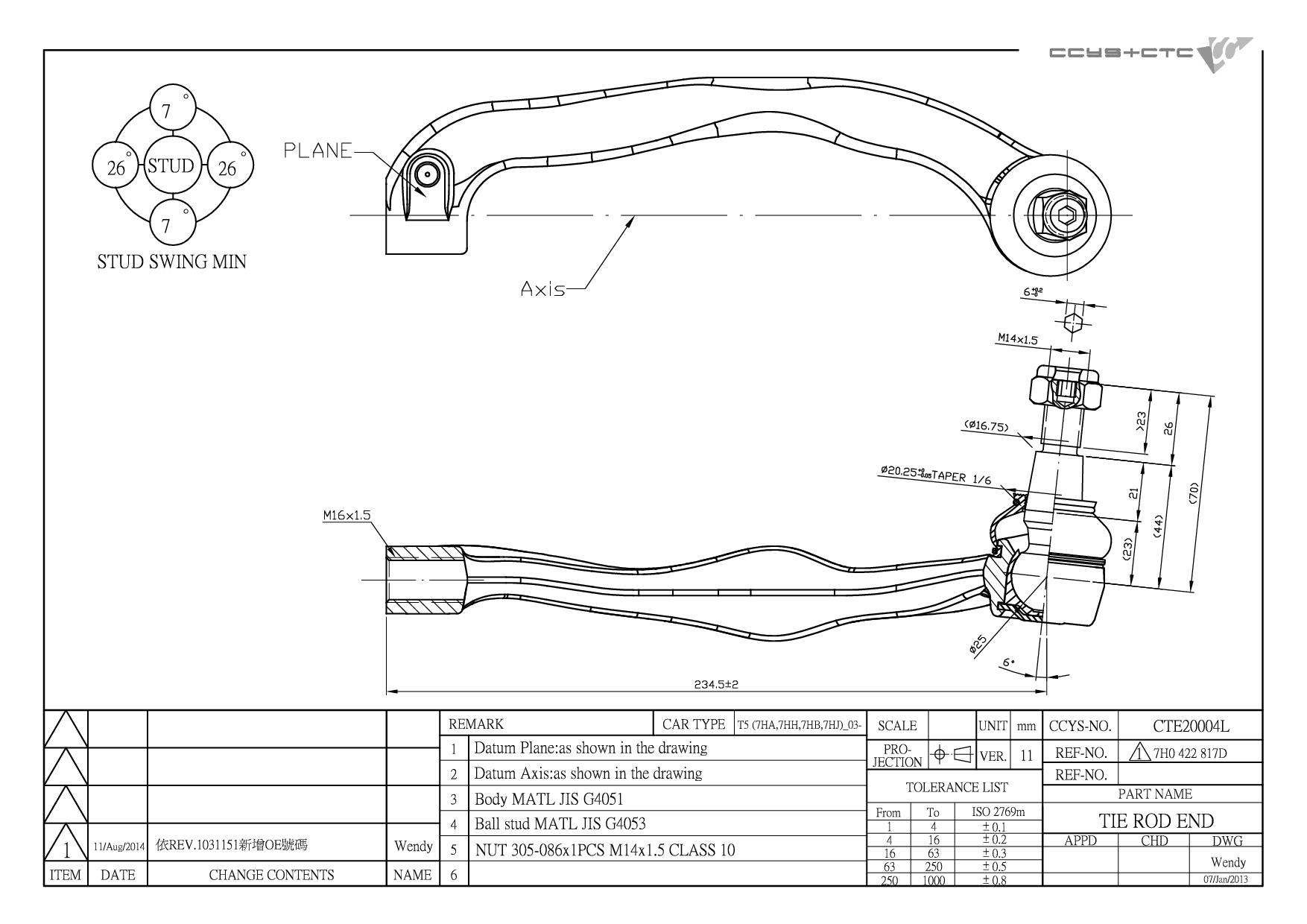

CTE20004L 是 VOLKSWAGEN 專用的 轉向拉桿接頭 (FRONT AXLE LH (C= M16X1.5))。
本產品為 OEM 規格替代零件，適配原廠料號 7E0 422 817,7H0 422 817A,7H0 422 817B,7H0 422 817C,7H0 422 817D。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Tie Rod End |
| Position | FRONT AXLE LH (C= M16X1.5) |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 258 mm |
| Width | 71 mm |
| Height | 98 mm |
| Net Weight | 1.1 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBJ20009 | FRONT LOWER LH/ RH |
|
|
 |
CBJ20009A | FRONT LOWER LH/ RH |
|
|
 |
CRE20010 | D= M16X1.5 , C= M16X1.5 |
|
|
 |
CSL20015 | FRONT (A= 260MM) |
|
|
 |
CSR20001L | FRONT AXLE LH |
|
|
 |
CSR20001R | FRONT AXLE RH |
|
|
 |
CTE20004L | FRONT AXLE LH (C= M16X1.5) |
|
|
 |
CTE20004R | FRONT AXLE RH (C= M16X1.5) |
|
| Model (Year) |
|---|
|
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) | CARAVELLE TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) | TRANSPORTER / CARAVELLE | EUROVAN | CARAVELLE TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ) | TRANSPORTER / CARAVELLE TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ TRANSPORTER T6 Van (SGA, SGH, SHA, SHH) |
