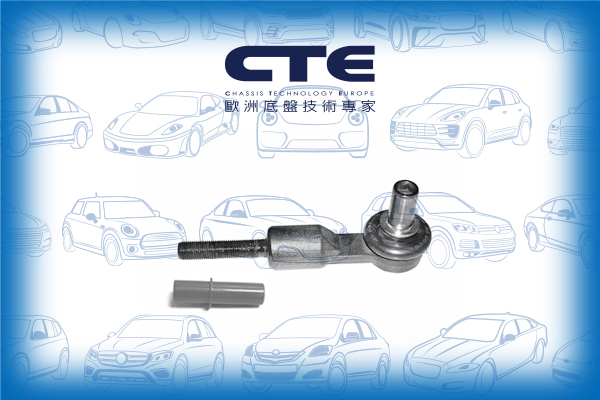

Tie Rod End

AUDI / A4 B5 (8D2) | A4 / S4 / Tie Rod End / FRONT AXLE LH/ RH (C= M14X1.5) / CTE19001

Technical Specification Matrix

CTE19001 是 AUDI 專用的轉向拉桿接頭 (FRONT AXLE LH/ RH (C= M14X1.5))。本產品為 OEM 規格替代零件，適配原廠料號 4D0 419 811A。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE LH/ RH (C= M14X1.5)
OE 替代料號 (Original Equipment Numbers)	4D0 419 811A
Length	177 mm
Width	48 mm
Height	73 mm
Net Weight	0.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH19008	FRONT LOWER ARM INNER	4D0 407 182E 4D0 407 182G 8E0 407 182A
CBH19009	FRONT LOWER ARM OUTER	4D0 407 181F 4D0 407 181H
CS-1904	FRONT LOWER LH/ RH	4D0 407 151A 4D0 407 151B 4D0 407 151C 4D0 407 151D 4D0 407 151E 4D0 407 151F 4D0 407 151G 4D0 407 151H 4D0 407 151J 4D0 407 151K 4D0 407 151N 4D0 407 151P 4D0 407 155P 8D0 407 151D 8D0 407 151E 8D0 407 151F
CSL19011L	FRONT LH (A= 90MM)	4D0 411 317G 4D0 411 317J 8D0 411 317D
CSL19011LA	FRONT LH (A= 90MM)	4D0 411 317G 4D0 411 317J 8D0 411 317D
CSL19011R	FRONT RH (A= 90MM)	4D0 411 318G 4D0 411 318J 8D0 411 318D
CSL19011RA	FRONT RH (A= 90MM)	4D0 411 318G 4D0 411 318J 8D0 411 318D
CTE19001	FRONT AXLE LH/ RH (C= M14X1.5)	4D0 419 811A
CTE19002	FRONT AXLE LH/ RH (C= M14X1.5)	4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811
CTE19003	FRONT AXLE LH/ RH (C= M14X1.5)	8E0 419 811B

Model (Year)
A4 B5 (8D2) \| A4 / S4 A4 B5 Avant (8D5) A4 B6 (8E2) \| A4 / S4 A4 B6 Avant (8E5) \| A4 / S4 A4 B6 Convertible (8H7) \| A4 / S4 A4 B7 Convertible (8HE) A6 C5 (4B2, 4B4) \| A6 / S6 A6 C5 Avant (4B5, 4B6) \| A6 / S6 A8 D2 (4D2, 4D8) \| A8 / S8 A8 D3 (4E2, 4E8) \| A8 / S8 \| A8L ALLROAD C5 (4BH)

Model (Year)
PASSAT B5 (3B2) PASSAT B5.5 (3B3) PASSAT B5.5 Variant (3B6)

Model (Year)
SUPERB I (3U4)
