Tie Rod End

VOLVO / 850 (854) / Tie Rod End / FRONT AXLE LH (C= M14X2.0) / CTE17003L

Name: CTE17003L
Brand: CTE
SKU: CTE17003L
Price: 602.00 TWD
Availability: InStock

Volvo 940II (944) For left- hand drive vehicles. Model year from 1995

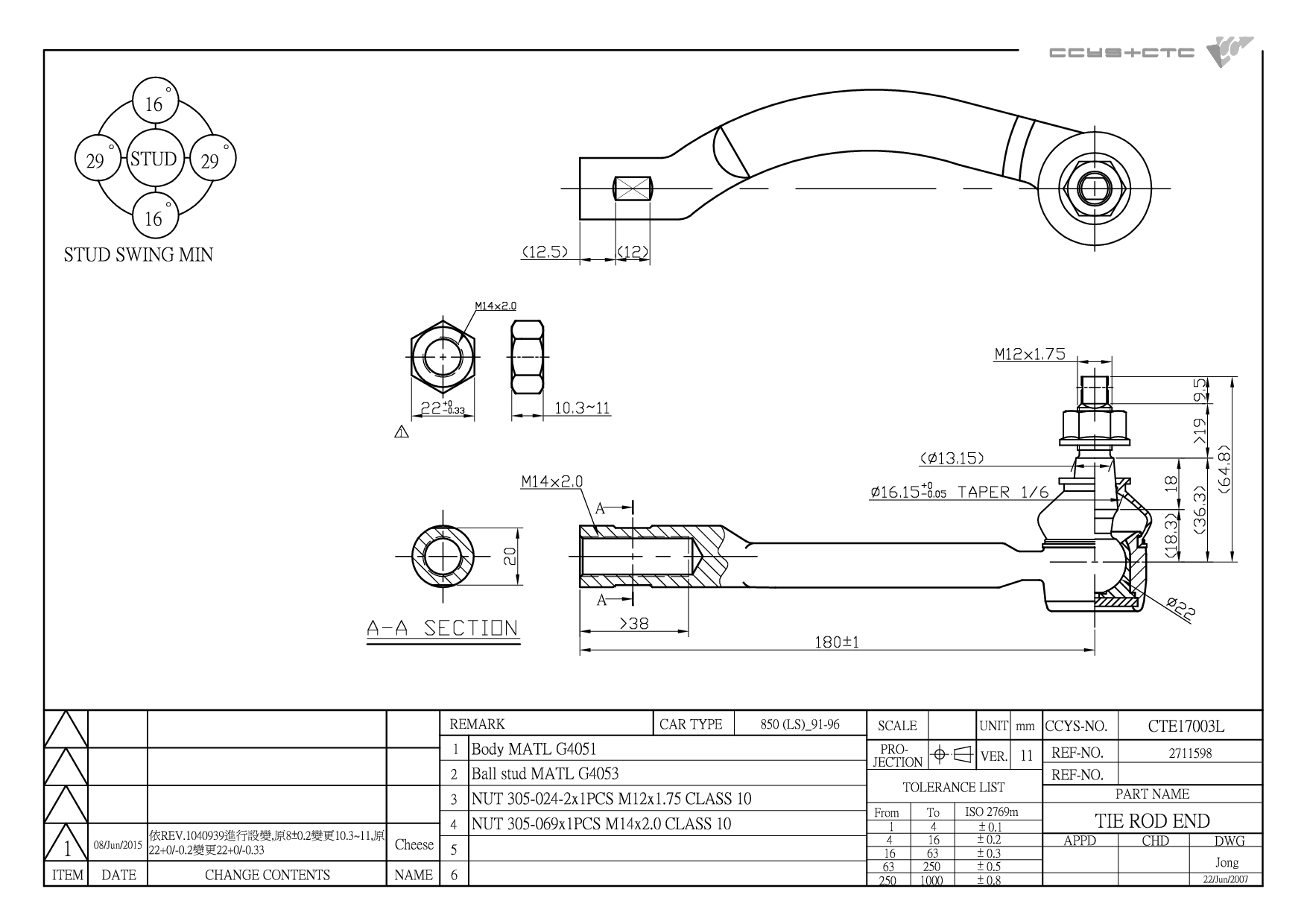

Technical Specification Matrix

CTE17003L 是 VOLVO 專用的轉向拉桿接頭 (FRONT AXLE LH (C= M14X2.0))。本產品為 OEM 規格替代零件，適配原廠料號 22715985,271598,2715985,3546267。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE LH (C= M14X2.0)
OE 替代料號 (Original Equipment Numbers)	22715985 271598 2715985 3546267
Length	202 mm
Width	56 mm
Height	85 mm
Net Weight	0.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH17026	FRONT LOWER ARM INNER	271631 6800251
CBH17028	FRONT LOWER ARM INNER	272227 272273 2722734 272274 2722742 272336 272337 2723385 2723393 277227 8628493 8628494 8628497 86284973 8628498 86284981 9140976 9140977 9186730 9186731 9492291 9492292 9492532 9492533 9492673 9492674 9492916 9492917
CBJ17006A	FRONT LOWER LH/ RH	271591 2715910 3546524
CRE17008	D= M14X2.0 , C= M14X1.5	31476353 3546266 35462662
CRE17017	D= M14X2.0 , C= M16X1.5	9191410 91914101 9191410SK1
CS-1709L	FRONT LOWER LH	271091 271628 271901 3516182 3546701 8628491 8628495 9140095 9169533 9492287 9492530 9492671 9492914
CS-1709R	FRONT LOWER RH	271629 271902 272092 3516183 3546702 8628492 8628496 9140096 9169534 9492288 9492531 9492672 9492915
CS-1710L	FRONT LOWER LH	272273 2722734 272336 2723385 8628493 8628497 86284973 9140976 9186730 9492291 9492532 9492673 9492916
CS-1710R	FRONT LOWER RH	272227 272274 2722742 272337 2723393 277227 8628494 8628498 86284981 9140977 9186731 9492292 9492533 9492674 9492917
CSL17005	FRONT (A= 303MM)	1387860 1387860-8 30647921 30647995 30714686 8626031 8628703 8628726 9140767 9492804 9492804-1
CTE17003L	FRONT AXLE LH (C= M14X2.0)	22715985 271598 2715985 3546267
CTE17003R	FRONT AXLE RH (C= M14X2.0)	271599 2715993 3546268

Model (Year)
850 (854) 850 Estate (855) 940 (944) 940 II (944) 940 II Estate (945) 940 Kombi (945) 960 (964) 960 II (964) 960 II Estate (965) C70 I Convertible (873) C70 I Coupe (872) S70 (874) S90 I (964) V70 I (875, 876) V90 I Estate (965) XC70 I Cross Country (295) \| V70 XC
