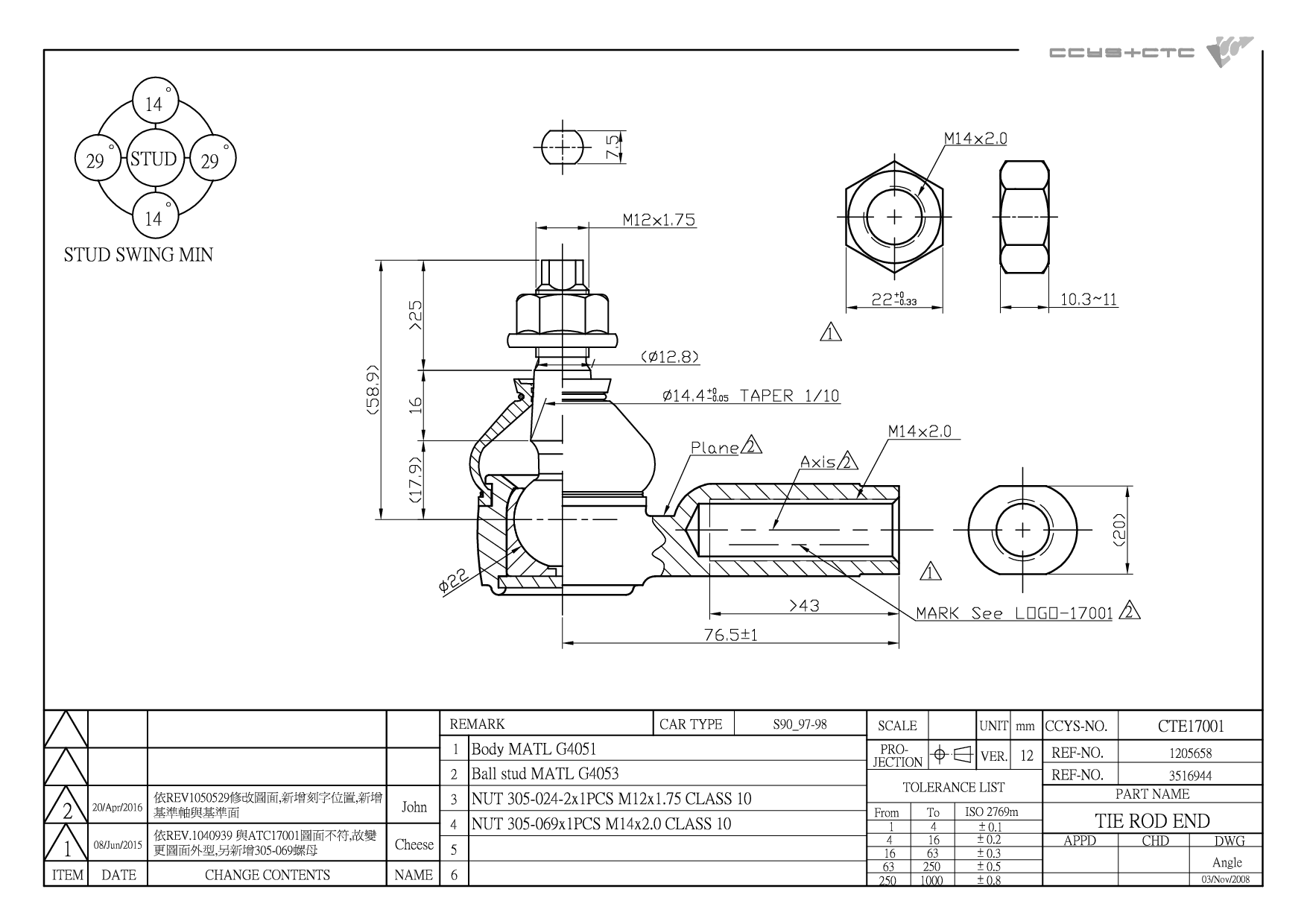

Tie Rod End

VOLVO / 240 (P242, P244) / Tie Rod End / FRONT AXLE LH/ RH (C= M14X2.0) / CTE17001

Technical Specification Matrix

CTE17001 是 VOLVO 專用的轉向拉桿接頭 (FRONT AXLE LH/ RH (C= M14X2.0))。本產品為 OEM 規格替代零件，適配原廠料號 1205658,1271701,1329675,271701,2717015,3516944,35169440。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE LH/ RH (C= M14X2.0)
OE 替代料號 (Original Equipment Numbers)	1205658 1271701 1329675 271701 2717015 3516944 35169440
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH17003	FRONT LOWER ARM REAR	1205821 1205825
CBJ17001A	FRONT LOWER LH/ RH	1205811 1273136 1330819 274117
CBJ17002A	FRONT LOWER RH	1273140 1330820 274119
CBJ17003A	FRONT LOWER LH	1228799 1273139 1273143 1273144 1330821 274118 2741189
CRE17003	D= M14X2.0 , C= M20X1.5	012729471 1272947
CRE17004	D= M14X2.0 , C= M16X1.5	1205659
CRE17014	D= M14X2.0 , C= M14X1.5	1387451 9140505
CS-1701L	FRONT LOWER LH	1205680 1229923
CS-1701R	FRONT LOWER RH	1205686 1229925
CSL17001	FRONT (A= 141.8MM)	1206667 1206667 S1
CTE17001	FRONT AXLE LH/ RH (C= M14X2.0)	1205658 1271701 1329675 271701 2717015 3516944 35169440

Model (Year)
240 (P242, P244) 240 Kombi (P245) 260 (P262, P264) 260 Coupe (P262) 260 Estate (P265) 740 (744) 740 Kombi (745) 760 (704, 764) 760 Kombi (704, 765) 780 (782) 940 (944) 940 II (944) 940 II Estate (945) 940 Kombi (945) 960 (964) 960 II (964) 960 II Estate (965) 960 Kombi (965) S90 I (964) V90 I Estate (965)
