Tie Rod End

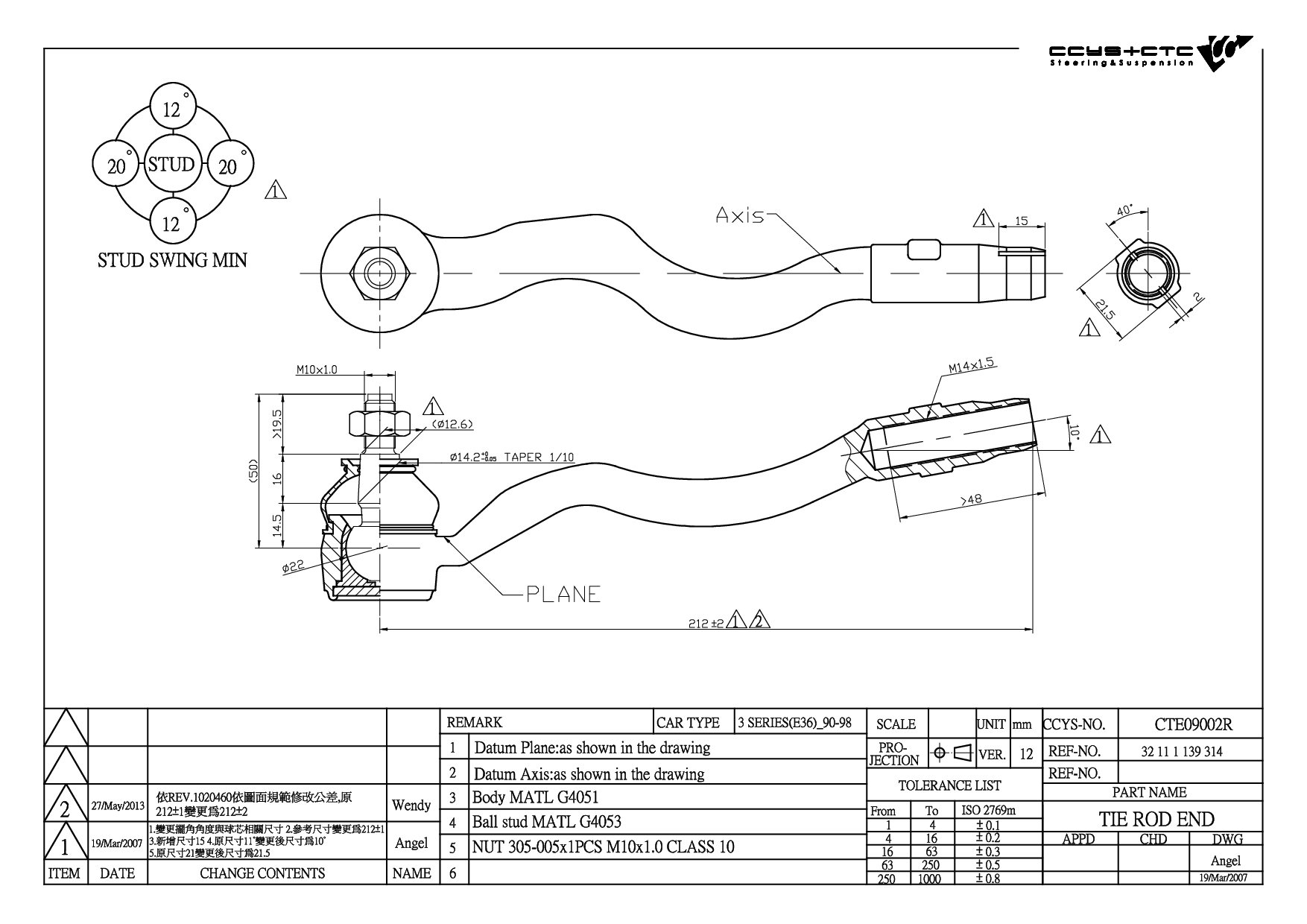

BMW / 3 (E36) / Tie Rod End / FRONT AXLE RH (C= M14X1.5) / CTE09002R

Technical Specification Matrix

CTE09002R 是 BMW 專用的轉向拉桿接頭 (FRONT AXLE RH (C= M14X1.5))。本產品為 OEM 規格替代零件，適配原廠料號 1 139 314,32 11 1 139 314。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE RH (C= M14X1.5)
OE 替代料號 (Original Equipment Numbers)	1 139 314 32 11 1 139 314
Length	232 mm
Width	67 mm
Height	40 mm
Net Weight	0.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH09010	FRONT LOWER ARM LH REAR	31 12 4 004 359 4 004 359
CBH09011	FRONT LOWER ARM RH REAR	31 12 4 004 360 4 004 360
CBJ09001	FRONT LOWER LH/ RH INNER	1 126 253 1 126 296 1 139 131 31 12 1 126 253 31 12 1 126 296 31 12 1 139 131
CBJ09003	FRONT LOWER LH/ RH OUTER	1 096 685 1 140 398 31 12 1 096 685 31 12 1 140 398 31 12 6 758 510 6 758 510
CBJ09006	FRONT LOWER LH/ RH OUTER	31 12 1 096 685 31 12 1 140 398 31 12 6 758 510
CRE09002	D= M14X1.5 , C= M18X1.5	1 136 133 32 11 1 136 133
CS-909L	FRONT LOWER LH	1 094 275 1 136 529 1 140 399 1 140 957 2 339 997 31 12 1 094 275 31 12 1 136 529 31 12 1 140 399 31 12 1 140 957 31 12 2 339 997 31 12 6 758 513 31 12 6 758 515 6 758 513 6 758 515
CS-909R	FRONT LOWER RH	1 094 276 1 136 530 1 140 400 1 140 958 2 339 996 31 12 1 094 276 31 12 1 136 530 31 12 1 140 400 31 12 1 140 958 31 12 2 339 996 31 12 6 758 514 31 12 6 758 516 6 758 514 6 758 516
CSL09003	FRONT (A= 70MM)	1 091 764 1 127 689 1 128 737 31 35 1 091 764 31 35 1 127 689 31 35 1 128 737
CSL09005	REAR (A= 60MM)	1 131 131 1 135 307 33 55 1 131 131 33 55 1 135 307
CSR09002L	FRONT AXLE LH	1 139 315 1 139 317 32 11 1 139 315 32 11 1 139 317
CSR09002R	FRONT AXLE RH	1 139 316 32 11 1 139 316
CTE09002L	FRONT AXLE LH (C= M14X1.5)	1 139 313 32 11 1 139 313
CTE09002R	FRONT AXLE RH (C= M14X1.5)	1 139 314 32 11 1 139 314

Model (Year)
3 (E36) 3 Compact (E36) 3 Convertible (E36) 3 Coupe (E36) 3 Touring (E36) Z3 Coupe (E36) Z3 Roadster (E36)

Model (Year)
B3 (E36) B3 Convertible (E36) B3 Coupe (E36) B3 Touring (E36) B6 (E36) B7 Coupe (E24) B8 (E36) B8 Convertible (E36) B8 Coupe (E36) B8 Touring (E36) B9 Coupe (E24)
