Tie Rod End

NISSAN / BLUEBIRD SYLPHY II (G11) | ALMERA / Tie Rod End / FRONT AXLE RH (C= M12X1.25) / CTE06007R

Name: CTE06007R
Brand: CTE
SKU: CTE06007R
Price: 602.00 TWD
Availability: InStock

NISSAN MARCH III (K12) 1.0 16V Construction Year from 09.2007 Engine Code CR12DE

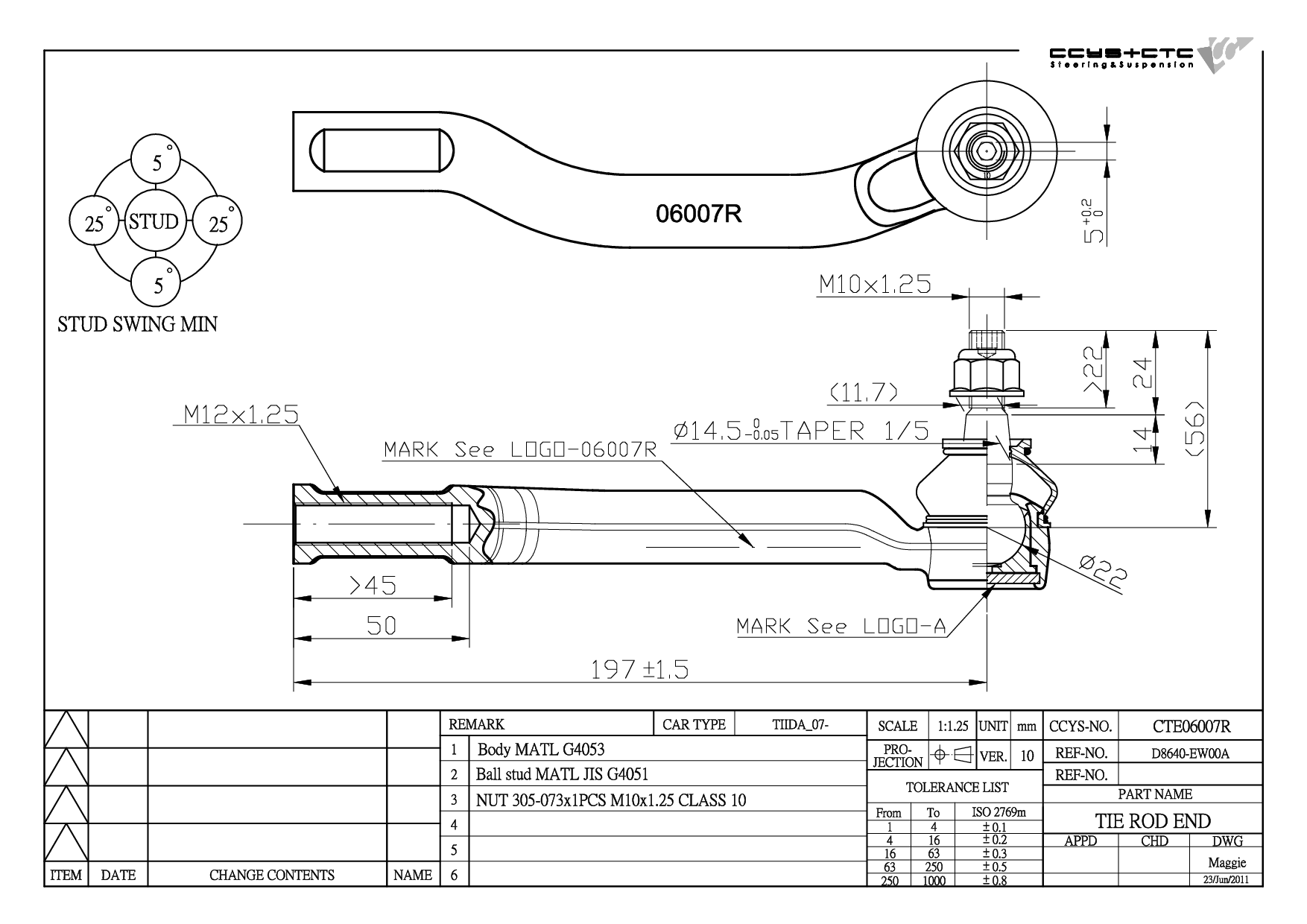

Technical Specification Matrix

CTE06007R 是 NISSAN 專用的轉向拉桿接頭 (FRONT AXLE RH (C= M12X1.25))。本產品為 OEM 規格替代零件，適配原廠料號 48640-3U025,48647-1U61A,D8640-EW00A,MQ700060。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE RH (C= M12X1.25)
OE 替代料號 (Original Equipment Numbers)	48640-3U025 48647-1U61A D8640-EW00A MQ700060
Length	217 mm
Width	48 mm
Height	85 mm
Net Weight	0.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06049	FRONT LOWER ARM INNER	54560-AX600 82 00 183 569 850040613
CBJ06023	FRONT LOWER LH/ RH	1N12-34-300 1N12-34-350 1N13-34-300 1N13-34-350 1N14-34-300 1N14-34-350 1N15-34-300 1N15-34-350 1N16-34-300 1N16-34-350 40160-ED000 40160-ED00A 54500-1FU0A 54500-1FU0B 54500-1JY0A 54500-1KA0A 54500-1KA0B 54500-1KA1B 54500-1KK0A 54500-1KK0B 54500-5SN1A 545
CRE06076	FRONT AXLE LH/ RH	48521-3U025
CS-641L	FRONT LOWER LH	1N12-34-350 1N13-34-350 1N14-34-350 1N15-34-350 1N16-34-350 54501-1FU0A 54501-1FU0B 54501-1JY0A 54501-ED00A 54501-EL000 54501-EL00A 54501-EL00D 54501-ET000 54501-EW000 54501-JX31A 54501-JX31B MQ702524 MQ703553 MQ704128 MQ711150 MQ711566
CS-641R	FRONT LOWER RH	1N12-34-300 1N13-34-300 1N14-34-300 1N15-34-300 1N16-34-300 54500-1FU0A 54500-1FU0B 54500-1JY0A 54500-ED00A 54500-EL000 54500-EL00A 54500-EL00D 54500-ET000 54500-EW000 54500-JX31A 54500-JX31B MQ702523 MQ703552 MQ704127 MQ711149 MQ711565
CTE06007L	FRONT AXLE LH (C= M12X1.25)	48520-3U025 48527-1U61A D8520-EW00A MQ700059
CTE06007R	FRONT AXLE RH (C= M12X1.25)	48640-3U025 48647-1U61A D8640-EW00A MQ700060

Model (Year)
BLUEBIRD SYLPHY II (G11) \| ALMERA CUBE (Z11) CUBE (Z12) LIVINA / GRAND LIVINA (L10, L11) MICRA C+C III (K12) \| MARCH MICRA III (K12) \| MARCH NOTE (E11, NE11) NOTE VAN (E11) NV200 / EVALIA Bus NV200 Van TIIDA Hatchback (C11) TIIDA Hatchback (C11) \| LATIO \| VERSA TIIDA Saloon (SC11) \| TIIDA LATIO

Model (Year)
TIIDA Hatchback (C11) TIIDA Saloon (C11)
