Tie Rod End

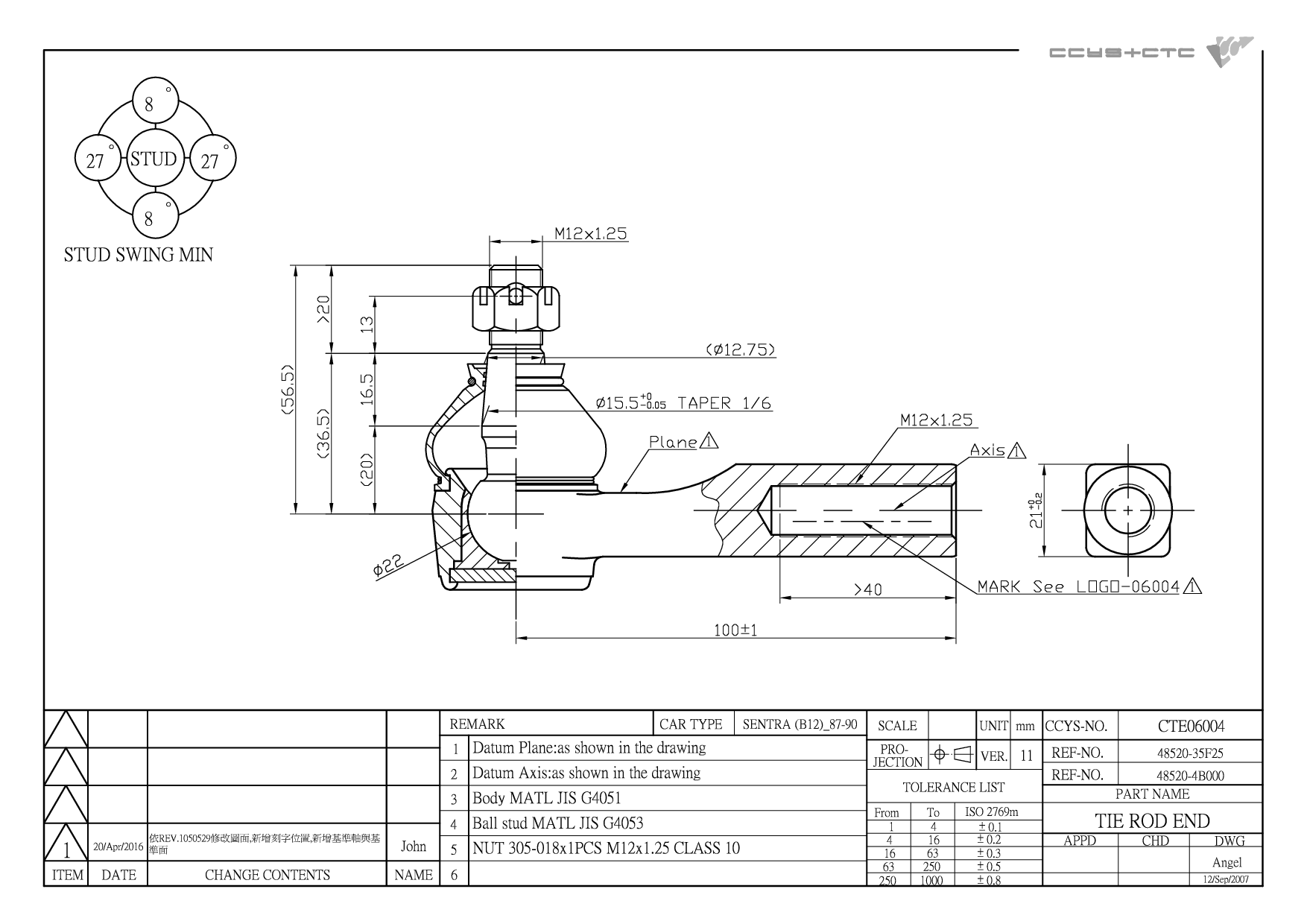

NISSAN / BLUEBIRD (T72 , T12, U12) / Tie Rod End / FRONT AXLE LH/ RH (C= M12X1.25) / CTE06004

Technical Specification Matrix

CTE06004 是 NISSAN 專用的轉向拉桿接頭 (FRONT AXLE LH/ RH (C= M12X1.25))。本產品為 OEM 規格替代零件，適配原廠料號 48520-35F25,48520-4B000,48520-50A00,48520-50A25。

PARAMETER	METRIC / VALUE
Designation	Tie Rod End
Position	FRONT AXLE LH/ RH (C= M12X1.25)
OE 替代料號 (Original Equipment Numbers)	48520-35F25 48520-4B000 48520-50A00 48520-50A25
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06006	FRONT LOWER ARM REAR	54570-50A10
CBH06007	FRONT LOWER ARM INNER	54560-50A00 54560-50Y10
CBJ06005	FRONT LOWER LH/ RH	1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600
CRE06009	FRONT AXLE LH/RH INNER	48521-A0300 48521-A03G0 48521-A05G0
CRE06010	D= M12X1.25 , C= M16X1.5	48521-53M00 48521-53M06
CRE06032	FRONT AXLE LH/ RH	15869898 48521-4B000 48521-4Z001
CRE06084	FRONT AXLE LH/ RH	48521-35A00 48521-35A06
CS-606L	FRONT LOWER LH	54501-50A00
CS-606R	FRONT LOWER RH	54500-50A00
CTE06004	FRONT AXLE LH/ RH (C= M12X1.25)	48520-35F25 48520-4B000 48520-50A00 48520-50A25
