Technical Specification Matrix

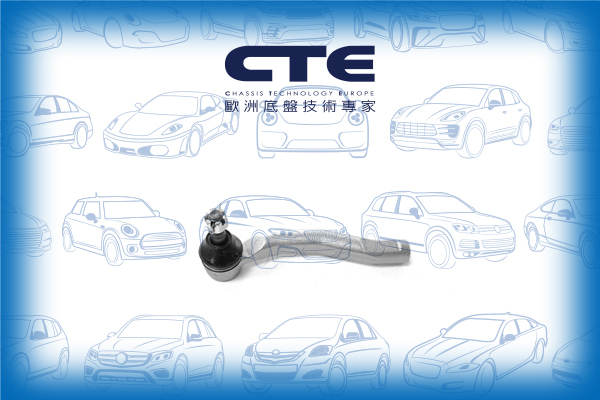

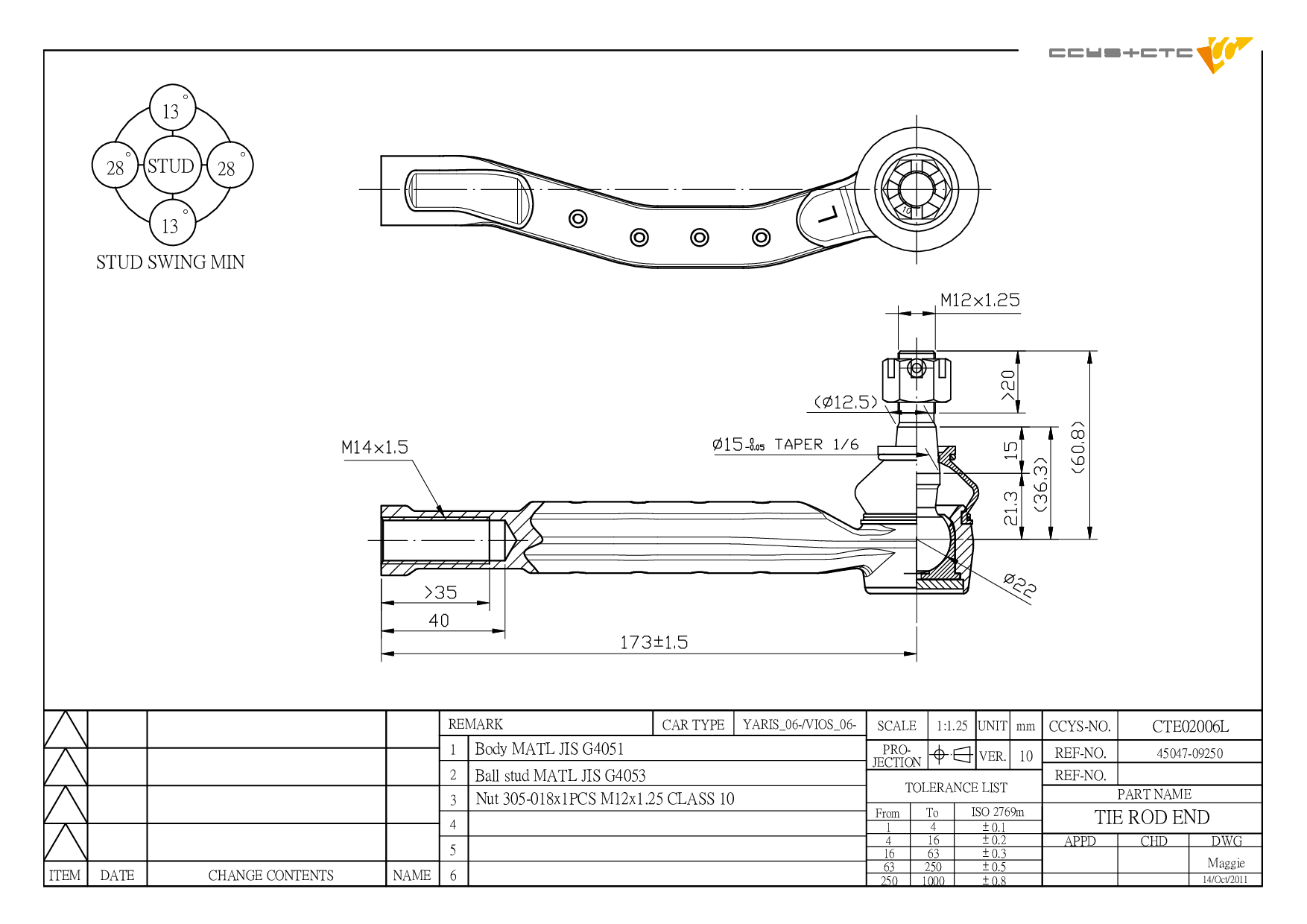

CTE02006L 是 DAIHATSU 專用的 轉向拉桿接頭 (FRONT AXLE LH (C= M14X1.5))。
本產品為 OEM 規格替代零件，適配原廠料號 45047-09220,45047-09250,45047-09301,45047-09540,45047-0D040,45047-59135,45047-59155,45047-59165。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Tie Rod End |
| Position | FRONT AXLE LH (C= M14X1.5) |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 192 mm |
| Width | 45 mm |
| Height | 79 mm |
| Net Weight | 0.6 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH02049 | FRONT LOWER ARM REAR |
|
|
 |
CBH02050 | FRONT LOWER ARM INNER |
|
|
 |
CBJ25003 | FRONT LOWER LH/ RH |
|
|
 |
CRE02072 | D= M14X1.5 , C= M14X1.5 |
|
|
 |
CS-258L | FRONT LOWER LH |
|
|
 |
CS-258R | FRONT LOWER RH |
|
|
 |
CSL02067 | FRONT (A= 360MM) |
|
|
 |
CTE02006L | FRONT AXLE LH (C= M14X1.5) |
|
|
 |

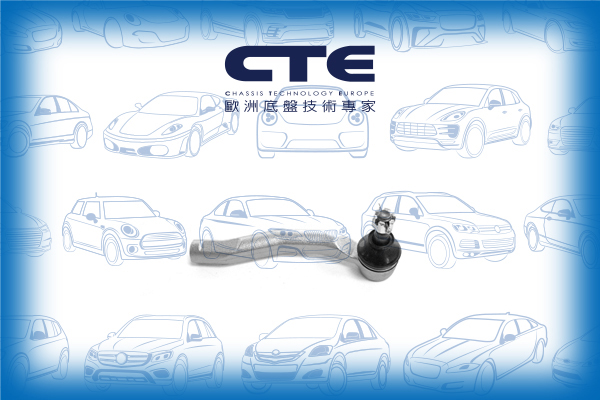

CTE02006R | FRONT AXLE RH (C= M14X1.5) |
|
|
 |

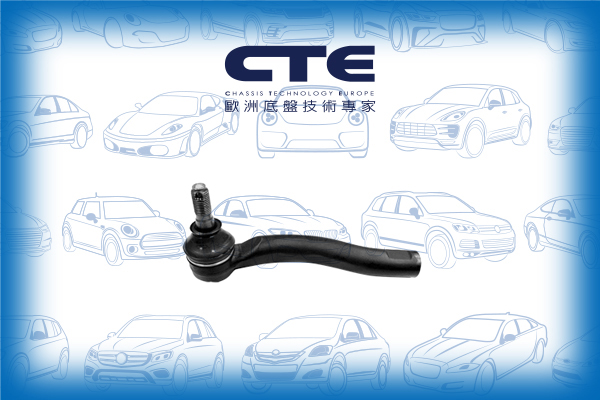

CTE02007L | FRONT LH |
|
|
 |

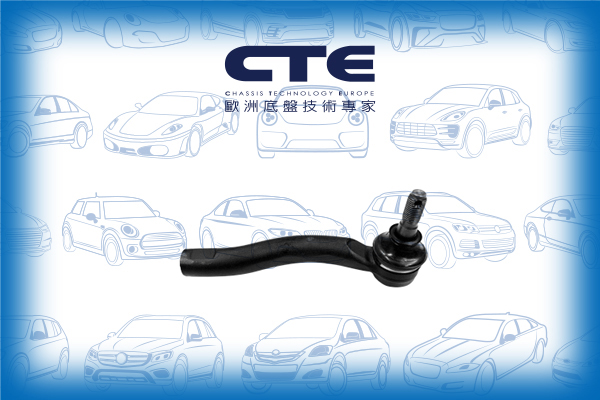

CTE02007R | FRONT RH |
|
| Model (Year) |
|---|
|
CHARADE VIII |
| Model (Year) |
|---|
|
VIOS / SOLUNA VIOS (_P4_) YARIS (_P13_) | YARIS/VITZ | VITZ YARIS (_P9_) | YARIS/VITZ | VITZ YARIS / VIOS Saloon (_P9_) | BELTA YARIS Hatchback Van (_P13_) |
