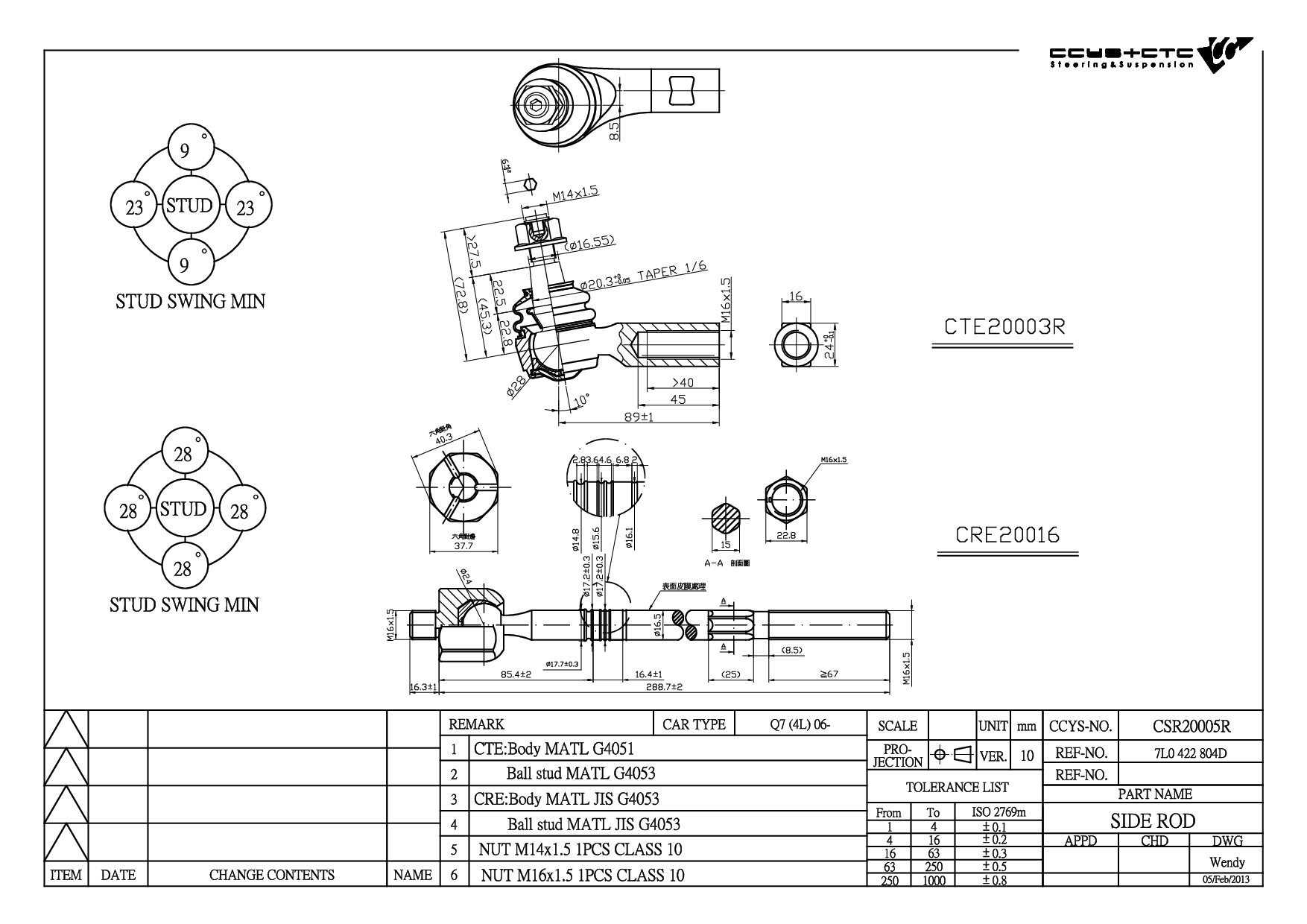

Side Rod
Technical Specification Matrix
CSR20005R 是 VOLKSWAGEN 專用的 轉向橫拉桿 (FRONT AXLE RH)。
本產品為 OEM 規格替代零件，適配原廠料號 2H0 419 803,7L0 422 804 B,7L0 422 804 C,7L0 422 804D,955 347 032 20,955 347 032 21,955 347 032 22。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Side Rod |
| Position | FRONT AXLE RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 0 mm |
| Width | 0 mm |
| Height | 0 mm |
| Net Weight | 1.3 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19049 | REAR UPPER ARM |
|
|
 |
CBH19051 | REAR UPPER ARM |
|
|
 |
CBH20012 | FRONT LOWER ARM INNER |
|
|
 |
CBH20013 | FRONT LOWER ARM OUTER |
|
|
 |
CBH20037 | FRONT AXLE |
|
|
 |
CBH34003 | FRONT UPPER ARM INNER |
|
|
 |
CRE20016 | D= M16X1.5 , C= M16X1.5 |
|
|
 |
CS-1930L | FRONT LOWER LH |
|
|
 |
CS-1930R | FRONT LOWER RH |
|
|
 |
CS-1960L | FRONT LOWER LH |
|
|
 |
CS-1960R | FRONT LOWER RH |
|
|
 |
CS-1995 | REAR UPPER LH/ RH |
|
|
 |
CS-1996L | REAR UPPER LH |
|
|
 |
CS-1996R | REAR UPPER RH |
|
|
 |
CS-3416 | FRONT UPPER LH/RH |
|
|
 |
CS-3456L | REAR LOWER LH |
|
|
 |
CS-3456R | REAR LOWER RH |
|
|
 |
CSL19016 | FRONT (A= 197MM) |
|
|
 |
CSR20005L | FRONT AXLE LH |
|
|
 |
CSR20005R | FRONT AXLE RH |
|
|
 |
CTE20003L | FRONT AXLE LH (C= M16X1.5) |
|
|
 |
CTE20003R | FRONT AXLE RH (C= M16X1.5) |
|
| Model (Year) |
|---|
|
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) AMAROK Platform/Chassis (S1B) AMAROK Platform/Chassis (S1B, S6B, S7B) TOUAREG (7LA, 7L6, 7L7) TOUAREG (7P5, 7P6) TOUAREG VAN (7P5) |
| Model (Year) |
|---|
|
CAYENNE (92A) CAYENNE (9PA) |
| Model (Year) |
|---|
|
Q7 (4LB) |
