Stabilizer Link

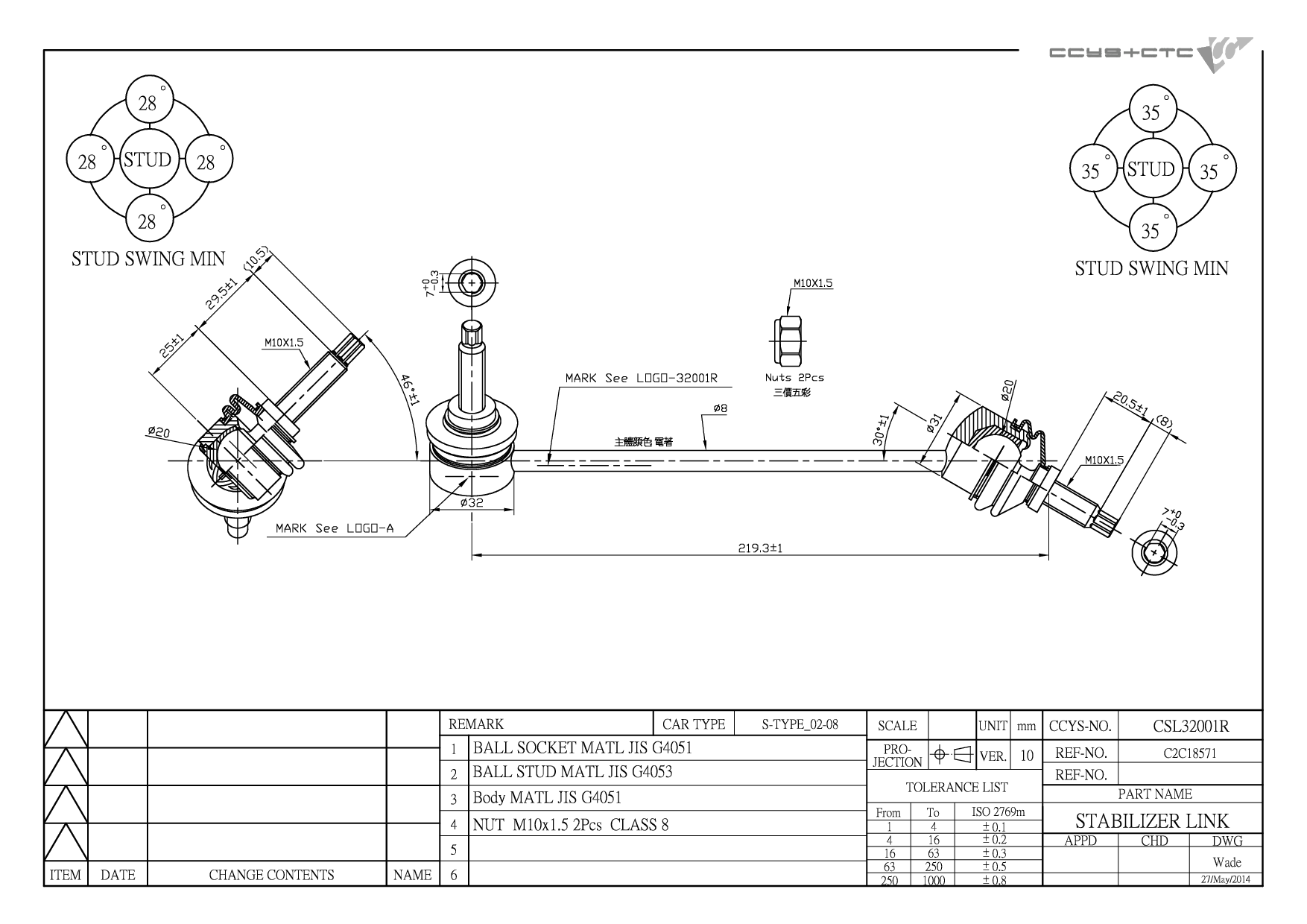

JAGUAR / F-TYPE Convertible (X152) / Stabilizer Link / REAR RH (A= 219.3mm) / CSL32001R

Technical Specification Matrix

CSL32001R 是 JAGUAR 專用的平衡桿拉桿 (REAR RH (A= 219.3mm))。本產品為 OEM 規格替代零件，適配原廠料號 2W935C486BB,2W935C486BD,C2C18571,C2D49528,XR81692,XW4Z-5C486-AB。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR RH (A= 219.3mm)
OE 替代料號 (Original Equipment Numbers)	2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB
Length	263 mm
Width	66 mm
Height	78 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH32010	FRONT LOWER ARM INNER	T2R6092
CRE32001	D= M14X1.5 , C= M16X1.5	8W833A705AA 8X233200AC 8X233200BC C2D21139 C2D28554 C2D44327 C2D47149 C2Z2214 C2Z2215 DW933200AC DW933K651AA GX533L519AA
CS-3204	FRONT LOWER LH/ RH	2W933C256AD 2W933C256AE 2W933C256AF 2W933C256BB 2W933C256BC 8X23-3C256-AC 8X23-3C256-AD C2C13829 C2C15324 C2C1801 C2C20618 C2C21984 C2C26261 C2C26835 C2C36013 C2C36868 C2C39683 C2C6500 C2Z10052 C2Z4457 T2R5102 XR845712
CS-3212L	FRONT UPPER LH	C2P16080 C2P16949 C2P25604 C2P9125
CS-3212R	FRONT UPPER RH	C2P16079 C2P16948 C2P25603 C2P9124
CS-3213L	FRONT LOWER LH	EX533C255AB EX533C255AC EX533C255AD T2R18064 T2R18865 T2R5962
CS-3213R	FRONT LOWER RH	EX533C254AB EX533C254AC EX533C254AD T2R18062 T2R18864 T2R5950
CS-3215L	FRONT LOWER LH	GX533C255AC GX53-3C255-AC T2R7902
CS-3215R	FRONT LOWER RH	GX533C254AC GX53-3C254-AC T2R7878
CSL32001L	REAR LH (A= 219.3MM)	2W935D498BB 2W935D498BD C2C18572 C2D49529 XR81693 XW435D498AB XW4Z-5C487-AB
CSL32001R	REAR RH (A= 219.3MM)	2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB
CSL32002	FRONT (A= 146MM)	2W93-5K483-AC 2W93-5K483-AD 2W93-5K483-CB C2C10793 C2C18573 C2C39468 C2D11879 C2D24220 EX53-5K483-AA GX73-3B438-AA T4N1048 XR822199
CTE32003	REAR AXLE LH/ RH	C2C13835 C2C1802 C2C18419 C2C24305 C2C36985 C2D49813 C2D49814 C2D51041 C2D51042 C2D51043 C2D51044 C2D5361 C2D5992 C2D5993 C2Z3208

Model (Year)
F-TYPE Convertible (X152) F-TYPE Coupe (X152) S-TYPE II (X200) XF I (X250) XF SPORTBRAKE (X250) XJ (X350, X358) XJ (X351) XK II Convertible (X150) XK II Coupe (X150)
