Stabilizer Link

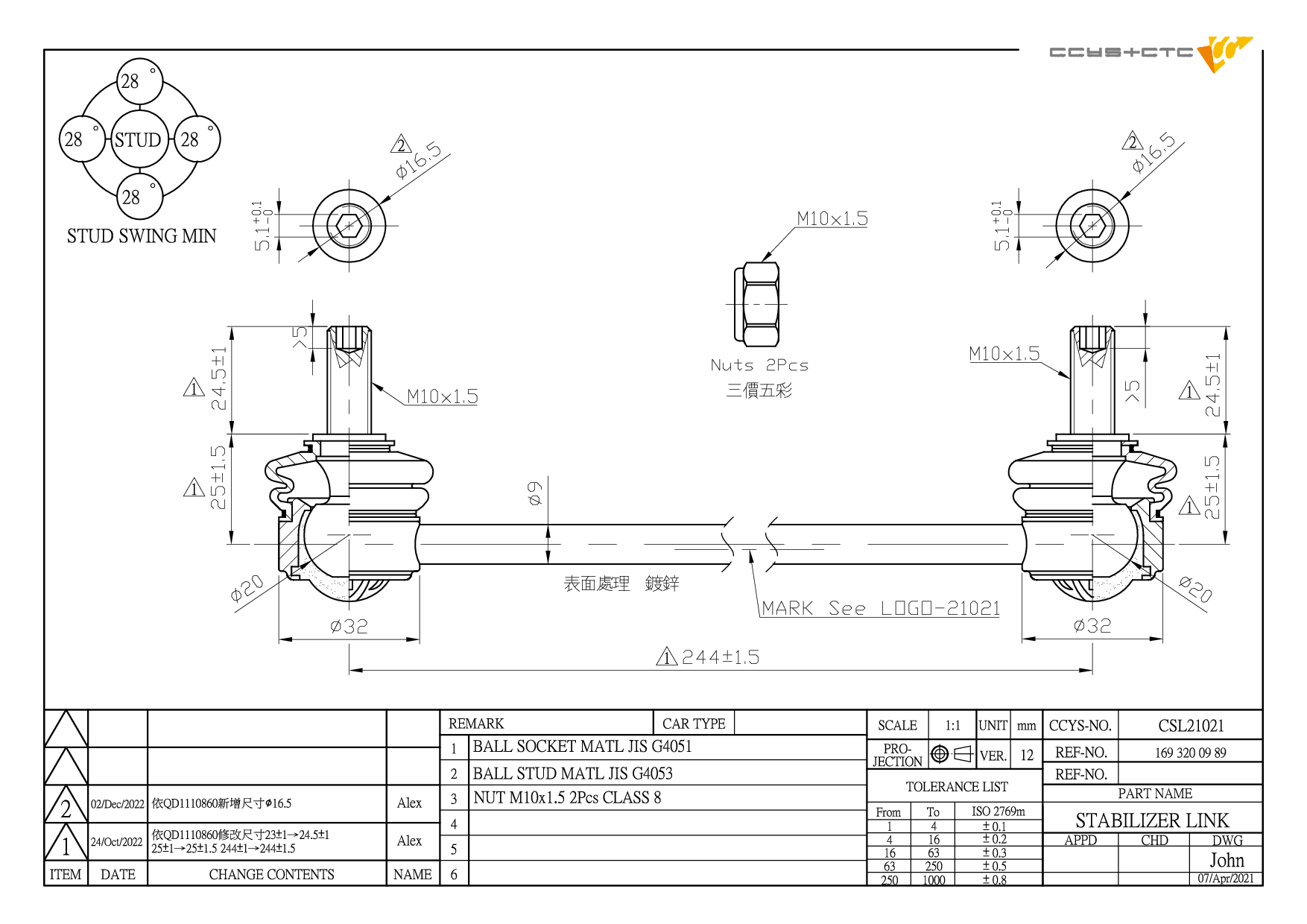

MERCEDES-BENZ / A-CLASS (W169) / Stabilizer Link / FRONT (A= 244mm) / CSL21021

Technical Specification Matrix

CSL21021 是 MERCEDES-BENZ 專用的平衡桿拉桿 (FRONT (A= 244mm))。本產品為 OEM 規格替代零件，適配原廠料號 169 320 09 89,169 320 13 89,A169 320 09 89,A169 320 13 89。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT (A= 244mm)
OE 替代料號 (Original Equipment Numbers)	169 320 09 89 169 320 13 89 A169 320 09 89 A169 320 13 89
Length	282 mm
Width	38 mm
Height	63 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH21010	FRONT LOWER ARM INNER	169 333 00 14 A169 333 00 14
CBH21011	FRONT LOWER ARM INNER	169 333 01 14 A169 333 01 14
CBJ21005A	FRONT LOWER LH/ RH	169 333 00 27 169 333 01 27 169 333 03 27 A169 333 00 27 A169 333 01 27 A169 333 03 27
COS21011	FRONT	169 320 09 89 169 320 13 89 169 330 05 03 169 330 05 07 169 330 06 03 169 330 06 07 169 330 07 07 169 330 08 07 169 330 09 07 169 330 10 07 A169 330 05 03 A169 330 05 07 A169 330 06 03 A169 330 06 07 A169 330 07 07 A169 330 08 07 A169 330 09 07 A169 330 1
CRE21006	FRONT AXLE LH/RH	169 330 04 03 169 330 07 03 A169 330 04 03 A169 330 07 03
CS-2117L	FRONT LOWER LH	169 330 05 07 169 330 07 07 169 330 09 07 A169 330 05 07 A169 330 07 07 A169 330 09 07
CS-2117R	FRONT LOWER RH	169 330 06 07 169 330 08 07 169 330 10 07 A169 330 06 07 A169 330 08 07 A169 330 10 07
CSL21021	FRONT (A= 244MM)	169 320 09 89 169 320 13 89 A169 320 09 89 A169 320 13 89
CTE21001L	FRONT AXLE LH (C= M14X1.5)	169 330 05 03 A169 330 05 03
CTE21001R	FRONT AXLE RH (C= M14X1.5)	169 330 06 03 A169 330 06 03
