Stabilizer Link

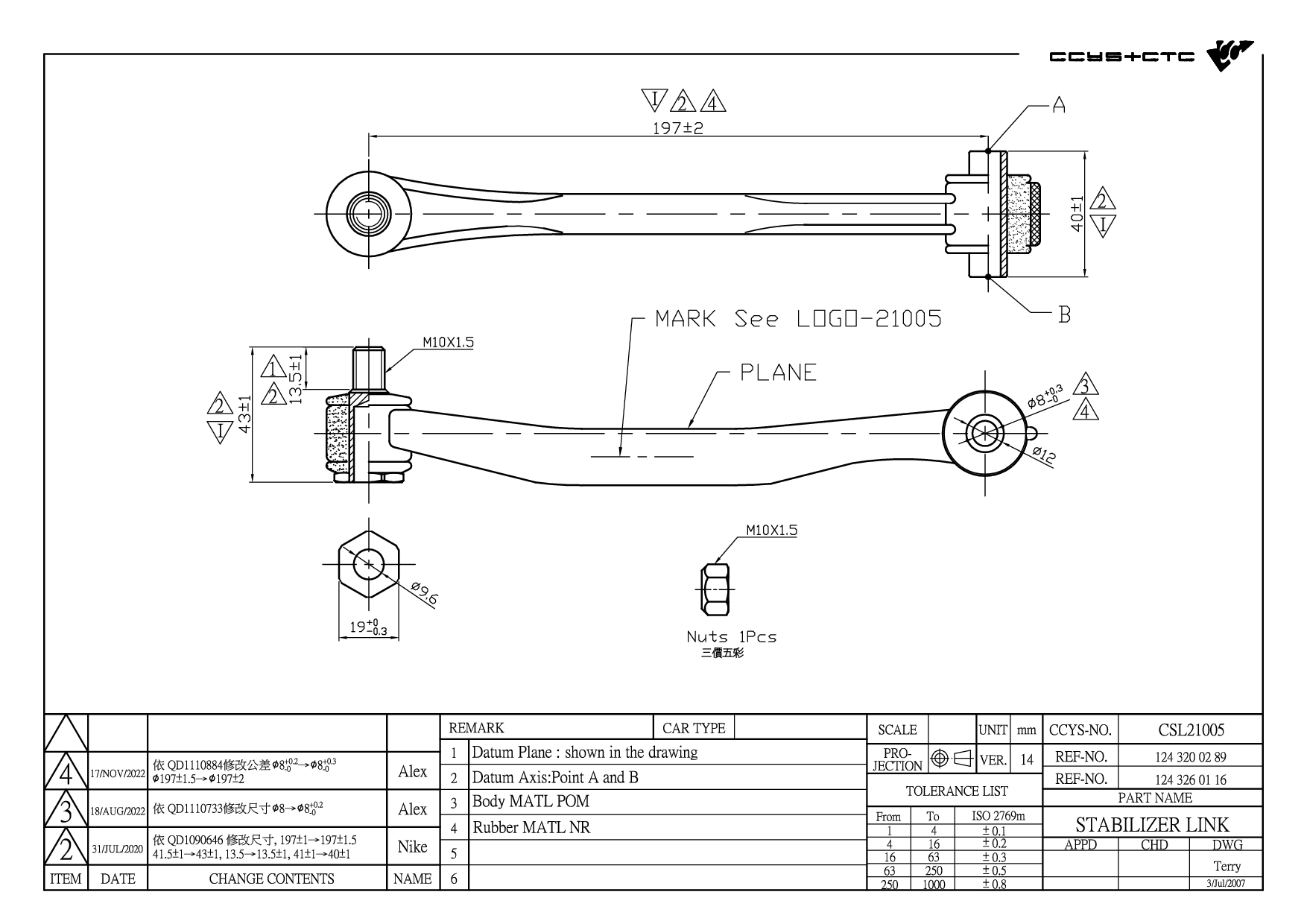

MERCEDES-BENZ / 124 Convertible (A124) / Stabilizer Link / REAR (A= 197mm) / CSL21005

Technical Specification Matrix

CSL21005 是 MERCEDES-BENZ 專用的平衡桿拉桿 (REAR (A= 197mm))。本產品為 OEM 規格替代零件，適配原廠料號 124 320 02 64,124 320 02 89,124 320 04 89,124 326 01 16,A124 320 02 89。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR (A= 197mm)
OE 替代料號 (Original Equipment Numbers)	124 320 02 64 124 320 02 89 124 320 04 89 124 326 01 16 A124 320 02 89
Length	226 mm
Width	44 mm
Height	40 mm
Net Weight	0.1 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH21007	FRONT UPPER ARM INNER
CBH21015	REAR AXLE LOWER	124 352 43 65 201 352 87 65 201 352 88 65 A124 352 43 65 A201 352 87 65 A201 352 88 65
CBJ21002	FRONT LOWER LH/ RH	05099237AA 05099237AB 202 333 00 27 210 330 00 35 210 330 04 27 210 333 04 27 211 330 03 35 220 330 06 35 310 333 04 27 5099237AA 5099237AB A202 333 00 27 A210 330 00 35 A210 330 04 27 A210 333 04 27 A211 330 03 35 A220 330 06 35 A310 333 04 27 K05099237A
CS-2104L	FRONT UPPER LH	202 330 36 07 202 330 48 07 208 330 04 07 208 330 13 07 210 330 22 07 210 330 25 07 210 330 50 07 210 330 87 07
CS-2104R	FRONT UPPER RH	202 330 37 07 202 330 49 07 208 330 05 07 208 330 14 07 210 330 23 07 210 330 26 07 210 330 51 07 210 330 88 07
CS-2106	REAR AXLE LH/ RH	124 350 42 06 201 350 39 06 201 350 43 06 201 350 44 06 201 350 47 06 201 350 56 06 210 350 33 06 A124 350 42 06 A201 350 39 06 A201 350 43 06 A201 350 44 06 A201 350 47 06 A201 350 56 06 A210 350 33 06 K05099785AA

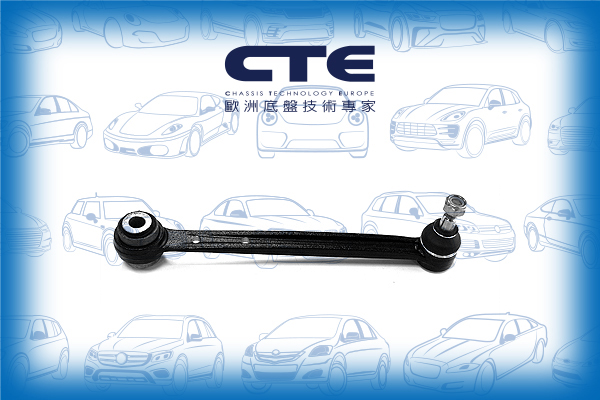

CS-2122	REAR LOWER LH/ RH	210 350 21 53 A210 350 21 53
CSL21005	REAR (A= 197MM)	124 320 02 64 124 320 02 89 124 320 04 89 124 326 01 16 A124 320 02 89

Model (Year)
124 Convertible (A124) 124 Coupe (C124) 124 Saloon (W124) 124 T-Model (S124) 190 (W201) C-CLASS (W202) C-CLASS T-Model (S202) CLK (C208) CLK Convertible (A208) E-CLASS (W124) E-CLASS (W210) E-CLASS Convertible (A124) E-CLASS Coupe (C124) E-CLASS T-Model (S124) E-CLASS T-Model (S210) SL (R129) SLK (R170) SLK (R171)
