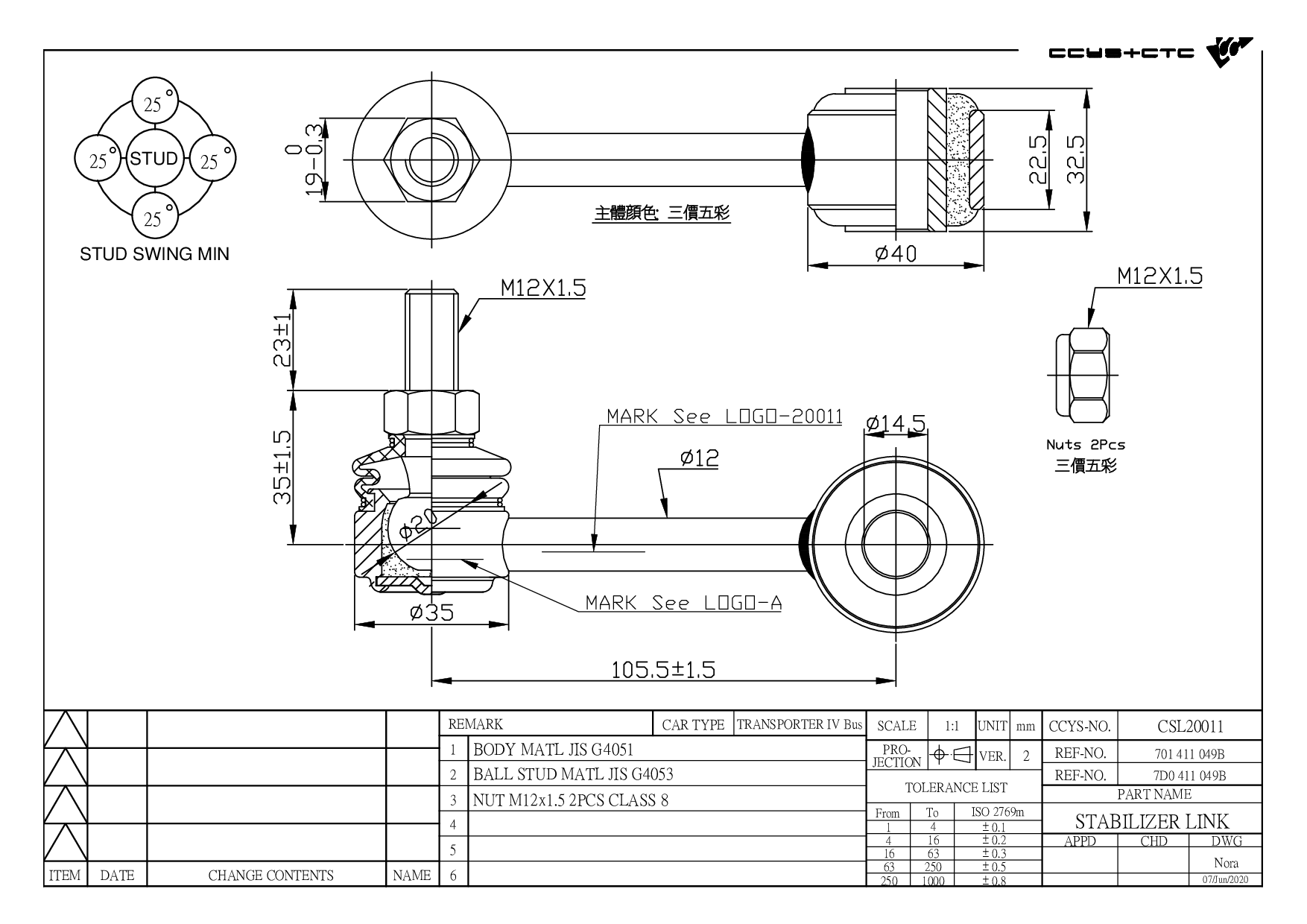

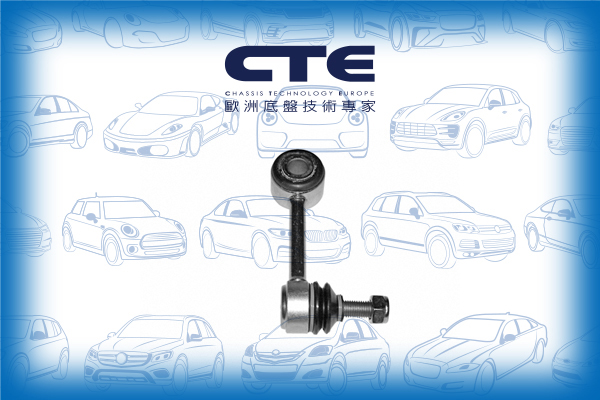

Stabilizer Link

VOLKSWAGEN / TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | EUROVAN / CARAVELLE / TRANSPORTER | TRANSPORTER / CARAVELL / Stabilizer Link / FRONT (A= 105.5mm) / CSL20011

Technical Specification Matrix

CSL20011 是 VOLKSWAGEN 專用的平衡桿拉桿 (FRONT (A= 105.5mm))。本產品為 OEM 規格替代零件，適配原廠料號 701 411 049B,7D0 411 049B。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT (A= 105.5mm)
OE 替代料號 (Original Equipment Numbers)	701 411 049B 7D0 411 049B
Length	144 mm
Width	33 mm
Height	78 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBJ20010	FRONT UPPER LH/ RH	701 407 187 701 407 187A 701 407 187B
CBJ20011A	FRONT LOWER LH/ RH	701 407 361 701 407 361B
CBJ20012A	FRONT LOWER LH/ RH	7D0 407 361

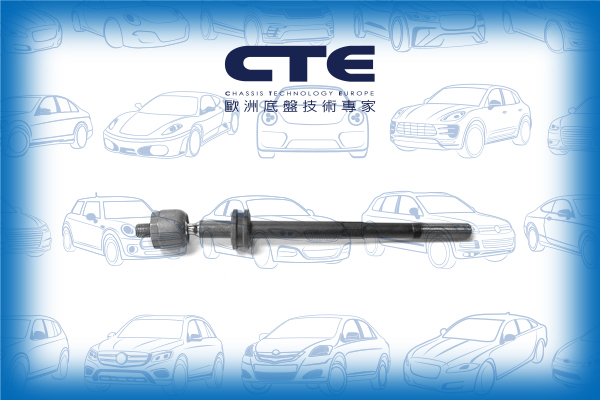

CRE20011	D= M16X1.5 , C= M14X1.5	701 419 804C 701 419 810A 701 419 821C 702 419 803B 702 419 803C 702 419 821B 702 419 821C
CRE20021	FRONT AXLE LH/RH	701 419 821
CRE20026	FRONT AXLE LH/RH	701 419 803 701 419 803A 701 419 803C

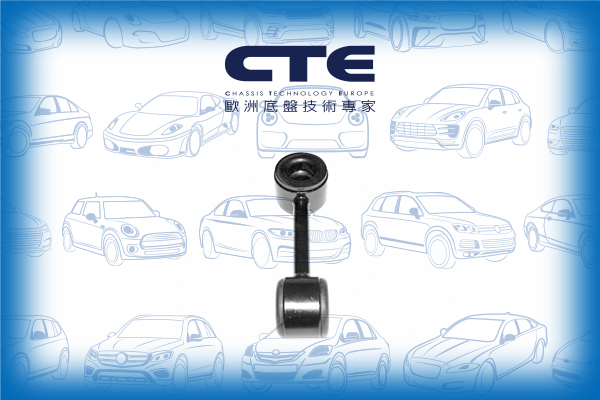

CSL20008	FRONT (A= 109MM)	701 411 049 7D0 411 049
CSL20011	FRONT (A= 105.5MM)	701 411 049B 7D0 411 049B

Model (Year)
TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) \| EUROVAN / CARAVELLE / TRANSPORTER \| TRANSPORTER / CARAVELL TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) \| EUROVAN
