Stabilizer Link

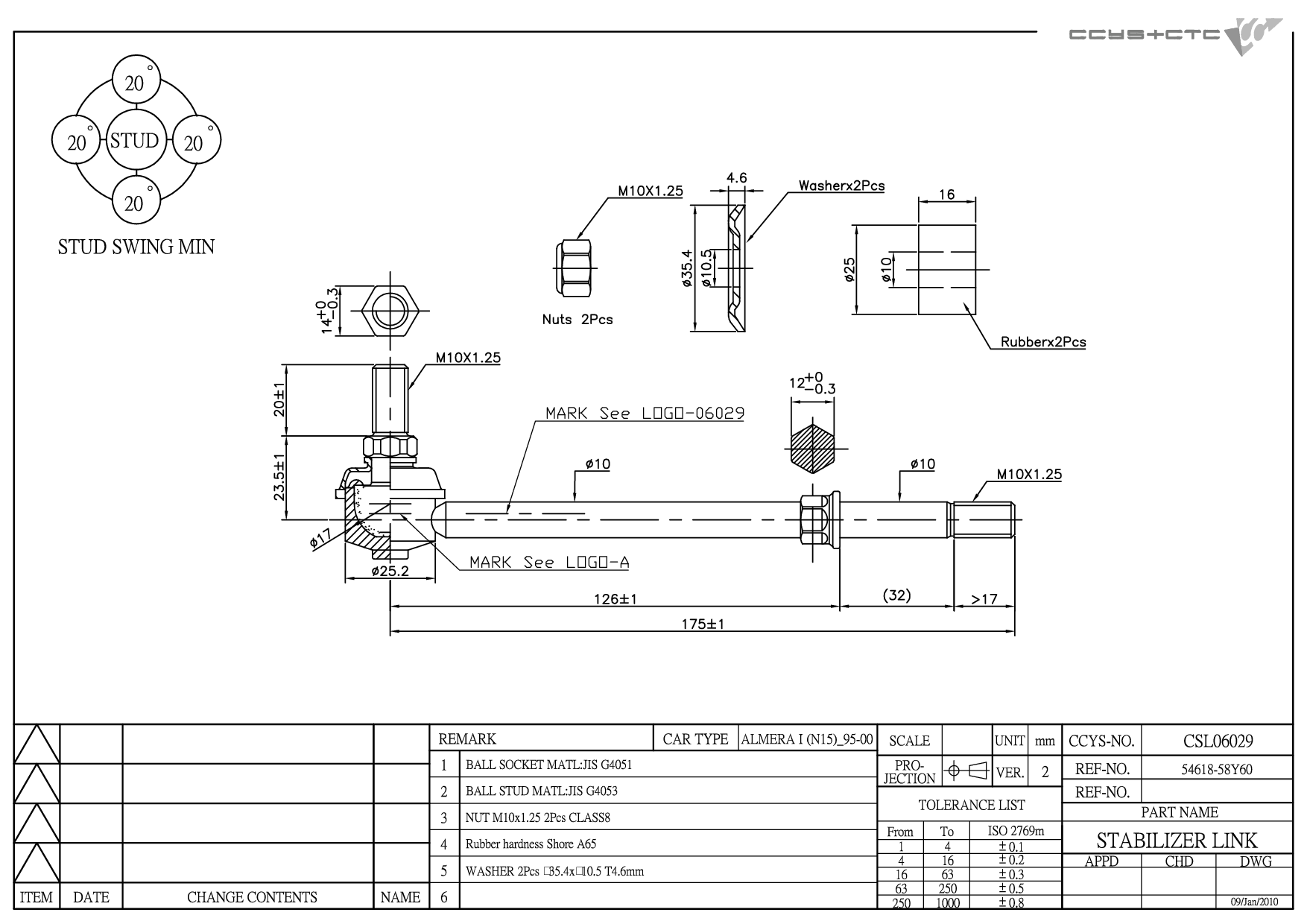

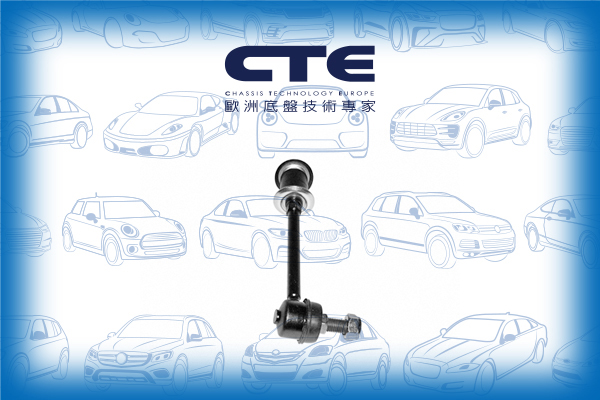

NISSAN / 100NX (B13) / Stabilizer Link / REAR (A= 175mm) / CSL06029

Technical Specification Matrix

CSL06029 是 NISSAN 專用的平衡桿拉桿 (REAR (A= 175mm))。本產品為 OEM 規格替代零件，適配原廠料號 54618-58Y10,54618-58Y20,54618-58Y21,54618-58Y60。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR (A= 175mm)
OE 替代料號 (Original Equipment Numbers)	54618-58Y10 54618-58Y20 54618-58Y21 54618-58Y60
Length	190 mm
Width	31 mm
Height	54 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

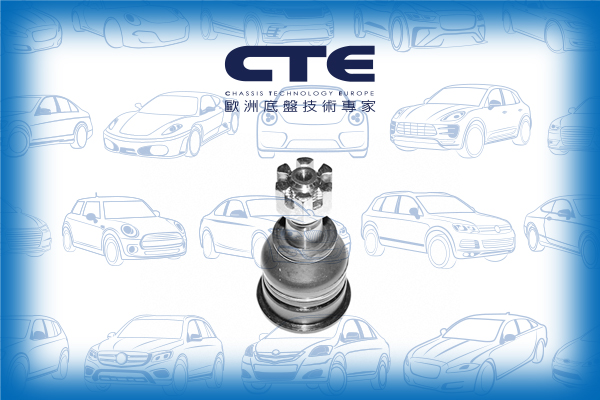

CBJ06006	FRONT LOWER LH/ RH	1N00-99-356 40160-00001 40160-0M010 40160-0M020 40160-0M060 40160-50Y00 40160-50Y02 40160-50Y0R 40160-50Y10 40160-50Y20 40160-52Y00 40160-52Y10 40160-52Y20 40160-52Y60 40160-60Y00 40160-60Y10 40160-60Y20 40160-69Y00 40160-69Y10 40160-F4200 40160-Y02G0 401

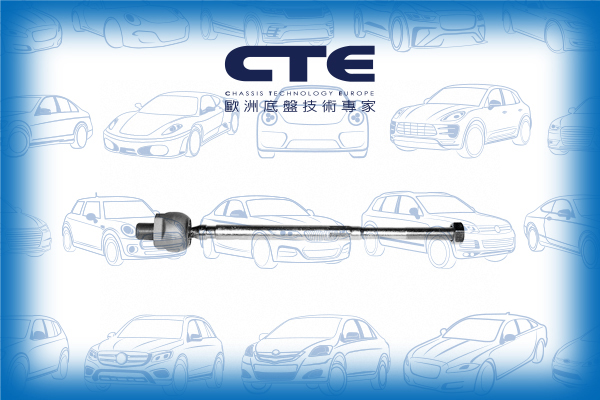

CRE06007	D= M12X1.25 , C= M16X1.0	48521-50Y00 48521-50Y25 48521-50Y26 48521-50Y27 48521-Y02G0
CRE06032	FRONT AXLE LH/ RH	15869898 48521-4B000 48521-4Z001

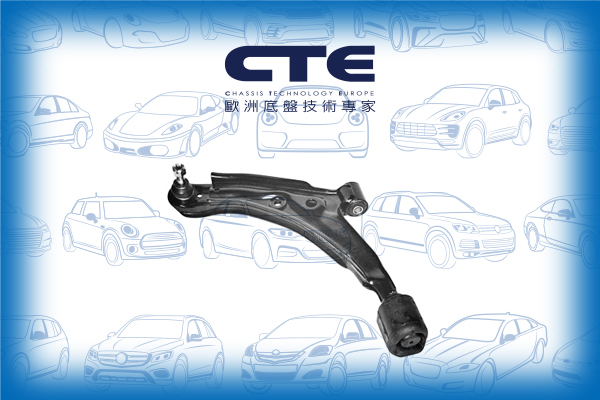

CS-607L	FRONT LOWER LH	54501-50Y10 54501-52Y10 54501-52Y15 54501-52Y60 54501-69Y10

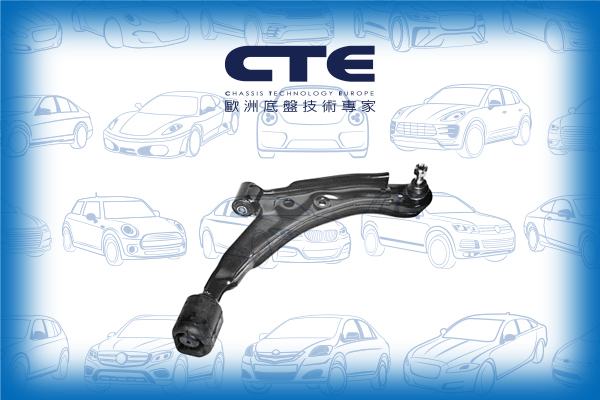

CS-607R	FRONT LOWER RH	54500-50Y10 54500-52Y10 54500-52Y15 54500-52Y60 54500-69Y10
CSL06027	REAR (A= 165MM)	54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10
CSL06029	REAR (A= 175MM)	54618-58Y10 54618-58Y20 54618-58Y21 54618-58Y60
