Stabilizer Link

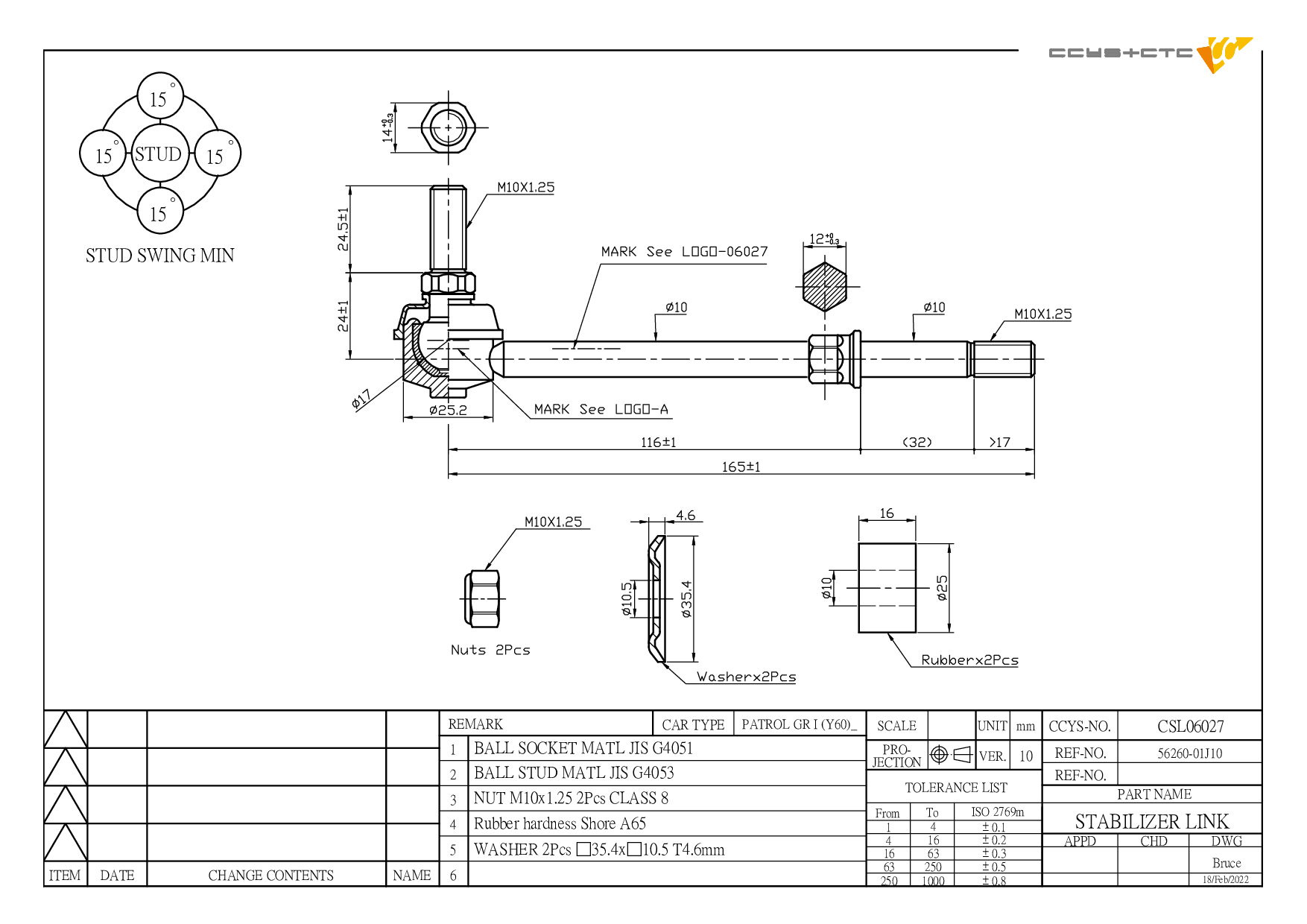

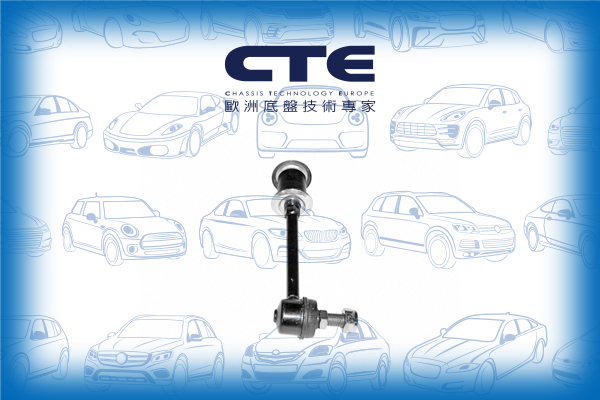

NISSAN / 100NX (B13) / Stabilizer Link / REAR (A= 165mm) / CSL06027

Technical Specification Matrix

CSL06027 是 NISSAN 專用的平衡桿拉桿 (REAR (A= 165mm))。本產品為 OEM 規格替代零件，適配原廠料號 54618-50J10,54618-50J11,54618-50J20,54618-50J21,54618-50J60,56260-01J10。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR (A= 165mm)
OE 替代料號 (Original Equipment Numbers)	54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10
Length	180 mm
Width	31 mm
Height	60 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

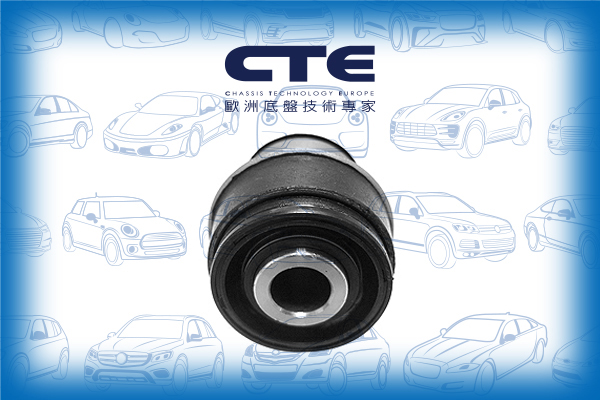

CBH06027	FRONT UPPER ARM OUTER (ROTATING SLEEVE)	54541-90J02
CBJ06005	FRONT LOWER LH/ RH	1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600

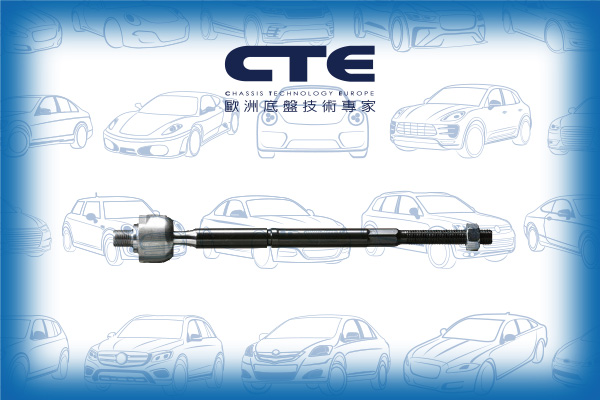

CRE06032	FRONT AXLE LH/ RH	15869898 48521-4B000 48521-4Z001

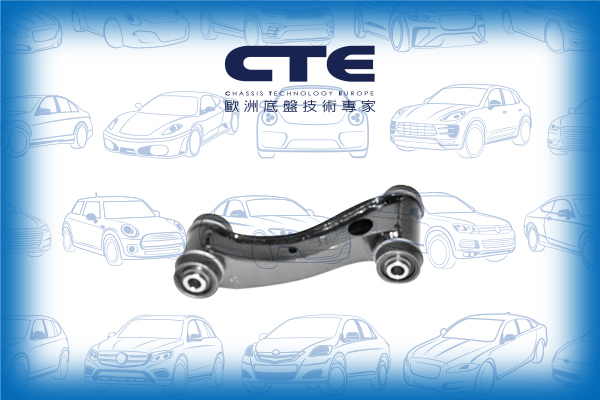

CS-630L	FRONT UPPER LH	54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21

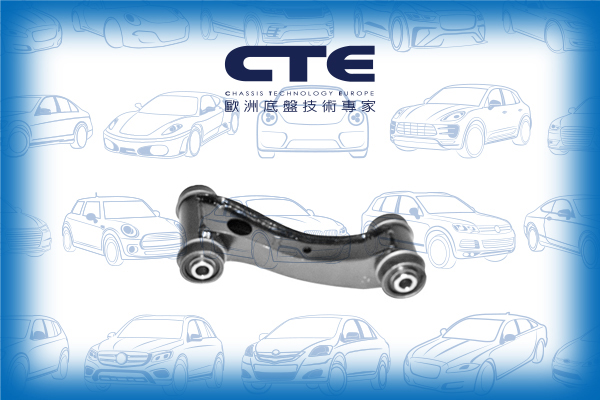

CS-630R	FRONT UPPER RH	54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21

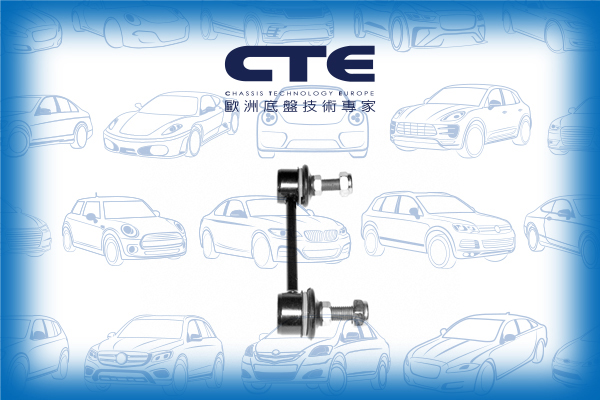

CSL06008	REAR (A= 116MM)	15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575
CSL06027	REAR (A= 165MM)	54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10

Model (Year)
100NX (B13) PATROL GR IV (Y60, GR) \| SAFARI PATROL GR V Platform/Chassis (Y61) PATROL GR V Wagon (Y61) \| SAFARI PATROL III/2 Station Wagon (W260) PRIMERA (P10) PRIMERA Hatchback (P10) PRIMERA Traveller (W10) SUNNY III (N14, B13) \| SENTRA \| PULSAR SUNNY III Hatchback (N14) \| SENTRA SUNNY III Liftback (N14)

Model (Year)
G20
