Stabilizer Link

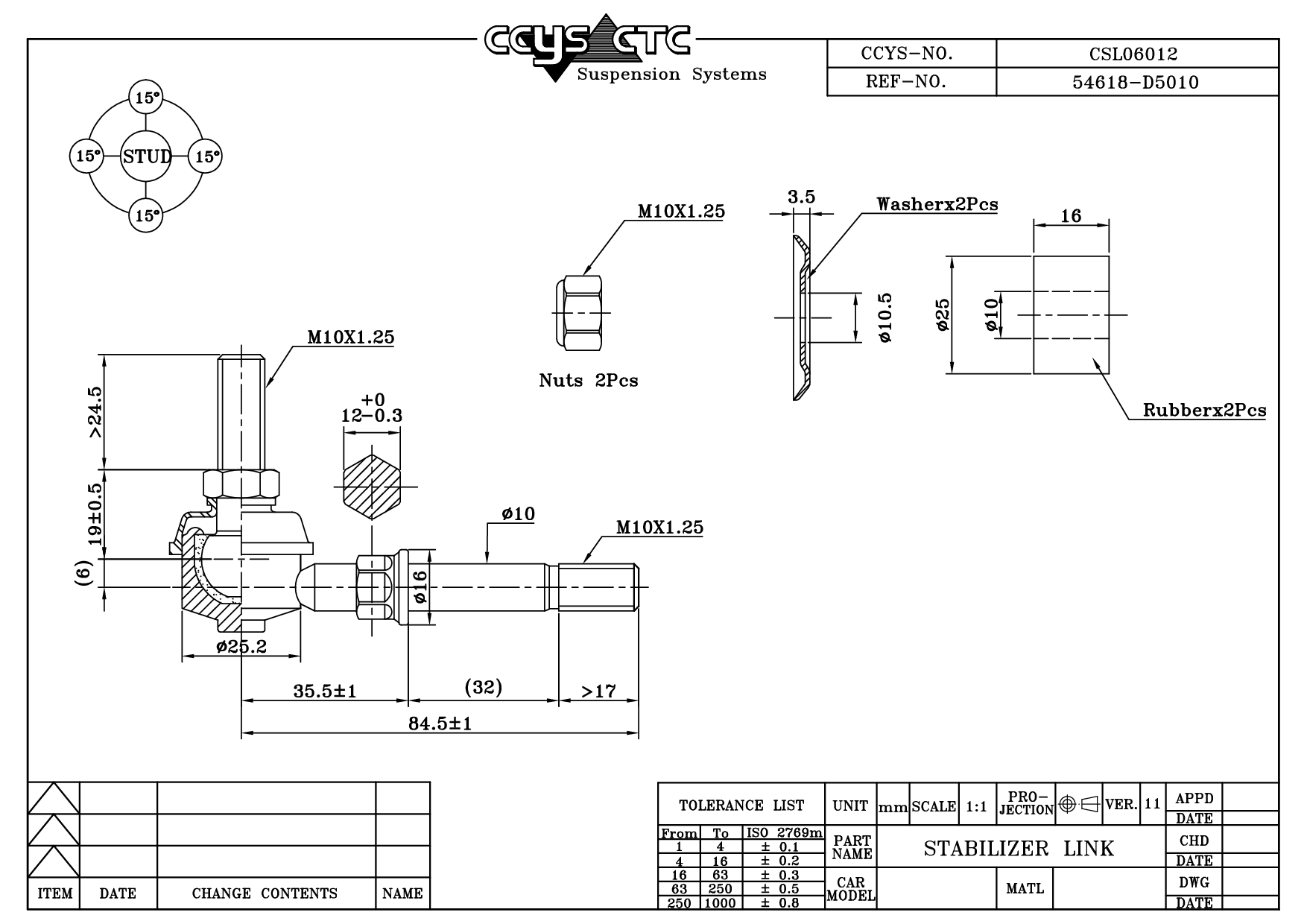

NISSAN / ALMERA I (N15) | PULSAR / Stabilizer Link / FRONT (A= 84.5mm) / CSL06012

Technical Specification Matrix

CSL06012 是 NISSAN 專用的平衡桿拉桿 (FRONT (A= 84.5mm))。本產品為 OEM 規格替代零件，適配原廠料號 54618-D5010,54618-D5015。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT (A= 84.5mm)
OE 替代料號 (Original Equipment Numbers)	54618-D5010 54618-D5015
Length	100 mm
Width	31 mm
Height	60 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06017	FRONT LOWER ARM INNER	54590-01E00 54590-85E00
CBJ06005	FRONT LOWER LH/ RH	1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600
CBJ06017A	FRONT LOWER LH/ RH	40160-01E00 40160-01E25 40160-51E00 40160-85E00 40160-J8000 40160-Q9000 40160-Q9005

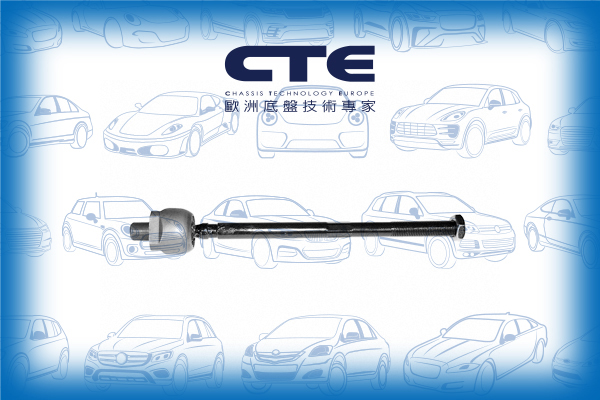

CRE06005	D= M14X1.5 , C= M16X1.0	48521-0E000 48521-2B025 48521-71L00 48521-71L25 48521-72E00 48521-72E06 48521-72E26 48521-7J100 48521-Q5200
CRE06009	FRONT AXLE LH/RH INNER	48521-A0300 48521-A03G0 48521-A05G0
CRE06056	FRONT AXLE LH/ RH	48521-AG000 48521-AG185 48521-CB025 48521-CB026 48521-CB027
CSL06012	FRONT (A= 84.5MM)	54618-D5010 54618-D5015
CTE06004	FRONT AXLE LH/ RH (C= M12X1.25)	48520-35F25 48520-4B000 48520-50A00 48520-50A25

Model (Year)
ALMERA I (N15) \| PULSAR BLUEBIRD (T72 , T12, U12) PATROL GR IV (Y60, GR) \| SAFARI PRIMERA (P10) SUNNY III (N14, B13) \| SENTRA \| PULSAR SUNNY III Hatchback (N14) \| SENTRA SUNNY III Liftback (N14)
