Stabilizer Link

FORD / C-MAX II (DXA/CB7, DXA/CEU) / Stabilizer Link / REAR AXLE LH/RH / CSL03069

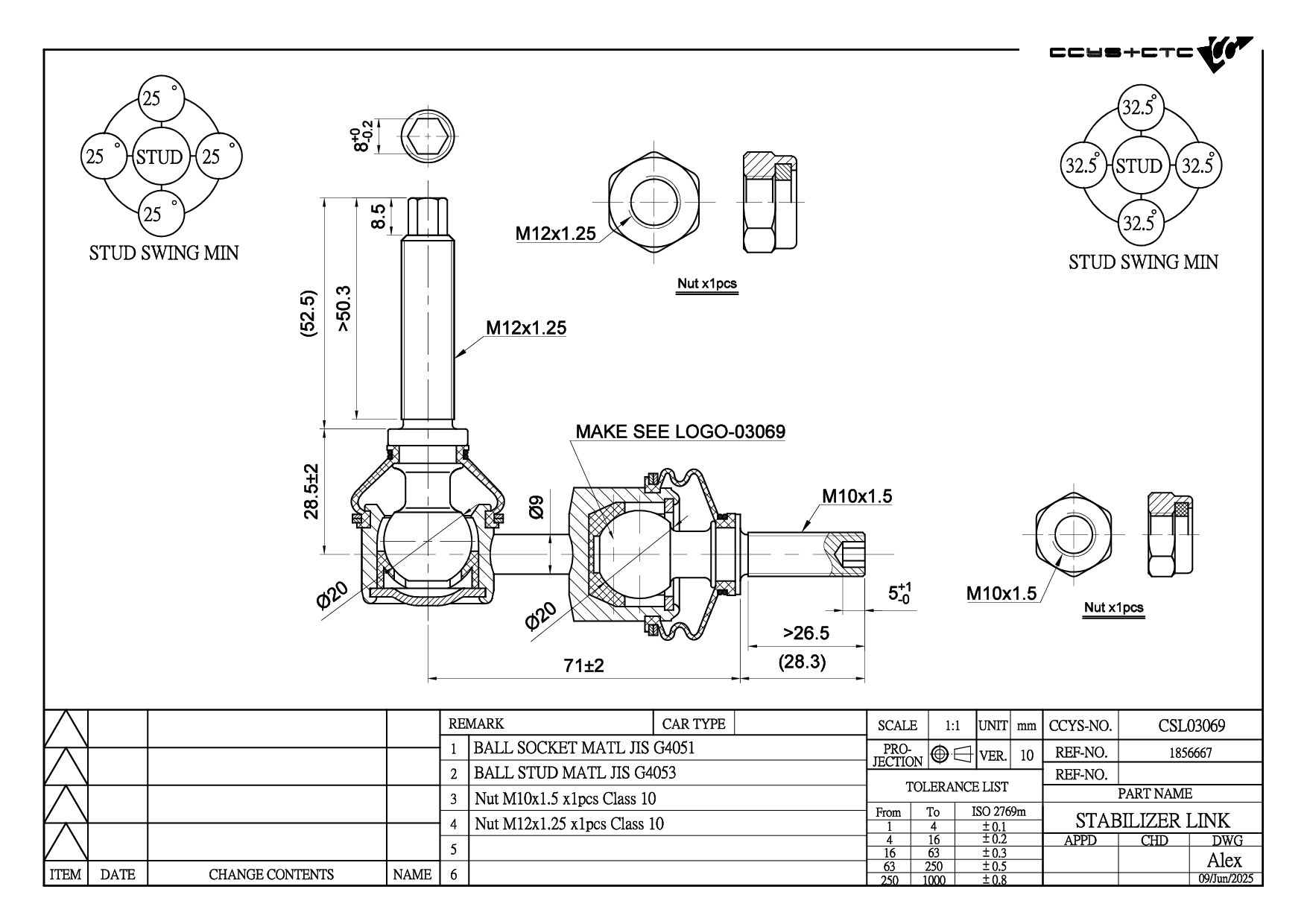

Technical Specification Matrix

CSL03069 是 FORD 專用的平衡桿拉桿 (REAR AXLE LH/RH)。本產品為 OEM 規格替代零件，適配原廠料號 1856667,31317271,31387811,31429024,BV61-5C486-BAE。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR AXLE LH/RH
OE 替代料號 (Original Equipment Numbers)	1856667 31317271 31387811 31429024 BV61-5C486-BAE
Length	118 mm
Width	90 mm
Height	39 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03083	FRONT LOWER ARM REAR	1 781 658 1 781 660 1793236 1793237 1809551 B39D-34-300 B39D-34-350 BBM2-34-300 BBM2-34-300A BBM2-34-350 BBM2-34-350A CV61 3A423 AAC CV61 3A424 AAC CV61-3A262-AAA CV61-3A423-AAB CV61-3A424-AAB
CBJ03025A		1709466
CRE03086	FRONT AXLE LH/ RH	1714484 1780104 31317779 AV6C3L519AA AV6C3L519BA AV6Z3280A AV6Z3280E AV6Z3280F BV6Z3280A
CS-386L	FRONT LOWER LH	1702983 1709466 1742266 1857346 1865175 1865176 1866073 2173541 2176249 AV61-3A424-LB AV61-3A424-LC BV61-3A424-AAB BV61-3A424-AAC BV61-3A424-AAD BV61-3A424-BAB BV61-3A424-BAC F1F1-3A424-AAA F1F1-3A424-AAB
CS-386R	FRONT LOWER RH	1702970 1709457 1742265 1857345 1865168 1865173 1866068 2172992 2173539 AV61-3A423-LB AV61-3A423-LC BV61-3A423-AAB BV61-3A423-AAC BV61-3A423-AAD BV61-3A423-BAB BV61-3A423-BAC F1F1-3A423-AAA F1F1-3A423-AAB
CSL03038	FRONT (A= 306MM)	1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D
CSL03069	REAR AXLE LH/RH	1856667 31317271 31387811 31429024 BV61-5C486-BAE

Model (Year)
C-MAX II (DXA/CB7, DXA/CEU) C-MAX II Van FOCUS III FOCUS III Estate Van FOCUS III Hatchback Van FOCUS III Saloon FOCUS III Turnier GRAND C-MAX (DXA/CB7, DXA/CEU) GRAND C-MAX Van

Model (Year)
V40 Cross Country (526) V40 Hatchback (525) V40 Hatchback Van (525)
