Technical Specification Matrix

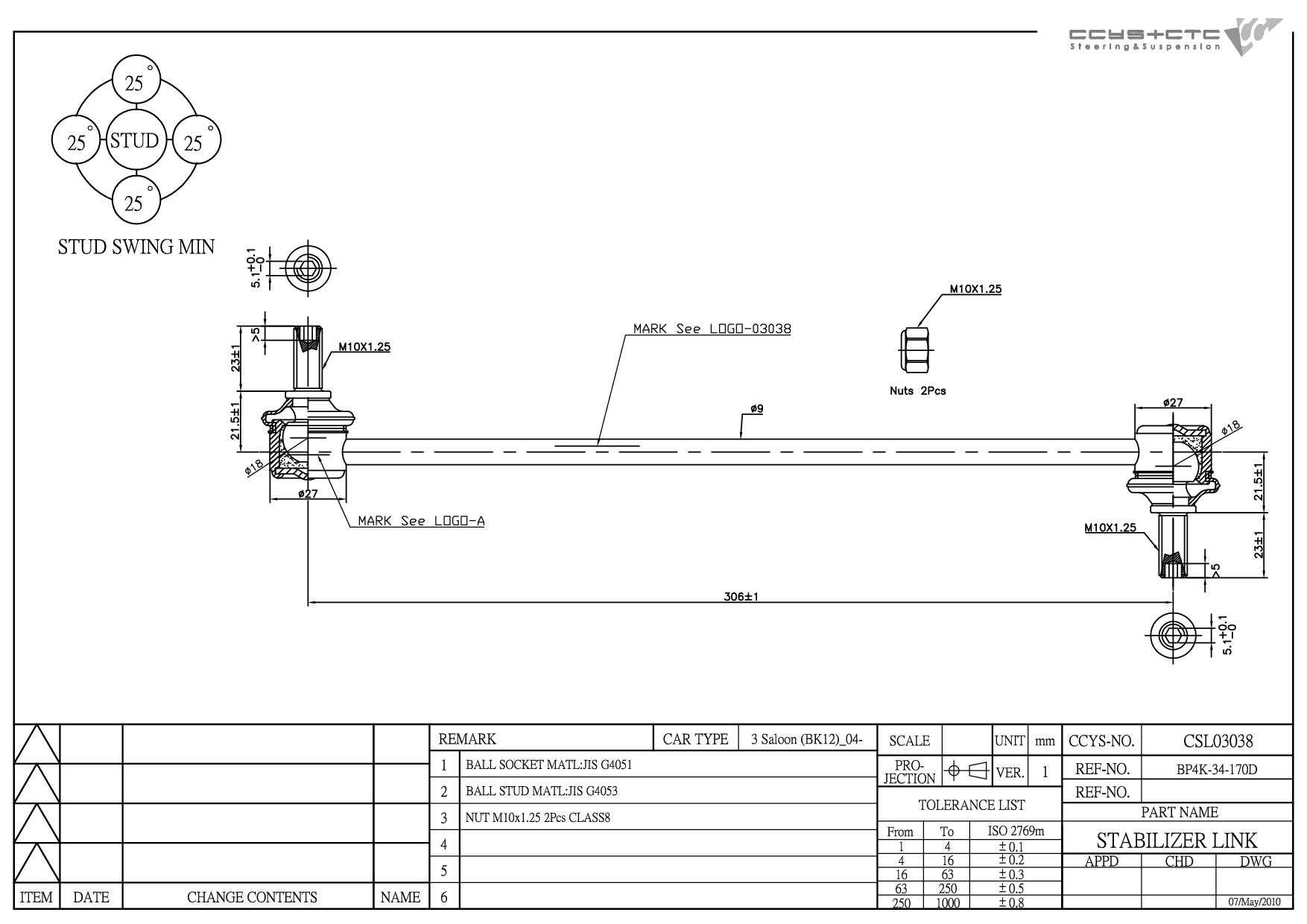

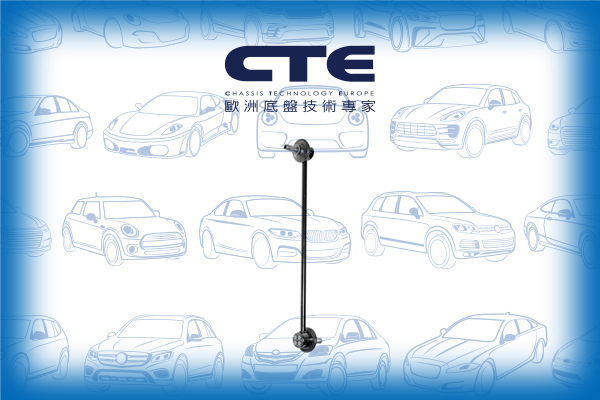

CSL03038 是 MAZDA 專用的 平衡桿拉桿 (FRONT (A= 306mm))。
本產品為 OEM 規格替代零件，適配原廠料號 1223792,1230909,1686594,1762149,1851900,31277652,31340273,3M513B438AA,3M513B438AB,8623576,AV61-3B438-AA,AV61-3B438-BA,B37F-34-170A,BP4K-34-170,BP4K-34-170A,BP4K-34-170B,BP4K-34-170C,BP4K-34-170D。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Stabilizer Link |
| Position | FRONT (A= 306mm) |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 339 mm |
| Width | 33 mm |
| Height | 90 mm |
| Net Weight | 0.4 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |

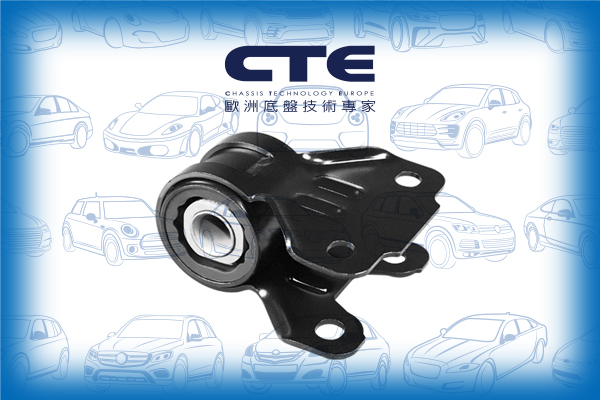

CBH03083 | FRONT LOWER ARM REAR |
|
|
 |
CBJ03025A |
|
||
|
CRE03074 | FRONT AXLE LH/ RH |
|
|
 |

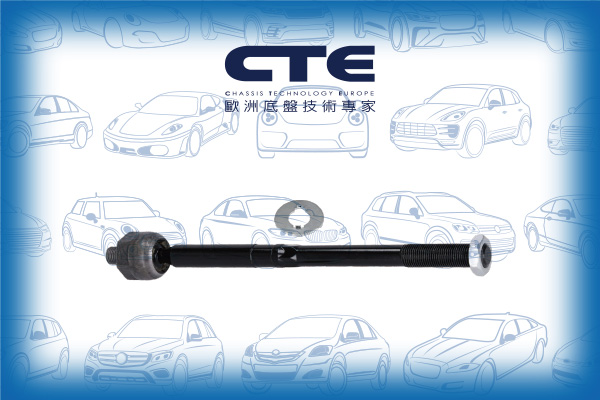

CRE03086 | FRONT AXLE LH/ RH |
|
|
 |

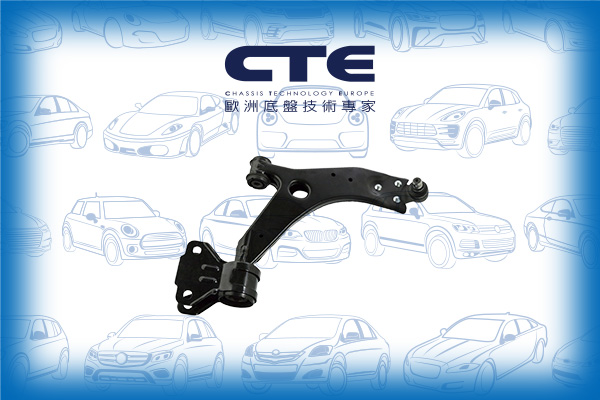

CS-386L | FRONT LOWER LH |
|
|
 |

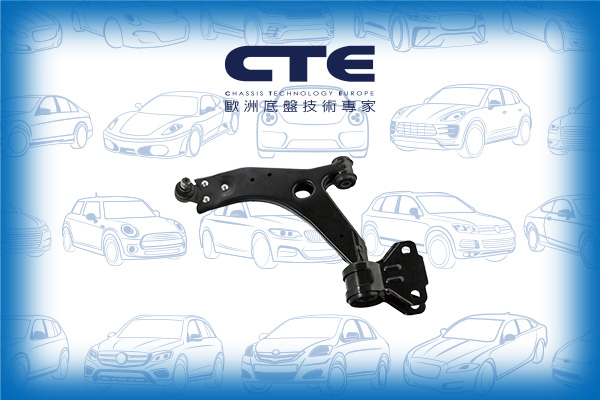

CS-386R | FRONT LOWER RH |
|
|
|
CS03121L | FRONT LOWER LH |
|
|
|
CS03121R | FRONT LOWER RH |
|
|
 |
CSL03038 | FRONT (A= 306MM) |
|
| Model (Year) |
|---|
|
3 (BK) | AXELA 3 Saloon (BK) | AXELA 5 (CR) | PREMACY 5 (CW) | PREMACY |
| Model (Year) |
|---|
|
C-MAX (DM2) C-MAX II (DXA/CB7, DXA/CEU) C-MAX II Van FOCUS C-MAX (DM2) FOCUS II (DA_, HCP, DP) FOCUS II Convertible FOCUS II Turnier (DA_, FFS, DS) FOCUS III FOCUS III Estate Van FOCUS III Hatchback Van FOCUS III Saloon FOCUS III Turnier GRAND C-MAX (DXA/CB7, DXA/CEU) GRAND C-MAX Van KUGA I KUGA II (DM2) | ESCAPE / KUGA | ESCAPE KUGA II VAN TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV TRANSIT CONNECT MPV TRANSIT CONNECT V408 Box Body/MPV |
| Model (Year) |
|---|
|
C30 (533) C70 II Convertible (542) S40 II (544) V40 Cross Country (526) V40 Hatchback (525) V50 (545) |
| Model (Year) |
|---|
|
FOCUS Hatchback FOCUS Hatchback (CD5) FOCUS Saloon FOCUS Saloon (CD4) |
