Stabilizer Link

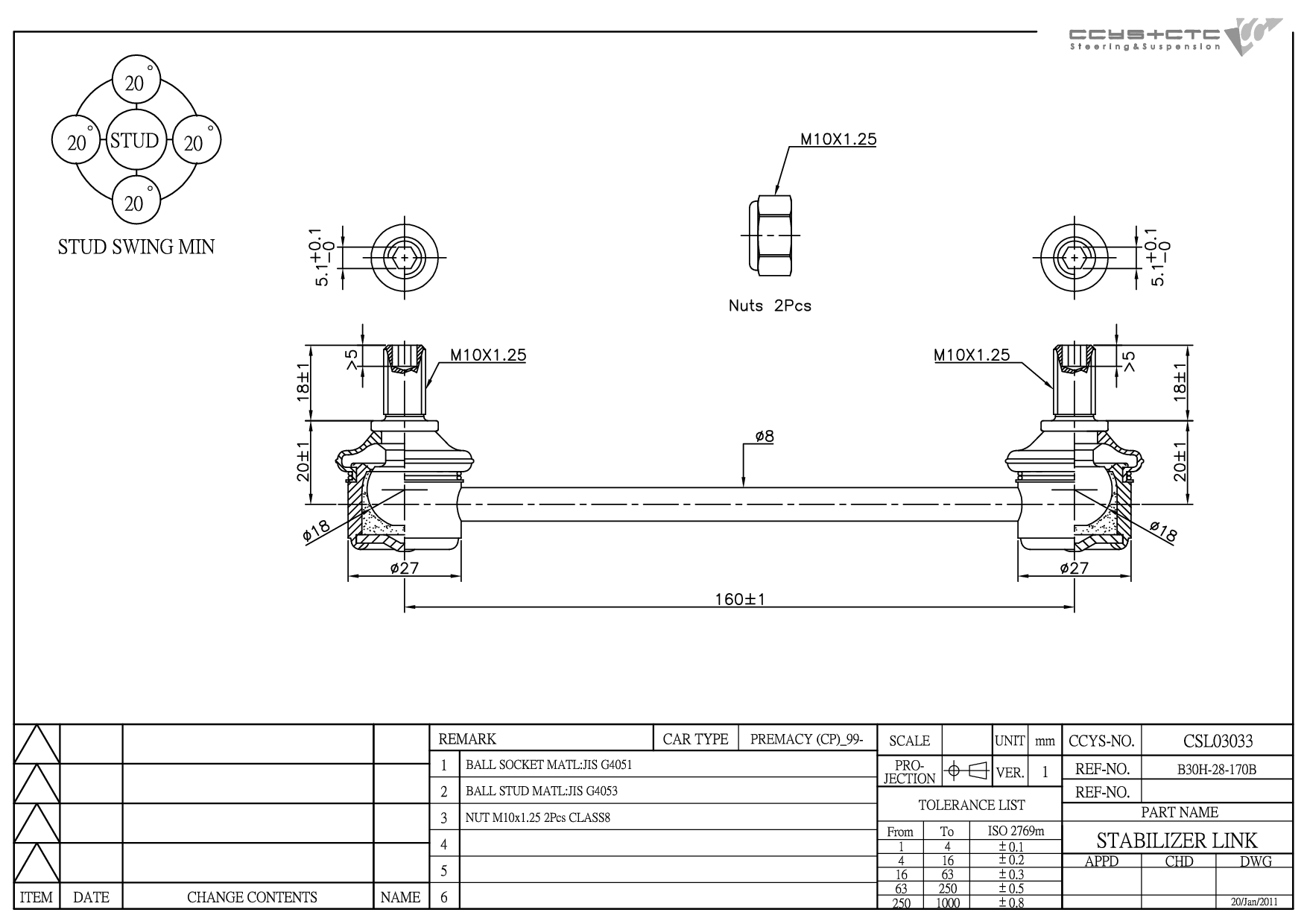

MAZDA / 323 F VI Hatchback (BJ) | 323 F/P | PROTEGE5 | FAMILIA / Stabilizer Link / REAR (A= 160mm) / CSL03033

Technical Specification Matrix

CSL03033 是 MAZDA 專用的平衡桿拉桿 (REAR (A= 160mm))。本產品為 OEM 規格替代零件，適配原廠料號 B30H-28-170,B30H-28-170B。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR (A= 160mm)
OE 替代料號 (Original Equipment Numbers)	B30H-28-170 B30H-28-170B
Length	193 mm
Width	33 mm
Height	54 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03027	FRONT LOWER ARM REAR	B25D-34-460 B25D-34-460A C100-34-460A C100-34-460B C145-34-460
CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320
CS-322L	FRONT LOWER LH	B25D-34-350 B25D-34-350A B25D-34-350B B25D-34-350C B25D-34-350D B25D-34-360A B28V-34-350B C100-34-350 C100-34-350A C100-34-350B C145-34-350 C145-34-350A C145-34-350B
CS-322R	FRONT LOWER RH	B25D-34-300 B25D-34-300A B25D-34-300B B25D-34-300C B25D-34-300D B25D-34-310A B28V-34-300B C100-34-300 C100-34-300A C100-34-300B C145-34-300 C145-34-300A C145-34-300B
CSL03018	REAR (A= 190MM)	B26R-28-170
CSL03033	REAR (A= 160MM)	B30H-28-170 B30H-28-170B
CSL03041	FRONT (A= 265MM)	82 00 669 066 83 00 166 160 LC62-34-170 LC62-34-170A LC62-34-170B LX62-34-170
CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ
