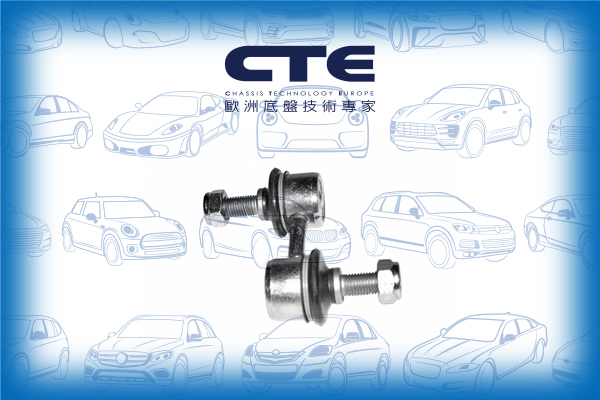

Stabilizer Link

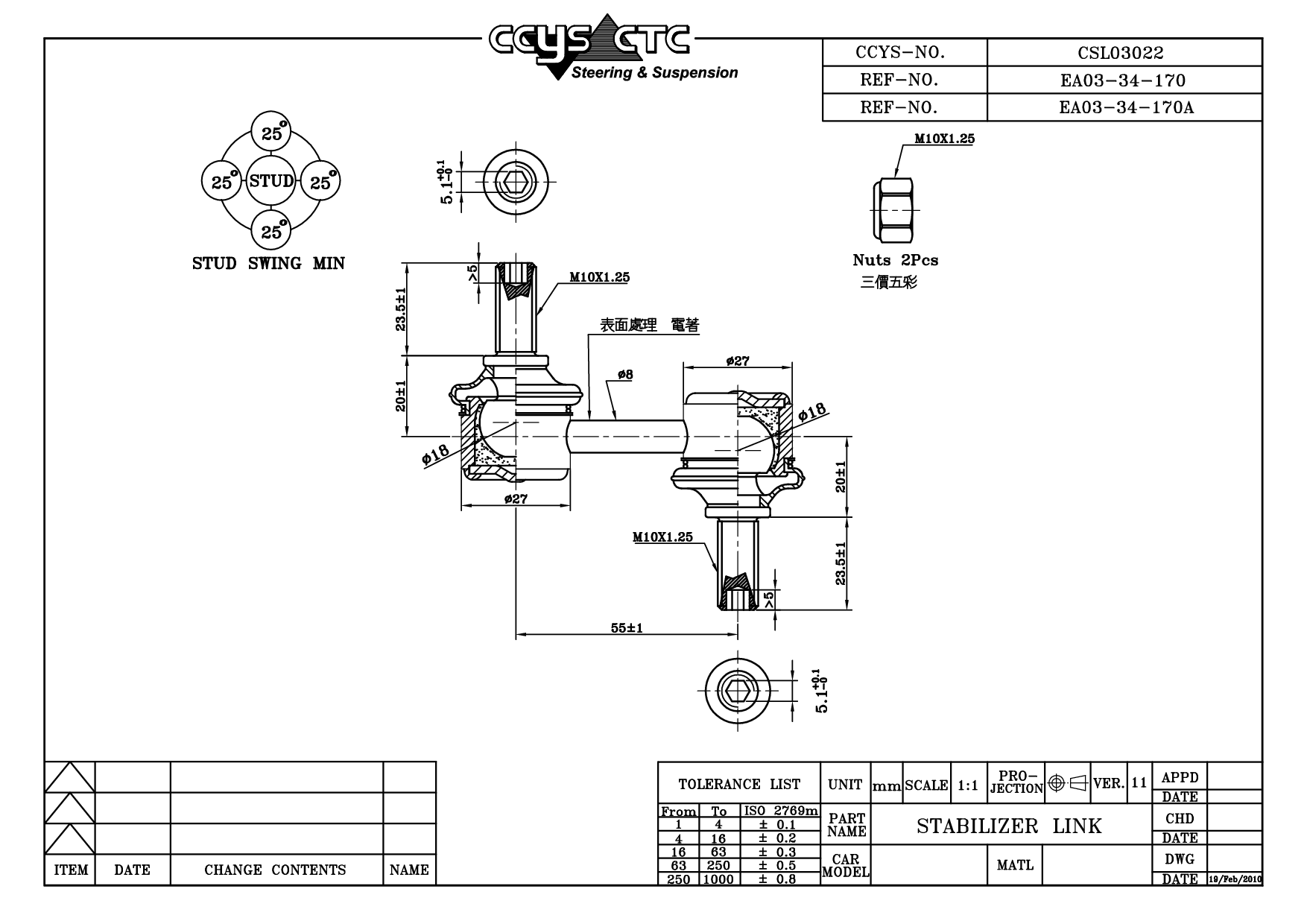

MAZDA / 323 C V (BA) | FAMILIA / Stabilizer Link / FRONT (A= 55mm) / CSL03022

Technical Specification Matrix

CSL03022 是 MAZDA 專用的平衡桿拉桿 (FRONT (A= 55mm))。本產品為 OEM 規格替代零件，適配原廠料號 EA03-34-170,EA03-34-170A。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT (A= 55mm)
OE 替代料號 (Original Equipment Numbers)	EA03-34-170 EA03-34-170A
Length	88 mm
Width	33 mm
Height	86 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

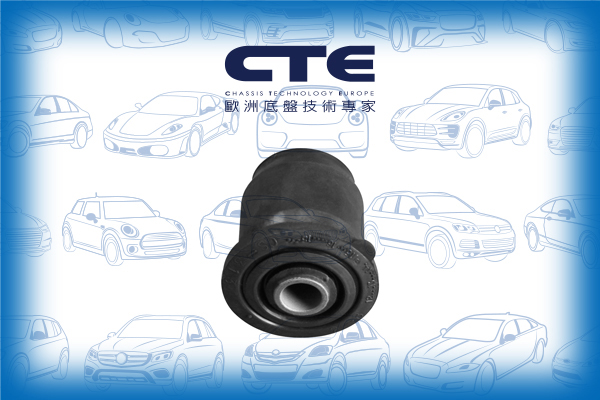

CBH03016	FRONT LOWER ARM INNER	BC1D-34-470 BC1D-34-470A

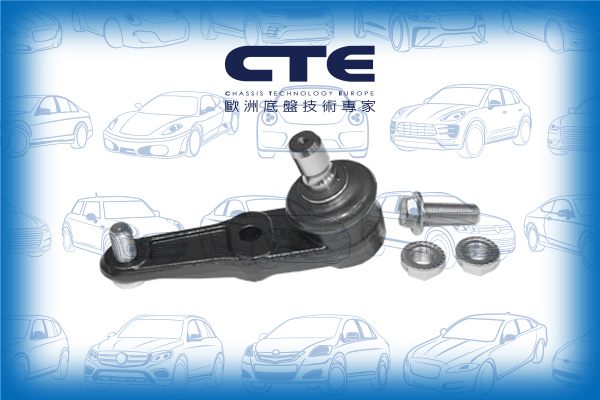

CBJ03011A	FRONT LOWER LH/ RH	B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA
CRE03064	FRONT AXLE LH/ RH	B092-32-240

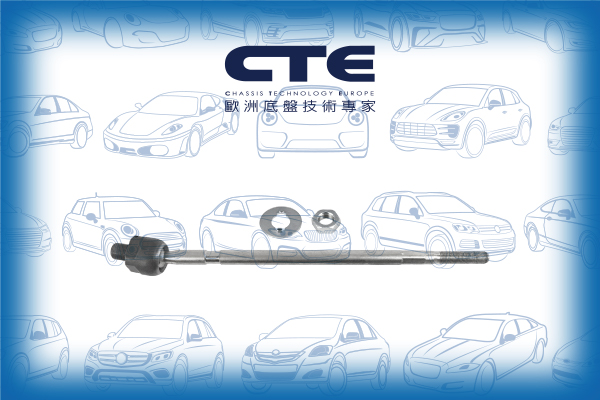

CRE03067	FRONT AXLE LH/ RH	B21H-32-25X E016-32-25X

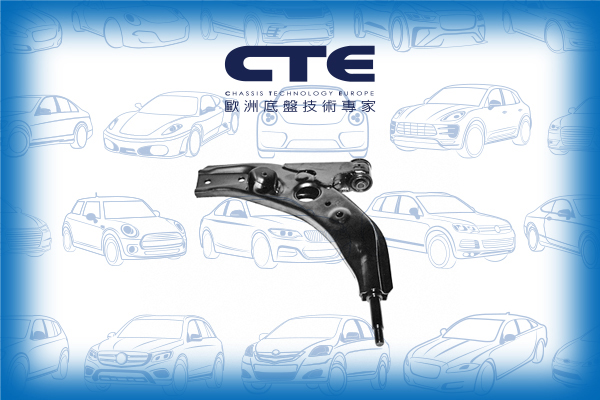

CS-313L	FRONT LOWER LH	B01A-34-350D B01A-34-350E B02B-34-350D B02B-34-350E BC5S-34-350B BC5S-34-350C BC6C-34-350 BC6C-34-350B BC6C-34-350C BE7B-34-350 BE7B-34-350A XH423397BA

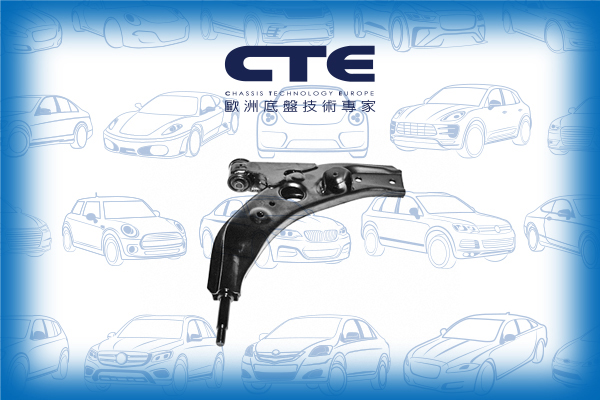

CS-313R	FRONT LOWER RH	B01A-34-300D B01A-34-300E B02B-34-300D B02B-34-300E BC5S-34-300B BC5S-34-300C BC6C-34-300 BC6C-34-300B BC6C-34-300C BE7B-34-300 BE7B-34-300A

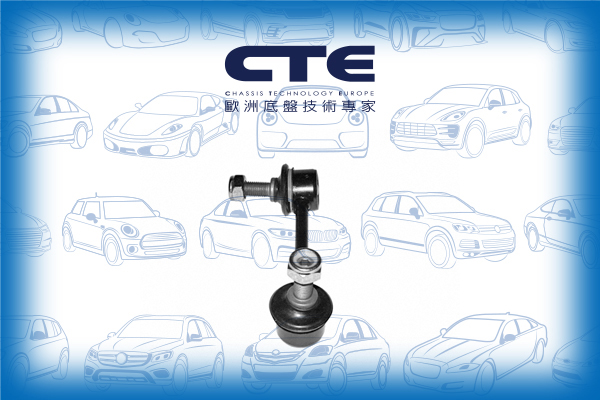

CSL03004L	FRONT LH (A= 104MM)	3410592 GA2A-34-170 GA2A-34-170A

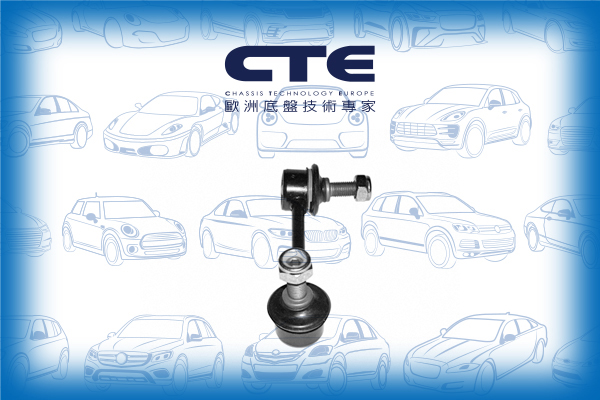

CSL03004R	FRONT RH (A= 104MM)	3410591 GA2A-34-150 GA2A-34-150A

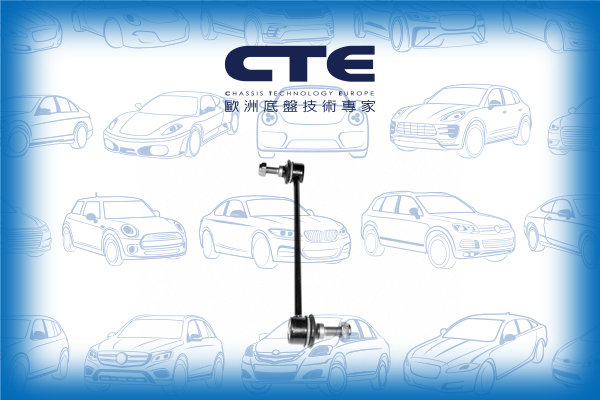

CSL03016	REAR (A= 250MM)	BC1D-28-170 BC1D-28-170A E112-34-150
CSL03022	FRONT (A= 55MM)	EA03-34-170 EA03-34-170A

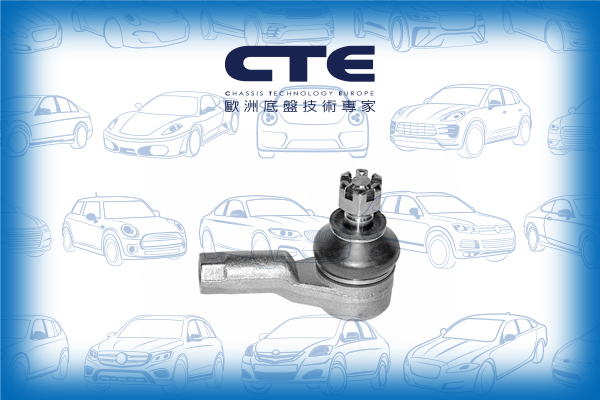

CTE03007	FRONT AXLE LH/ RH (C= M12X1.25)	8AB2-32-280 B455-32-280
