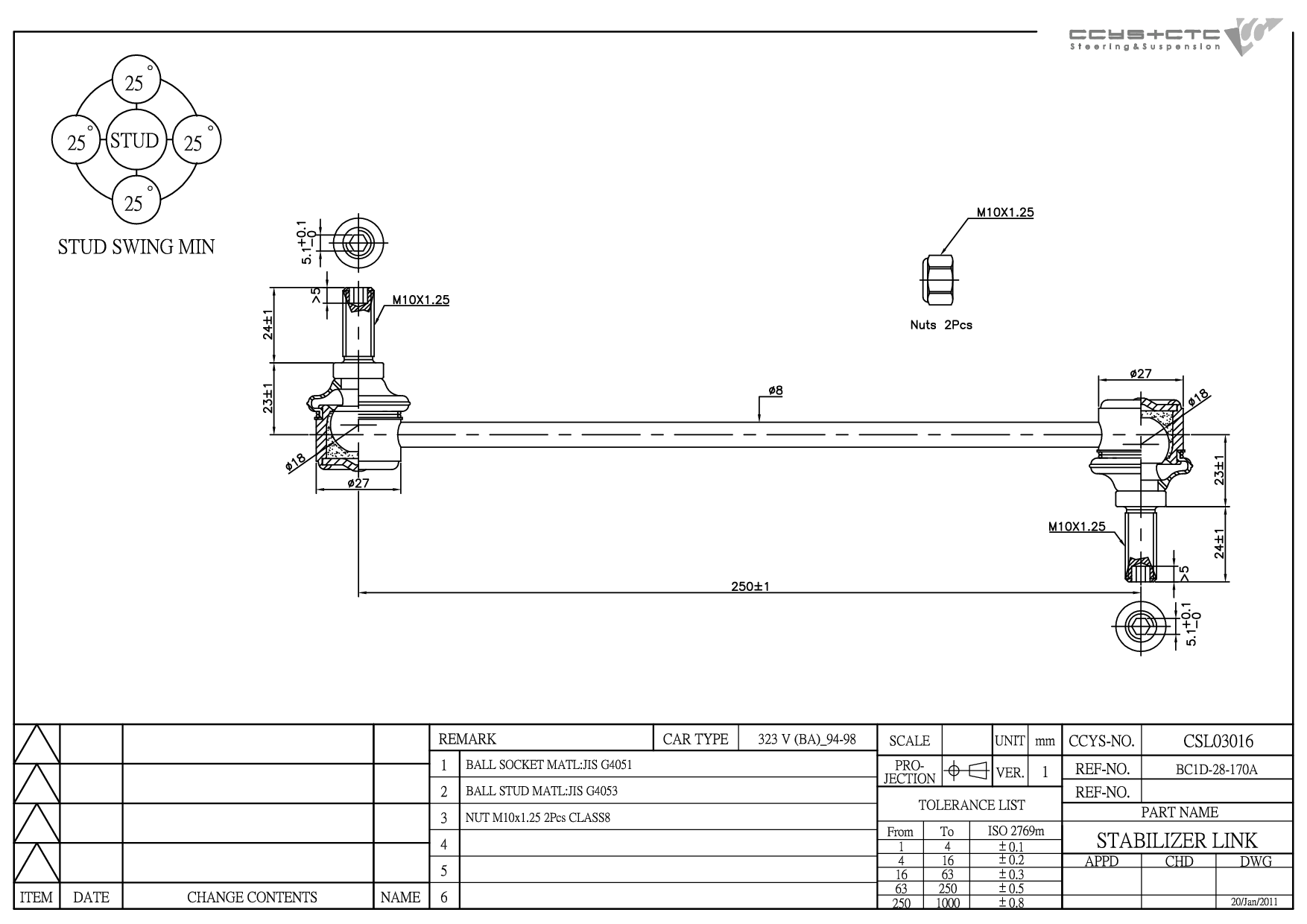

Stabilizer Link

MAZDA / 2 (DE_, DH_) | DEMIO / Stabilizer Link / REAR (A= 250mm) / CSL03016

Technical Specification Matrix

CSL03016 是 MAZDA 專用的平衡桿拉桿 (REAR (A= 250mm))。本產品為 OEM 規格替代零件，適配原廠料號 BC1D-28-170,BC1D-28-170A,E112-34-150。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	REAR (A= 250mm)
OE 替代料號 (Original Equipment Numbers)	BC1D-28-170 BC1D-28-170A E112-34-150
Length	283 mm
Width	33 mm
Height	94 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03080	FRONT LOWER REAR	D651-34-300 D651-34-300A D651-34-300B D651-34-300C D651-34-300D D651-34-300E D651-34-350 D651-34-350A D651-34-350B D651-34-350C D651-34-350D D651-34-350E
CBH03081	FRONT LOWER ARM INNER	D651-34-470
CRE03070	FRONT AXLE LH/ RH	1545457 8V513L519AA D651-32-240 D653-32-240 EV800932 SR-1800
CS-366L	FRONT LOWER LH	D651-34-350 D651-34-350A D651-34-350B D651-34-350C D651-34-350D D651-34-350E
CS-366R	FRONT LOWER RH	D651-34-300 D651-34-300A D651-34-300B D651-34-300C D651-34-300D D651-34-300E
CSL03016	REAR (A= 250MM)	BC1D-28-170 BC1D-28-170A E112-34-150

Model (Year)
2 (DE_, DH_) \| DEMIO 323 C V (BA) \| FAMILIA 323 F V (BA) \| FAMILIA / LANTIS 323 P V (BA) \| FAMILIA 323 S V (BA) \| FAMILIA TRIBUTE (EP)
