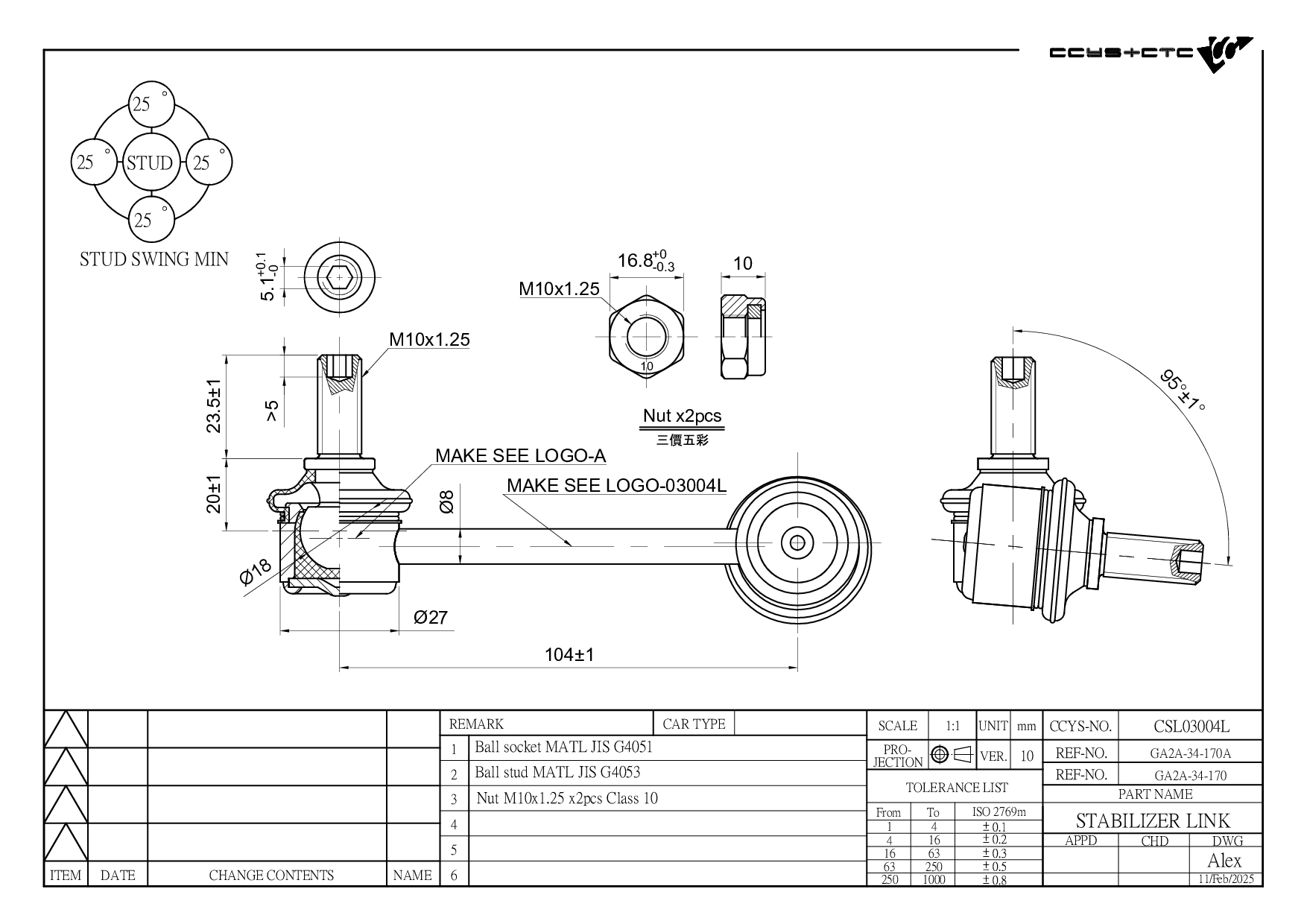

Stabilizer Link

MAZDA / 323 C V (BA) | FAMILIA / Stabilizer Link / FRONT LH (A= 104mm) / CSL03004L

Technical Specification Matrix

CSL03004L 是 MAZDA 專用的平衡桿拉桿 (FRONT LH (A= 104mm))。本產品為 OEM 規格替代零件，適配原廠料號 3410592,GA2A-34-170,GA2A-34-170A。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT LH (A= 104mm)
OE 替代料號 (Original Equipment Numbers)	3410592 GA2A-34-170 GA2A-34-170A
Length	137 mm
Width	60 mm
Height	61 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

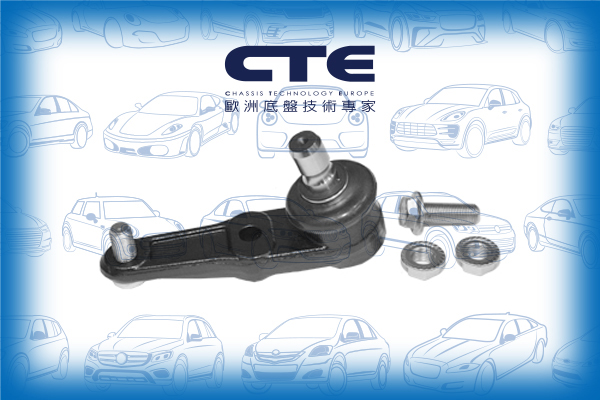

CBJ03011A	FRONT LOWER LH/ RH	B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA

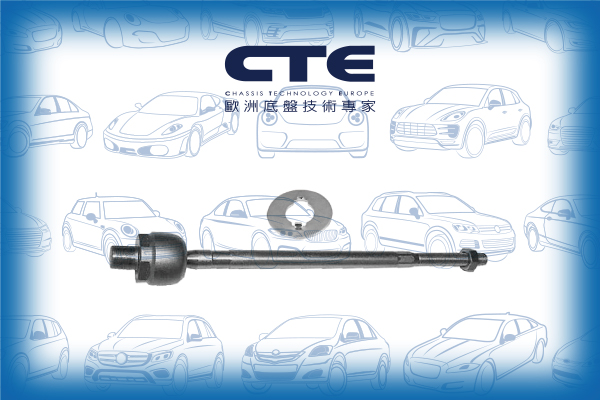

CRE03064	FRONT AXLE LH/ RH	B092-32-240
CSL03004L	FRONT LH (A= 104MM)	3410592 GA2A-34-170 GA2A-34-170A
CSL03004R	FRONT RH (A= 104MM)	3410591 GA2A-34-150 GA2A-34-150A
CSL03016	REAR (A= 250MM)	BC1D-28-170 BC1D-28-170A E112-34-150

Model (Year)
323 C V (BA) \| FAMILIA 323 F V (BA) \| FAMILIA / LANTIS 323 P V (BA) \| FAMILIA 323 S V (BA) \| FAMILIA 626 III Hatchback (GD) 626 IV (GE) \| 626 / CRONOS / MS6 \| CRONOS / TELSTAR 626 IV Hatchback (GE) \| TELSTAR \| 626 / CRONOS / MS6 626 V (GF) 626 V Hatchback (GF) 626 V Station Wagon (GW) MX-5 II (NB) \| MIATA \| ROADSTER MX-6 (GE) XEDOS 6 (CA) \| EUNOS 500

Model (Year)
PROBE I PROBE II (ECP)
