Stabilizer Link

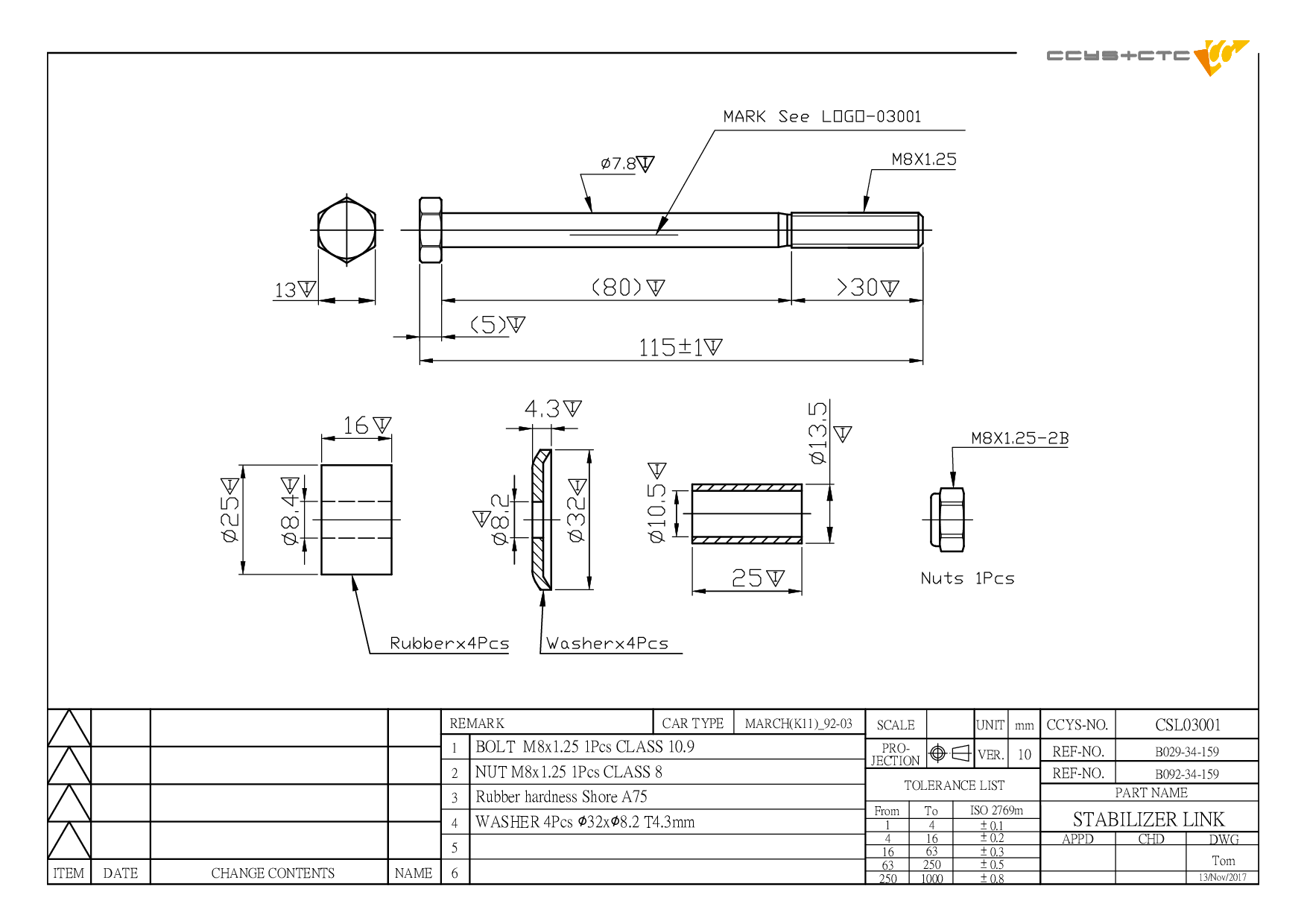

MAZDA / 323 II Hatchback (BD) | FAMILIA / Stabilizer Link / FRONT / CSL03001

Technical Specification Matrix

CSL03001 是 MAZDA 專用的平衡桿拉桿 (FRONT)。本產品為 OEM 規格替代零件，適配原廠料號 B029-34-159,B092-34-159。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT
OE 替代料號 (Original Equipment Numbers)	B029-34-159 B092-34-159
Length	115 mm
Width	13 mm
Height	15 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03004	FRONT LOWER ARM INNER	B092-34-470
CBH03014	REAR LINK INNER	B092-28-500B B092-28-550B BF67-28-620 BF67-28-630 BJ36-28-620 BJ36-28-630
CBH03015	REAR LINK OUTER
CBH03025	REAR LINK OUTER
CBH03026	REAR LINK INNER
CBJ28001A	FRONT LOWER LH/ RH	0K20134550B 0K20134550C 0K20134550D 0K20134550E 5043202 5043212 96300030 96300048 96300648 B00134550 B09234550 B092345509A E7GZ3050A
CRE03011	D= M12X1.25 , C= M14X1.5	B094-32-240
CRE03013	D= M12X1.25 , C= M17X1.0	B093-32-250
CRE03047	D= M12X1.25 , C= M17X1.0	B093-32-240 NA02-32-240
CRE03064	FRONT AXLE LH/ RH	B092-32-240
CS-303L	FRONT LOWER LH	B092-34-360A
CS-303R	FRONT LOWER RH	B092-34-310A
CS-310L	REAR AXLE LINK LH	B092-28-550B BF67-28-630 BJ36-28-630
CS-310R	REAR AXLE LINK RH	B092-28-500B BF67-28-620 BJ36-28-620
CSL03001	FRONT	B029-34-159 B092-34-159
CSL03007	FRONT AXLE	8AB2-34-100B
CSL03012	REAR AXLE (A=135MM)
CSL26019	FRONT REAR AXLE (A=135MM)	54825-22000 8AB2-34-100 8AB2-34-100A 8AB2-34-100B
CTE03009	FRONT AXLE LH/ RH (C= M12X1.25)	009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000
