Stabilizer Link

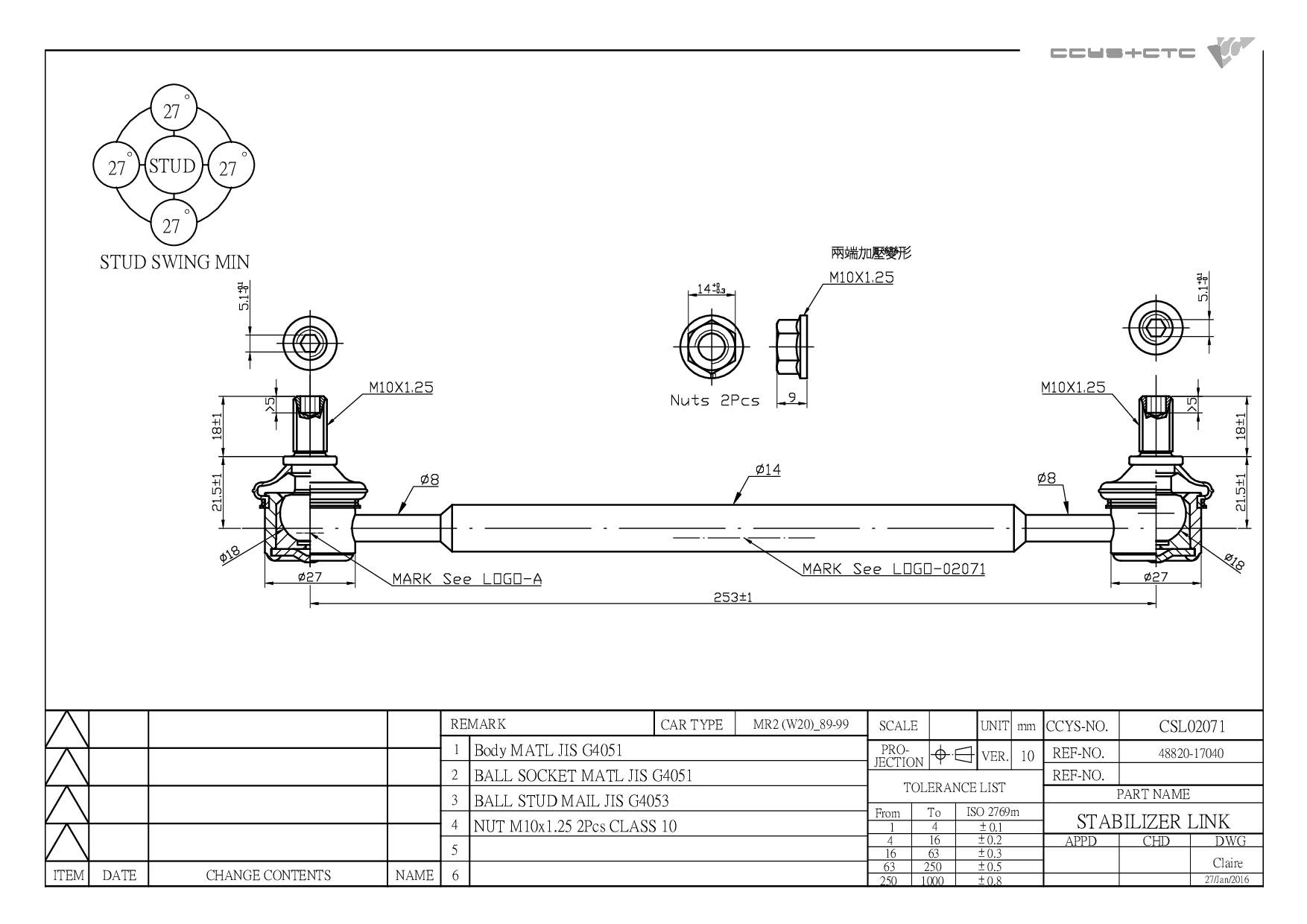

TOYOTA / HIACE / COMMUTER V Bus (TRH2, KDH2, LH2, GDH2) / Stabilizer Link / FRONT / CSL02071

Technical Specification Matrix

CSL02071 是 TOYOTA 專用的平衡桿拉桿 (FRONT)。本產品為 OEM 規格替代零件，適配原廠料號 48820-17020,48820-17030,48820-17040。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT
OE 替代料號 (Original Equipment Numbers)	48820-17020 48820-17030 48820-17040
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH02016	FRONT LOWER ARM INNER	48061-26010 48061-26030 48061-26031 48061-26050 48061-35010 48061-35011
CBH02055	REAR AXLE LH/RH	52380-26080 52380-26081 52380-26082
CBH02114	FRONT UPPER ARM	48066-29215 48066-29225 48067-29215 48067-29225 48635-26040
CBH02115	FRONT UPPER ARM	48066-29215 48066-29225 48066-35070 48066-35100 48066-35110 48067-29215 48067-29225 48067-35030 48067-35040 48067-35060 48632-26050 48632-26051
CRE02023	D= M17X1.5 , C= M14X1.5	45503-19116 45503-29255
CRE02024	D= M17X1.5 , C= M14X1.5	45503-29265
CRE02153	FRONT AXLE LH/ RH	45503-02200
CRE02154	FRONT AXLE LH/ RH	45503-29575 45503-29836
CRE02169	FRONT AXLE LH/ RH	45503-29565
CS-239L	FRONT LOWER LH	48069-26070 48069-26071 48069-26072 48069-26130 48069-26131 48069-26132
CS-239R	FRONT LOWER RH	48068-26070 48068-26071 48068-26072 48068-26130 48068-26131 48068-26132
CSL02038	FRONT AXLE LH/RH	48819-26050 90101-10140 90179-10029 90440-14003 90948-01002 90948-02004 90948-02005 90948-02190 94184-61000 94184-61001
CSL02040L	FRONT LH (A= 74MM)	48810-26030
CSL02040LA	FRONT LH (A= 74MM)	48810-26030
CSL02040R	FRONT RH (A= 74MM)	48820-26030
CSL02040RA	FRONT RH (A= 74MM)	48820-26030
CSL02071	FRONT	48820-17020 48820-17030 48820-17040
CSL02095L	FRONT AXLE LH	48810-26020
CSL02095R	FRONT AXLE RH	48820-26020

Model (Year)
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) HIACE IV Bus (_H1_) \| REGIUS HIACE IV Bus (__H1_, __H2_) HIACE IV Van (_H1_) HIACE IV Van (__H1_, __H2_) HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) MR2 II (SW2_)
