Stabilizer Link

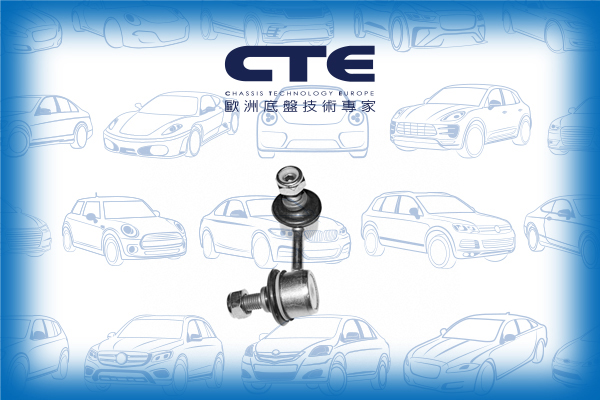

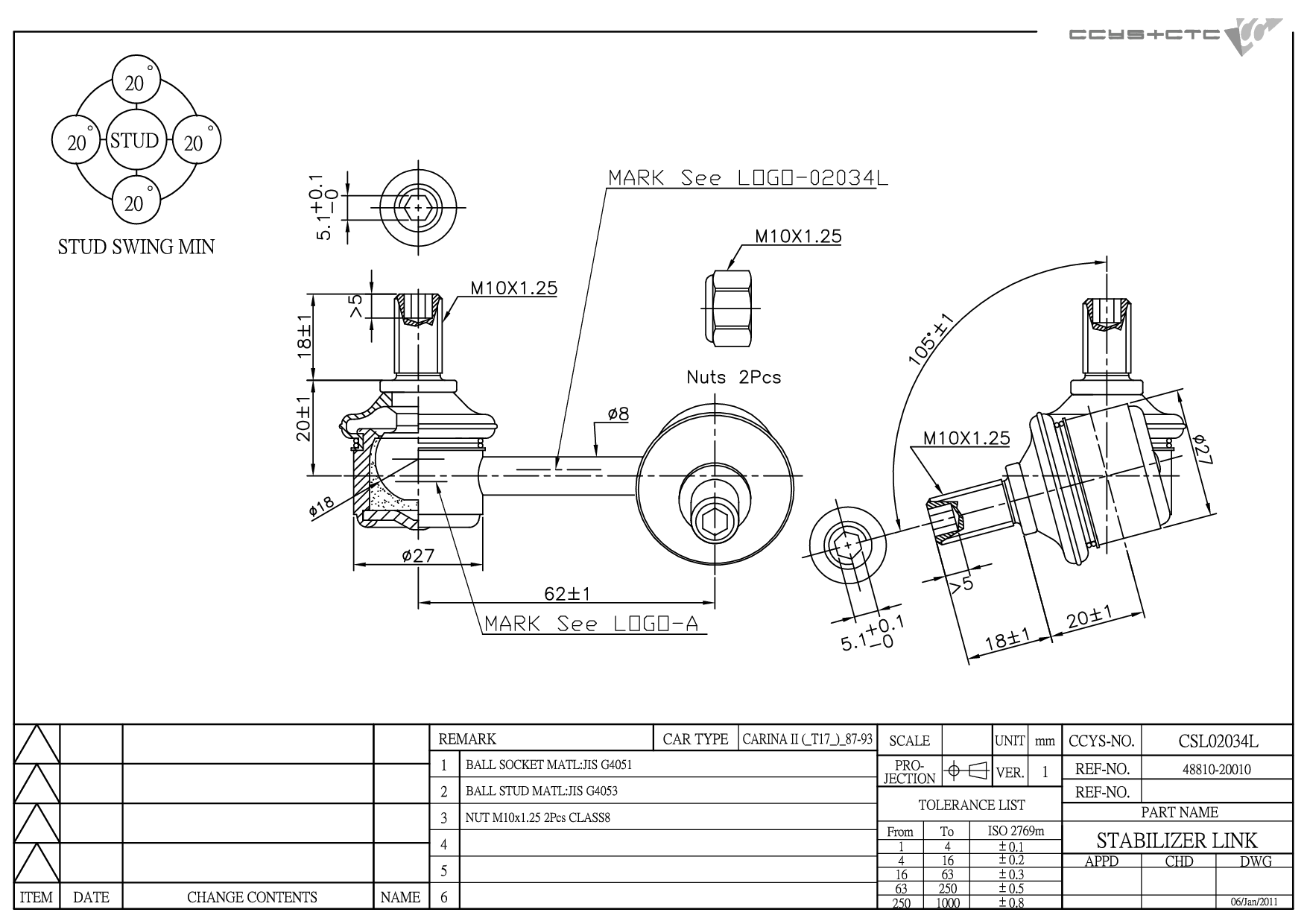

TOYOTA / AVENSIS (_T22_) / Stabilizer Link / FRONT LH (A= 62mm) / CSL02034L

Technical Specification Matrix

CSL02034L 是 TOYOTA 專用的平衡桿拉桿 (FRONT LH (A= 62mm))。本產品為 OEM 規格替代零件，適配原廠料號 48810-20010。

PARAMETER	METRIC / VALUE
Designation	Stabilizer Link
Position	FRONT LH (A= 62mm)
OE 替代料號 (Original Equipment Numbers)	48810-20010
Length	95 mm
Width	54 mm
Height	56 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

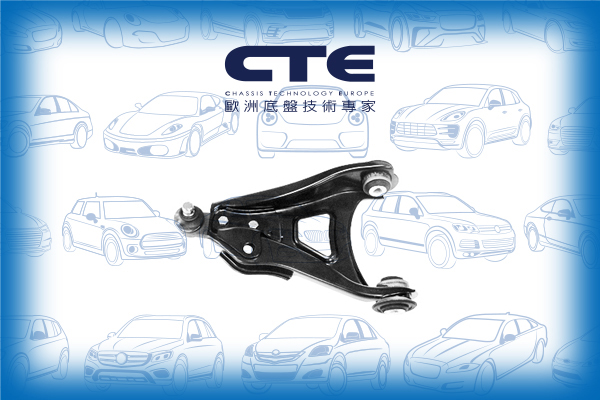

CS-1003L	FRONT LOWER LH	54501-00Q0D 54501-00Q0G 54501-00Q0K 54501-00Q0L 54501-00QAG 54501-00QAH 77 00 310 809 77 00 313 944 77 00 425 227 82 00 197 179 82 00 737 123 82 00 942 407 82009-42417

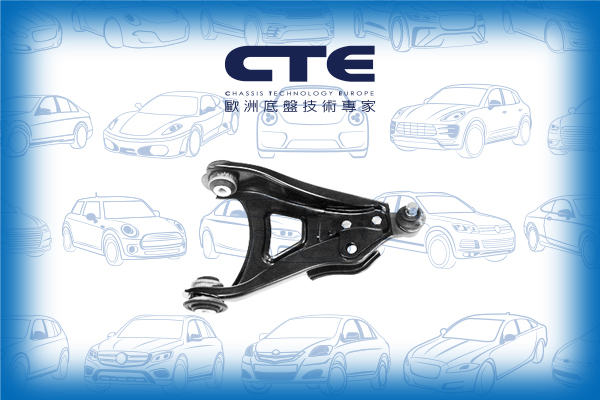

CS-1003R	FRONT LOWER RH	54500-00Q0D 54500-00Q0J 54500-00Q0M 54500-00Q1A 54500-00QAG 54500-00QAH 54616-00Q0D 77 00 310 810 77 00 313 945 77 00 425 228 82 00 197 187 82 00 737 129 82 00 942 408 82009-42413
CSL02034L	FRONT LH (A= 62MM)	48810-20010

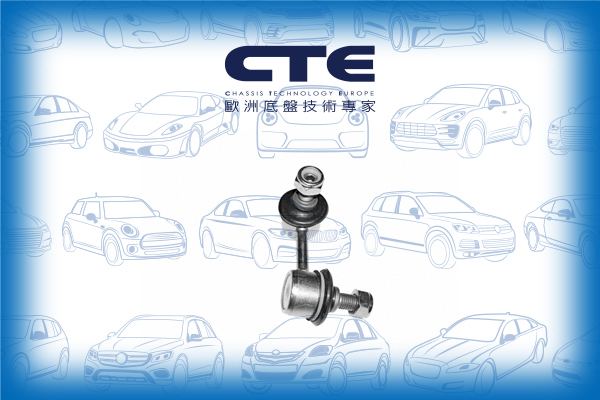

CSL02034R	FRONT RH (A= 62MM)	48820-20030

Model (Year)
AVENSIS (_T22_) AVENSIS Estate (_T22_) AVENSIS Liftback (_T22_) CARINA E VI (_T19_) CARINA E VI Saloon (_T19_) CARINA E VI Sportswagon (_T19_) CARINA IV (_T15_) CARINA IV Saloon (_T15_) CARINA V (_T17_) CARINA V Estate (_T17_) CARINA V Saloon (_T17_) CORONA Estate (_T17_) CORONA Hatchback (_T17_) CORONA Hatchback (_T19_) CORONA Saloon (_T14_, _T15_, _T16_) CORONA Saloon (_T17_)

Model (Year)
CLIO II (BB_, CB_) \| LUTECIA KANGOO (KC0/1_) KANGOO Express (FC0/1_) TWINGO II (CN0_)
