Control Arm

ISUZU / D-MAX I (TFR, TFS) | RODEO / Control Arm / FRONT LOWER RH / CS-802R

Technical Specification Matrix

CS-802R 是 ISUZU 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 8-94246-419-0,8-94459-460-2,94459460。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	8-94246-419-0 8-94459-460-2 94459460
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	3.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

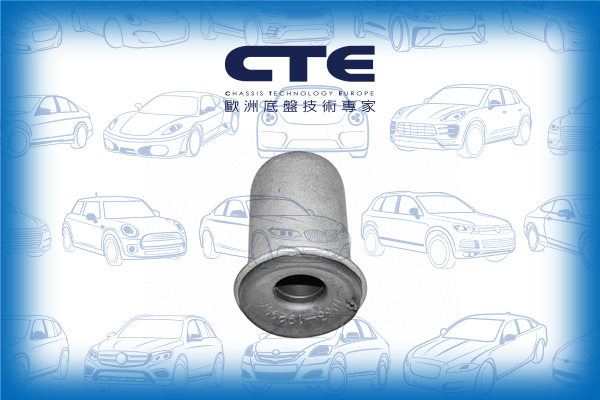

CBH08002	FRONT LOWER ARM INNER
CBJ08004A	FRONT LOWER LH/ RH	3 52 828 8-94452-102-0 8-94452-102-1 8-94459-465-1 8-94459-465-2 8-97235-776-0 8-97365-020-0 8-97365-021-0 8-98005-874-0 8-98005-875-0 944459465 94459465
CRE08012	FRONT AXLE LH/ RH	8-98056-550-0

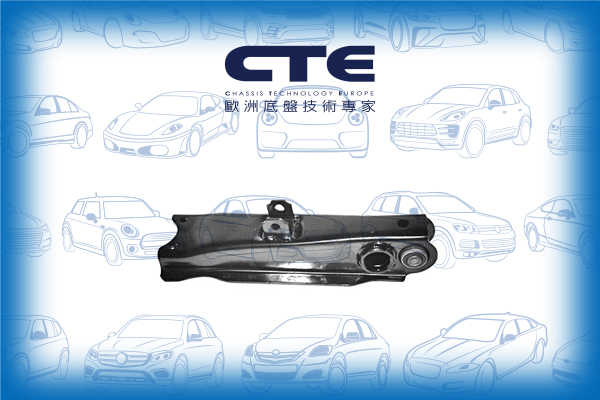

CS-802L	FRONT LOWER LH	8-94246-420-0 8-94459-461-2 94459461

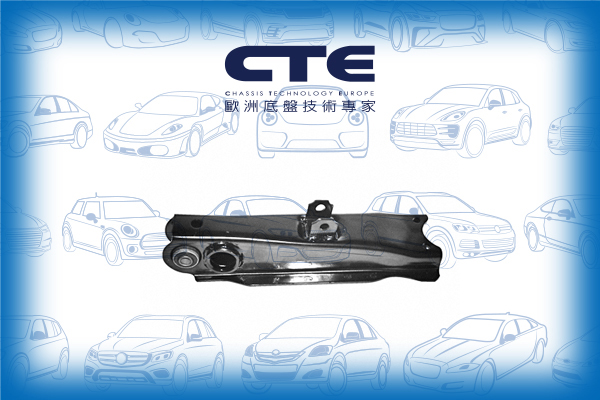

CS-802R	FRONT LOWER RH	8-94246-419-0 8-94459-460-2 94459460
CSL08008L	FRONT AXLE LH	8-97235-787-0 8-97235-787-1 8-97944-569-0
CSL08008R	FRONT AXLE RH	8-97235-786-0 8-97235-786-1 8-97944-568-0
