Control Arm

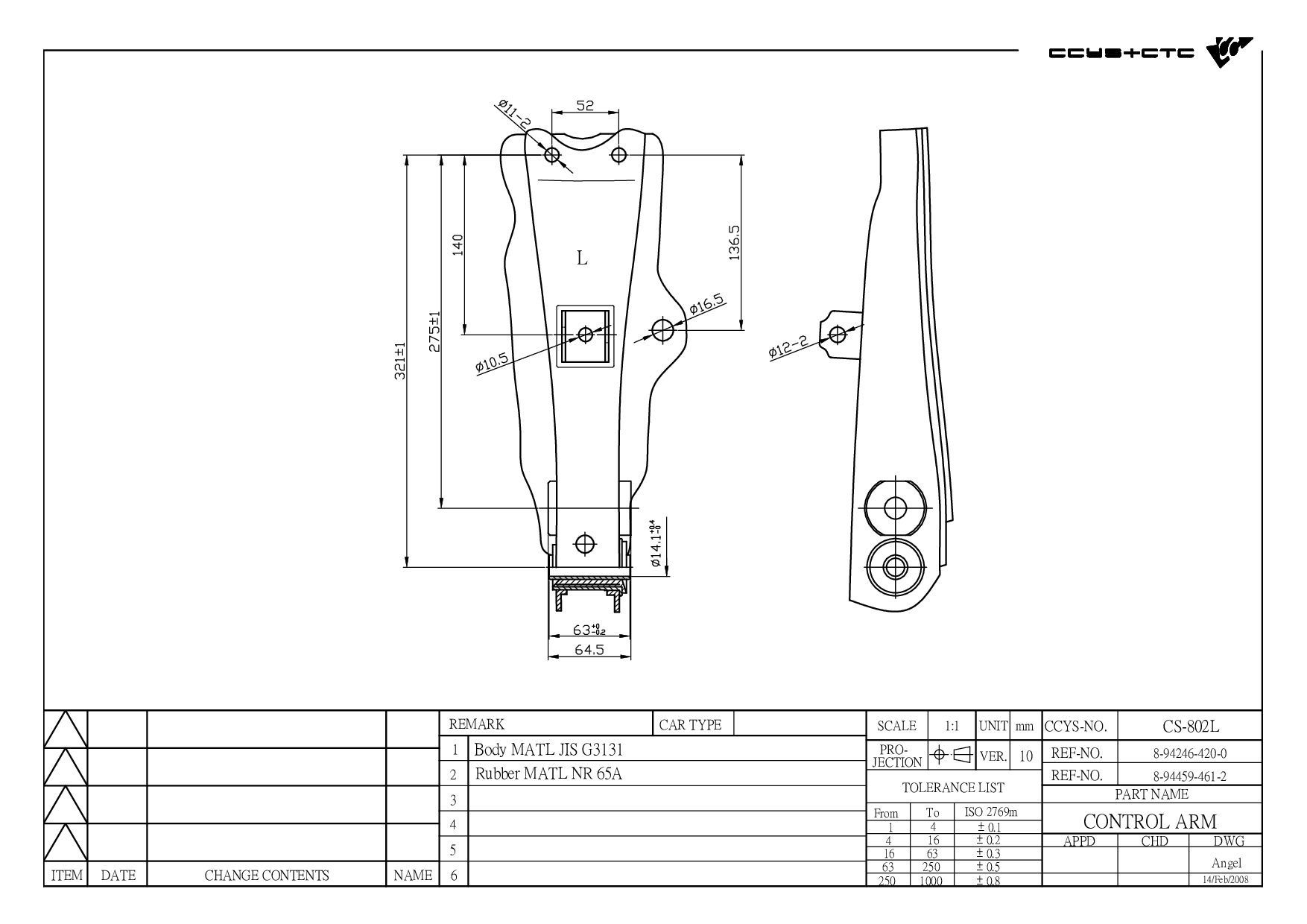

ISUZU / D-MAX I (TFR, TFS) | RODEO / Control Arm / FRONT LOWER LH / CS-802L

Technical Specification Matrix

CS-802L 是 ISUZU 專用的控制臂 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 8-94246-420-0,8-94459-461-2,94459461。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	8-94246-420-0 8-94459-461-2 94459461
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	3.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH08002	FRONT LOWER ARM INNER

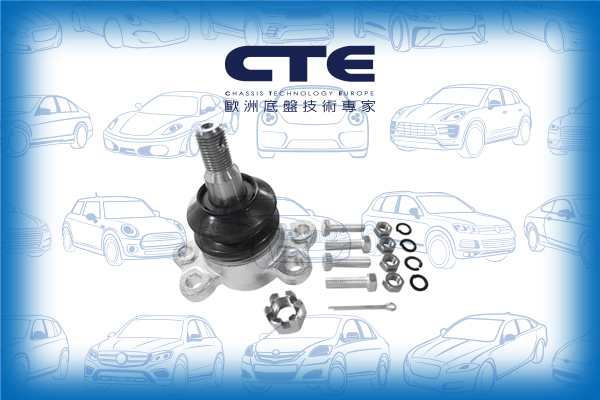

CBJ08001A	FRONT UPPER LH/ RH	8-94224-550-0 8-94224-550-1 8-94224-550-2 8-94224-550-3 8-94224-550-4 8-94224-550-5 8-94243-234-0 8-94472-255-0 8-94472-255-2 94224550 94243234 9942245504
CBJ08003A	FRONT UPPER LH/ RH	3 10 821 8-94459-453-1 8-94459-453-2 8-94459-453-3 8-94459-453-4 8-97940-625-0 94459453
CBJ08004A	FRONT LOWER LH/ RH	3 52 828 8-94452-102-0 8-94452-102-1 8-94459-465-1 8-94459-465-2 8-97235-776-0 8-97365-020-0 8-97365-021-0 8-98005-874-0 8-98005-875-0 944459465 94459465

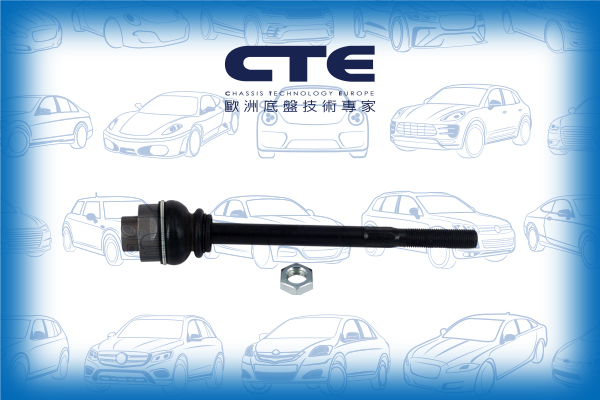

CRE08004	D= M14X1.5 , C= M14X1.5	5-44350-095-1 5-44350-095-2 5-44350-095-3 94027778
CS-802L	FRONT LOWER LH	8-94246-420-0 8-94459-461-2 94459461
CS-802R	FRONT LOWER RH	8-94246-419-0 8-94459-460-2 94459460

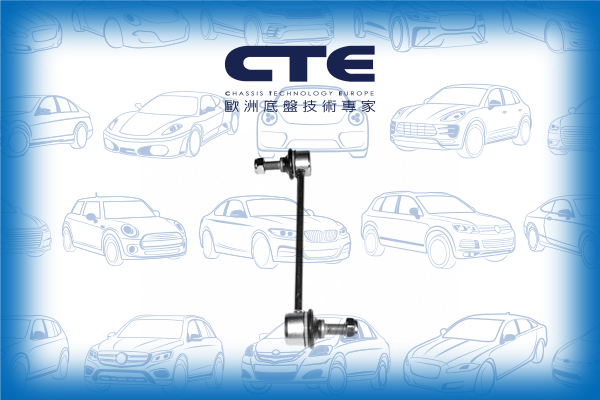

CSL08007	REAR (A= 203MM)	8-97018-125-2

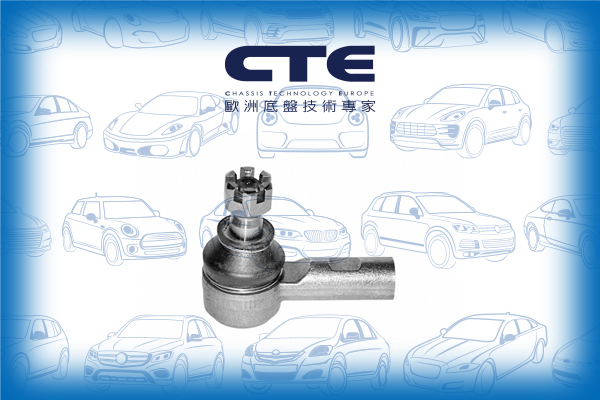

CTE08001L	FRONT AXLE LH (C= M14X1.5L) OUTER	03 24 058 09 20 374 094459481 097020954 3 24 058 8-94419-409-0 8-94459-481-0 8-94459-481-1 8-94459-481-2 8-97020-954-0 8-97020-954-1 8-97020-954-2 8-97940-617-0 8-97956-903-A 9 20 374 94459481 97020954

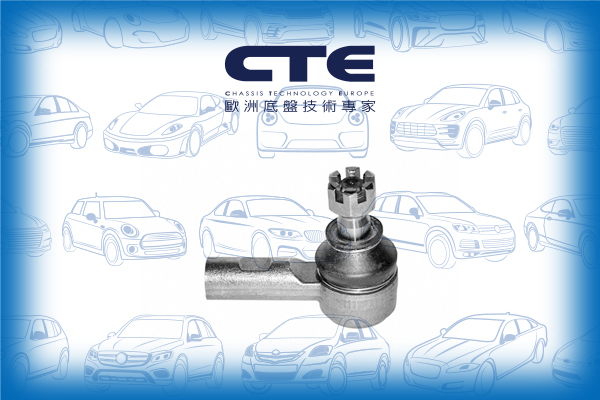

CTE08001R	FRONT AXLE RH (C= M14X1.5) INNER	03 24 057 09 20 373 094459480 097020953 3 24 057 8-94419-408-0 8-94459-480-0 8-94459-480-1 8-94459-480-2 8-97020-953-0 8-97020-953-1 8-97020-953-2 8-97940-616-0 8-97956-902-A 9 20 373 94459480 97020953
