Technical Specification Matrix

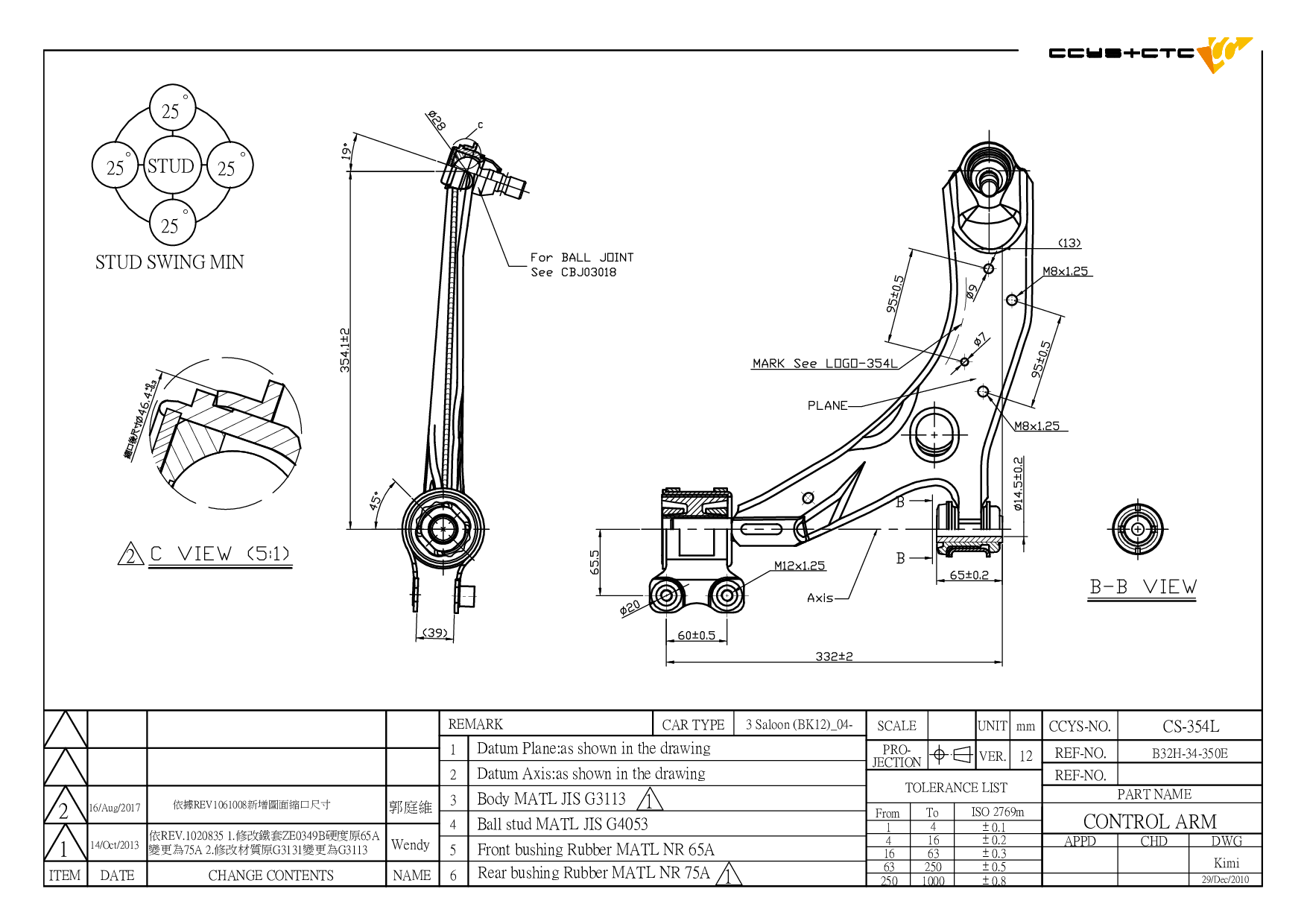

CS-354L 是 MAZDA 專用的 控制臂 (FRONT LOWER LH)。
本產品為 OEM 規格替代零件，適配原廠料號 B32H-34-350,B32H-34-350A,B32H-34-350B,B32H-34-350C,B32H-34-350D,B32H-34-350E,BP4K-34-350A,BP4K-34-350B,BP4K-34-350C,BP4K-34-350D,BP4K-34-350E,C513-34-350,CC30-34-350A,CC30-34-350B,CC30-34-350C,CC30-34-350D,CC30-34-350E,CD99-34-350A。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 465 mm |
| Width | 379 mm |
| Height | 110 mm |
| Net Weight | 4.8 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER |
|
|
 |
CBH03048 | REAR LINK |
|
|
 |
CBH03068 | FRONT LOWER ARM REAR |
|
|
 |
CBH03069 | FRONT LOWER ARM INNER |
|
|
 |
CBH03077 | REAR LOWER ARM OUTER |
|
|
 |
CBH03078 | REAR LOWER ARM INNER |
|
|
 |
CBJ03001 | FRONT LOWER LH/ RH |
|
|
 |
CBJ03018 | FRONT LOWER LH/ RH |
|
|
 |
CRE03056 | FRONT AXLE LH/ RH |
|
|
 |
CS-341 | REAR AXLE LH/ RH |
|
|
 |
CS-347 | REAR UPPER LH/ RH |
|
|
 |
CS-354L | FRONT LOWER LH |
|
|
 |
CS-354R | FRONT LOWER RH |
|
|
 |
CS-361 | REAR LOWER LH/ RH |
|
|
 |
CSL03037 | REAR (A= 76MM) |
|
|
 |
CSL03038 | FRONT (A= 306MM) |
|
| Model (Year) |
|---|
|
3 (BK) | AXELA 3 Saloon (BK) | AXELA 5 (CR) | PREMACY 5 (CW) | PREMACY |
