Control Arm

MAZDA / MPV I (LV) / Control Arm / FRONT LOWER LH/ RH / CS-325

Technical Specification Matrix

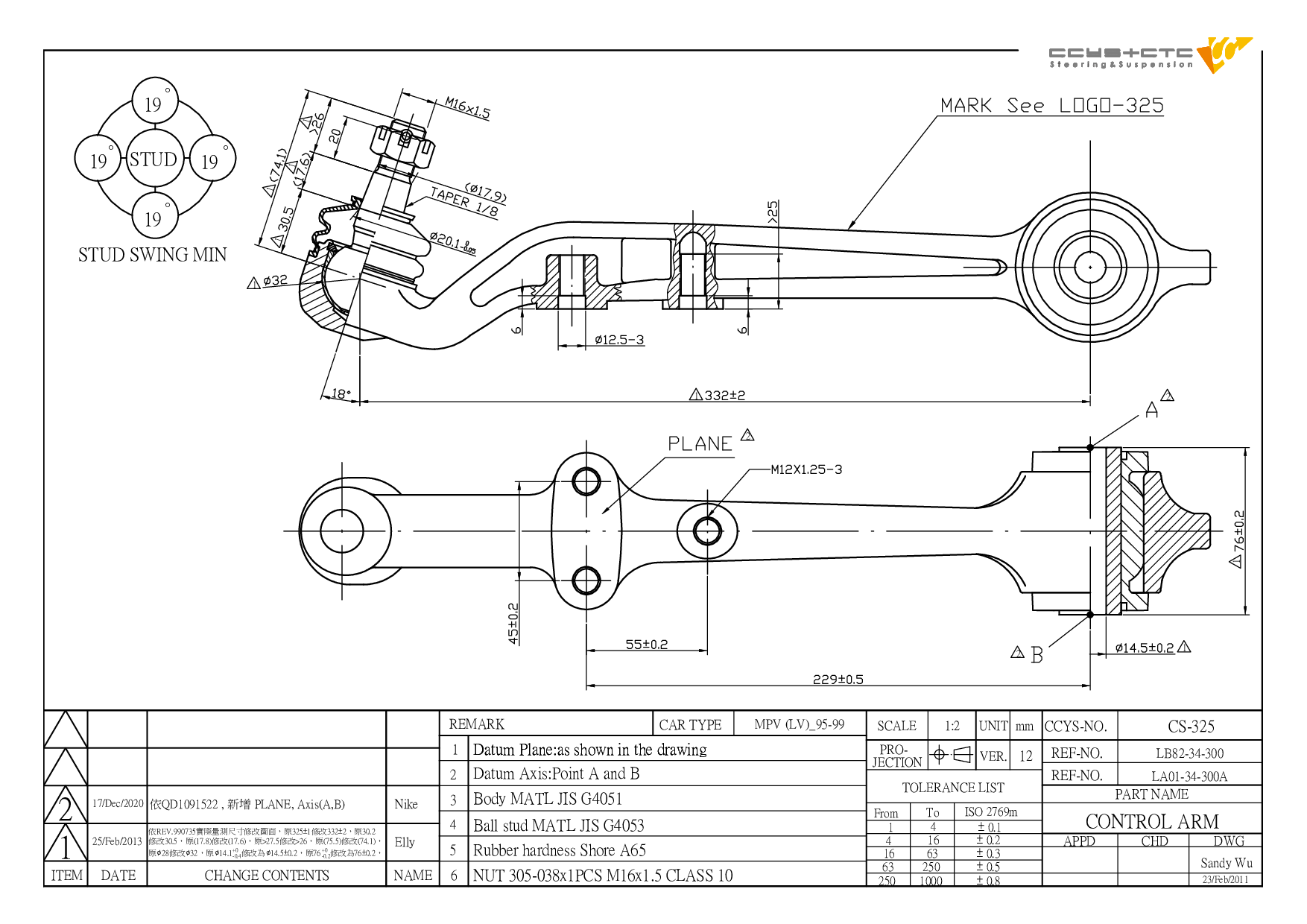

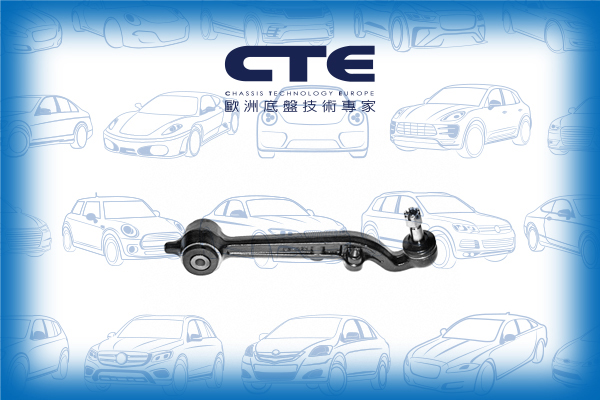

CS-325 是 MAZDA 專用的控制臂 (FRONT LOWER LH/ RH)。本產品為 OEM 規格替代零件，適配原廠料號 LA01-34-300A,LB82-34-300,LB82-34-300C。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH/ RH
OE 替代料號 (Original Equipment Numbers)	LA01-34-300A LB82-34-300 LB82-34-300C
Length	414 mm
Width	76 mm
Height	105 mm
Net Weight	3.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

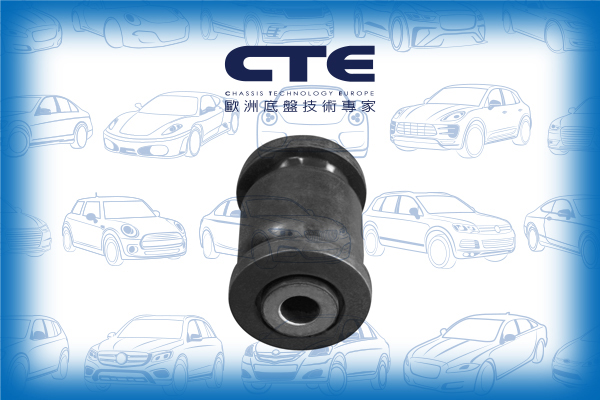

CBH03029	FRONT LOWER ARM INNER	LB41-34-460

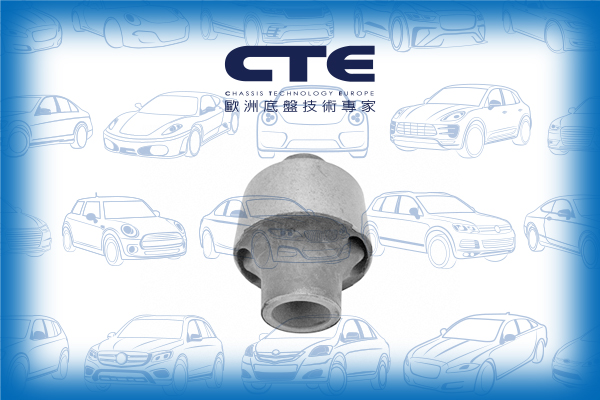

CBH03043	FRONT LOWER ARM REAR	LC62-34-460A LC62-34-460B

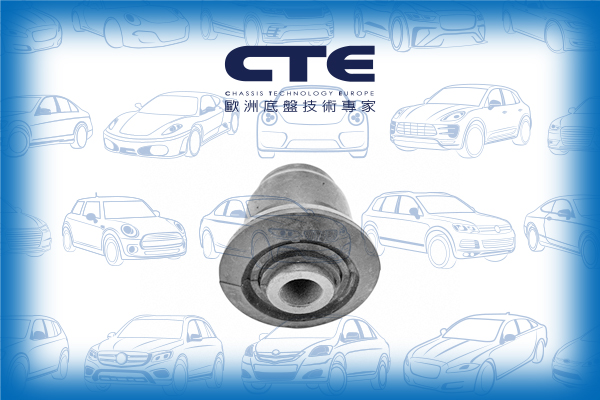

CBH03044	FRONT LOWER ARM INNER	LC62-34-470

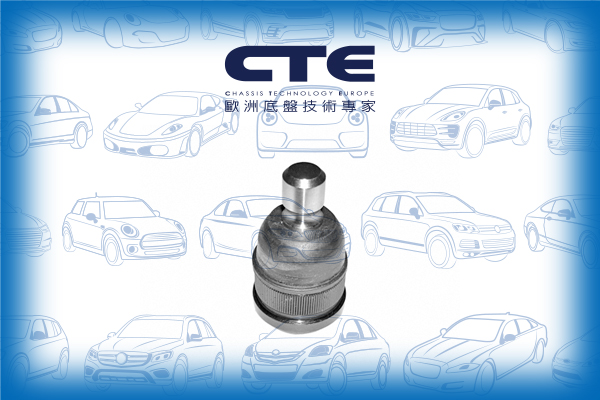

CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320

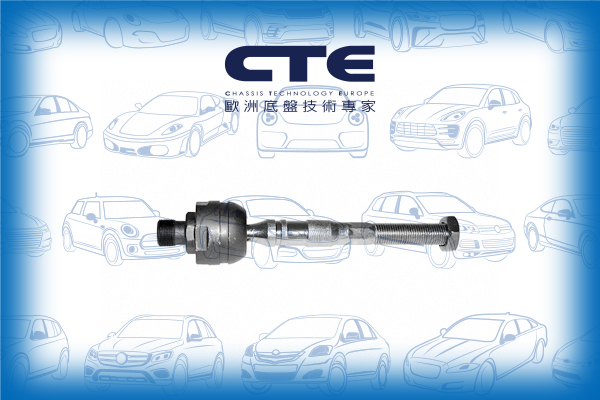

CRE03022	D= M14X1.5 , C= M17X1.0	LA01-32-115
CRE03063	FRONT AXLE LH/ RH	L029-32-110A S09A-32-110 S10H-32-110 S10H-32-110A S10H-32-250
CS-325	FRONT LOWER LH/ RH	LA01-34-300A LB82-34-300 LB82-34-300C

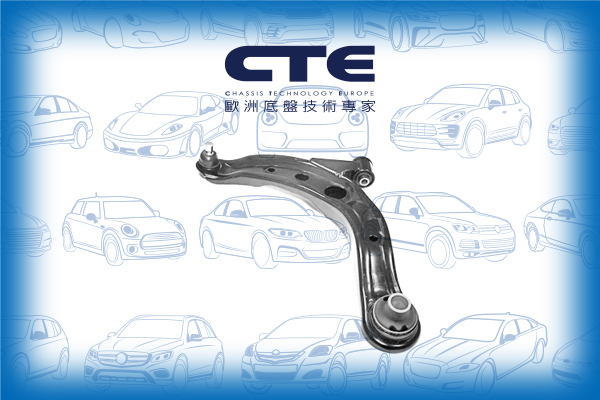

CS-338L	FRONT LOWER LH	K620340 LC62-34-350 LC62-34-350B LC62-34-350C

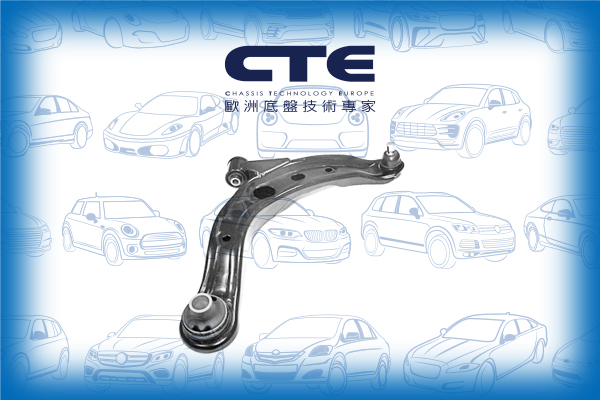

CS-338R	FRONT LOWER RH	K620339 LC62-34-300 LC62-34-300B LC62-34-300C

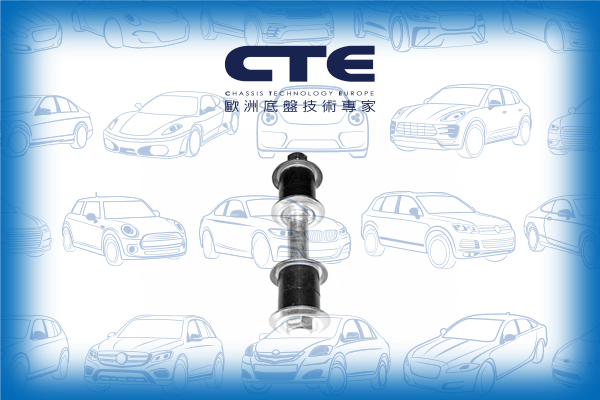

CSL03006	FRONT	0603-34-157 0603-34-157A 0603-34-158 603-34-157 603-34-157A 603-34-158 LB82-34-153

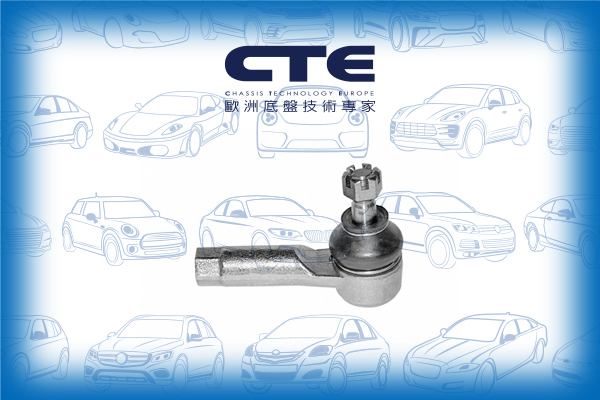

CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ
