Control Arm

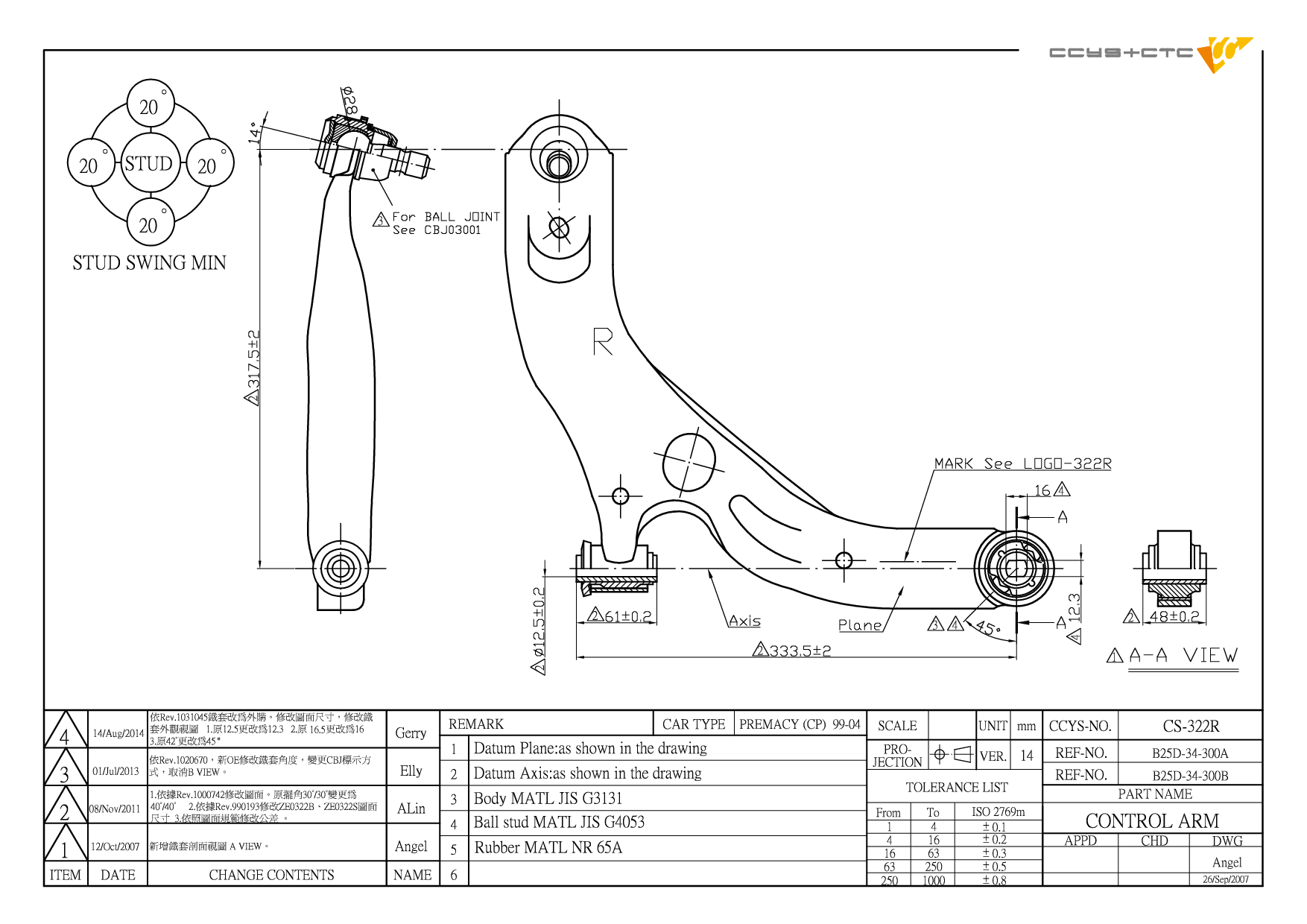

MAZDA / 323 F VI Hatchback (BJ) | 323 F/P | PROTEGE5 | FAMILIA / Control Arm / FRONT LOWER RH / CS-322R

Name: CS-322R
Brand: CTE
SKU: CS-322R
Price: 2150.00 TWD
Availability: InStock

Control Arm/MAZDA/323 F VI (BJ) | 323 F/P | FAMILIA/323 S VI (BJ) | PROTEGE | FAMILIA/PREMACY (CP)

Technical Specification Matrix

CS-322R 是 MAZDA 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 B25D-34-300,B25D-34-300A,B25D-34-300B,B25D-34-300C,B25D-34-300D,B25D-34-310A,B28V-34-300B,C100-34-300,C100-34-300A,C100-34-300B,C145-34-300,C145-34-300A,C145-34-300B。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	B25D-34-300 B25D-34-300A B25D-34-300B B25D-34-300C B25D-34-300D B25D-34-310A B28V-34-300B C100-34-300 C100-34-300A C100-34-300B C145-34-300 C145-34-300A C145-34-300B
Length	416 mm
Width	372 mm
Height	51 mm
Net Weight	3.7 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH03027	FRONT LOWER ARM REAR	B25D-34-460 B25D-34-460A C100-34-460A C100-34-460B C145-34-460
CBH03028	FRONT LOWER ARM INNER	B25D-34-470 B28V-34-470 C100-34-470A
CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320
CRE06063	FRONT AXLE LH/ RH	48521-2Y025 48521-2Y085 48521-2Y405 48521-2Y425 48521-2Y485 48521-5Y025 48521-5Y085 48521-5Y425 48521-5Y485
CS-322L	FRONT LOWER LH	B25D-34-350 B25D-34-350A B25D-34-350B B25D-34-350C B25D-34-350D B25D-34-360A B28V-34-350B C100-34-350 C100-34-350A C100-34-350B C145-34-350 C145-34-350A C145-34-350B
CS-322R	FRONT LOWER RH	B25D-34-300 B25D-34-300A B25D-34-300B B25D-34-300C B25D-34-300D B25D-34-310A B28V-34-300B C100-34-300 C100-34-300A C100-34-300B C145-34-300 C145-34-300A C145-34-300B
CSL03017	FRONT (A= 190MM)	B26R-34-170
CSL03033	REAR (A= 160MM)	B30H-28-170 B30H-28-170B
CSL03041	FRONT (A= 265MM)	82 00 669 066 83 00 166 160 LC62-34-170 LC62-34-170A LC62-34-170B LX62-34-170
CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ
