Control Arm
Technical Specification Matrix

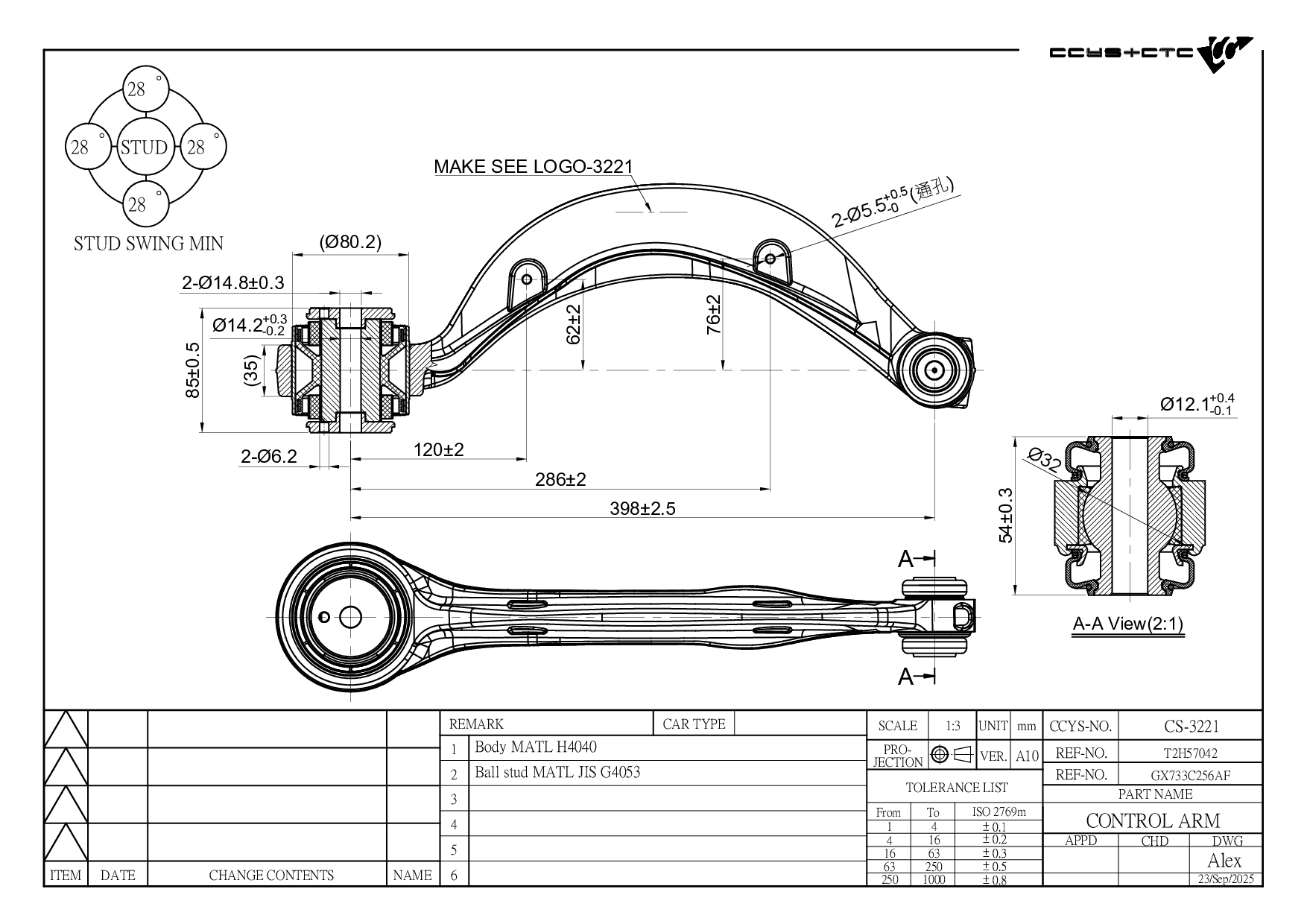

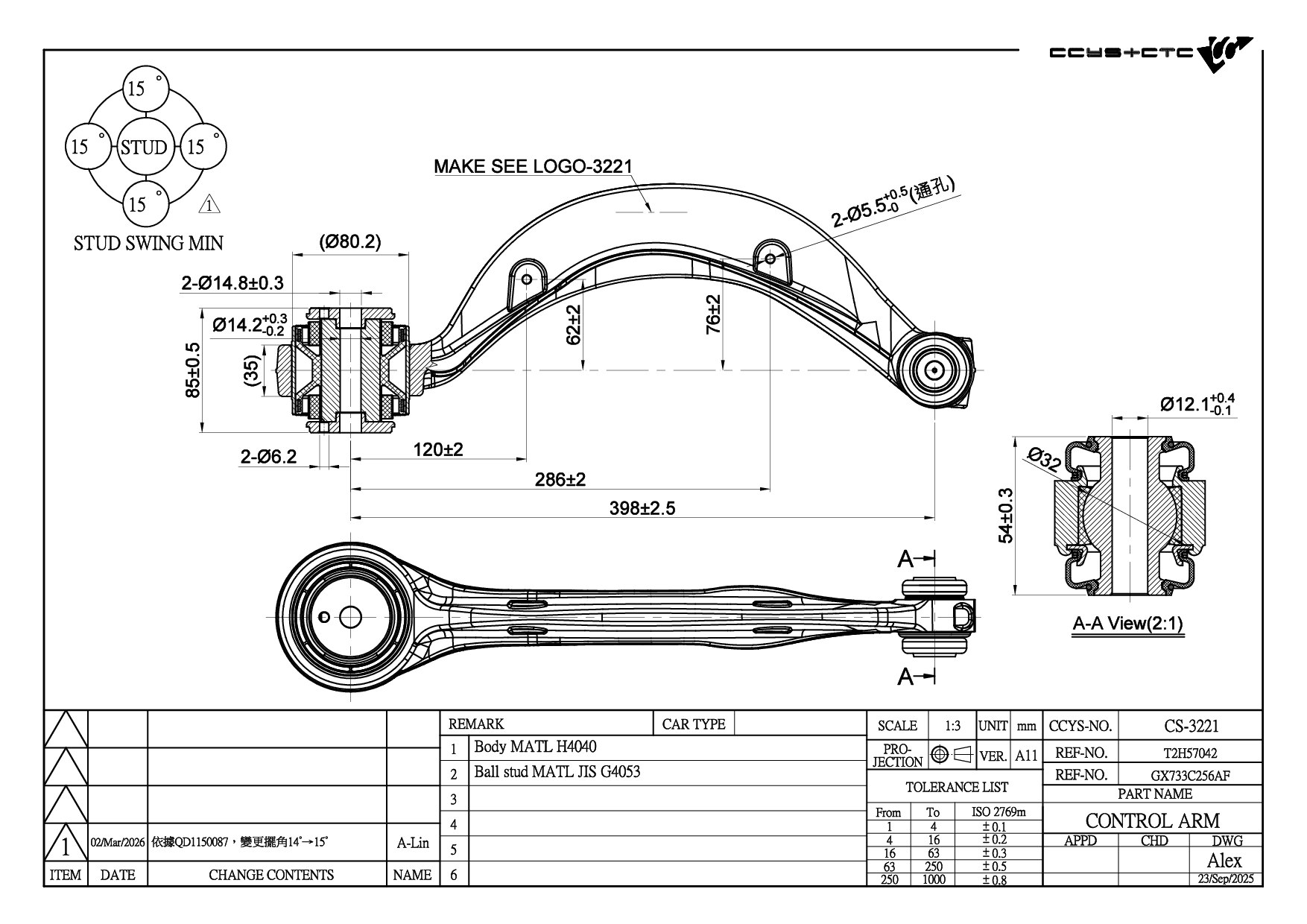

CS-3221 是 JAGUAR 專用的 控制臂 (FRONT LOWER LH/RH)。
本產品為 OEM 規格替代零件，適配原廠料號 GX733C256AC,GX733C256AE,GX733C256AF,T2H24313,T2H3196,T2H57042。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH/RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 480 mm |
| Width | 105 mm |
| Height | 170 mm |
| Net Weight | 2.5 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH31030 | FRONT UPPER ARM INNER |
|
|
 |
CBH32013 | FRONT LOWER ARM INNER |
|
|
 |
CBH32015 | FRONT LOWER ARM INNER |
|
|
 |
CBH32016 | FRONT LOWER ARM OUTER |
|
|
 |
CRE32003 | FRONT AXLE LH/ RH |
|
|
 |
CS-3210L | FRONT LOWER LH |
|
|
 |
CS-3210R | FRONT LOWER RH |
|
|
 |
CS-3217L | FRONT UPPER LH |
|
|
 |
CS-3217R | FRONT UPPER RH |
|
|
 |
CS-3221 | FRONT LOWER LH/RH |
|
|
 |
CS-3226 | REAR LOWER LH/ RH |
|
|
 |
CS-3230L | REAR UPPER LH |
|
|
 |
CS-3230R | REAR UPPER RH |
|
|
 |
CSL32010L | REAR AXLE LH |
|
|
 |
CSL32010R | REAR AXLE RH |
|
|
 |
CTE32006L | FRONT AXLE LH |
|
|
 |
CTE32006R | FRONT AXLE RH |
|
| Model (Year) |
|---|
|
XE (X760) XF II (X260) XF SPORTBRAKE (X260) |
