Control Arm

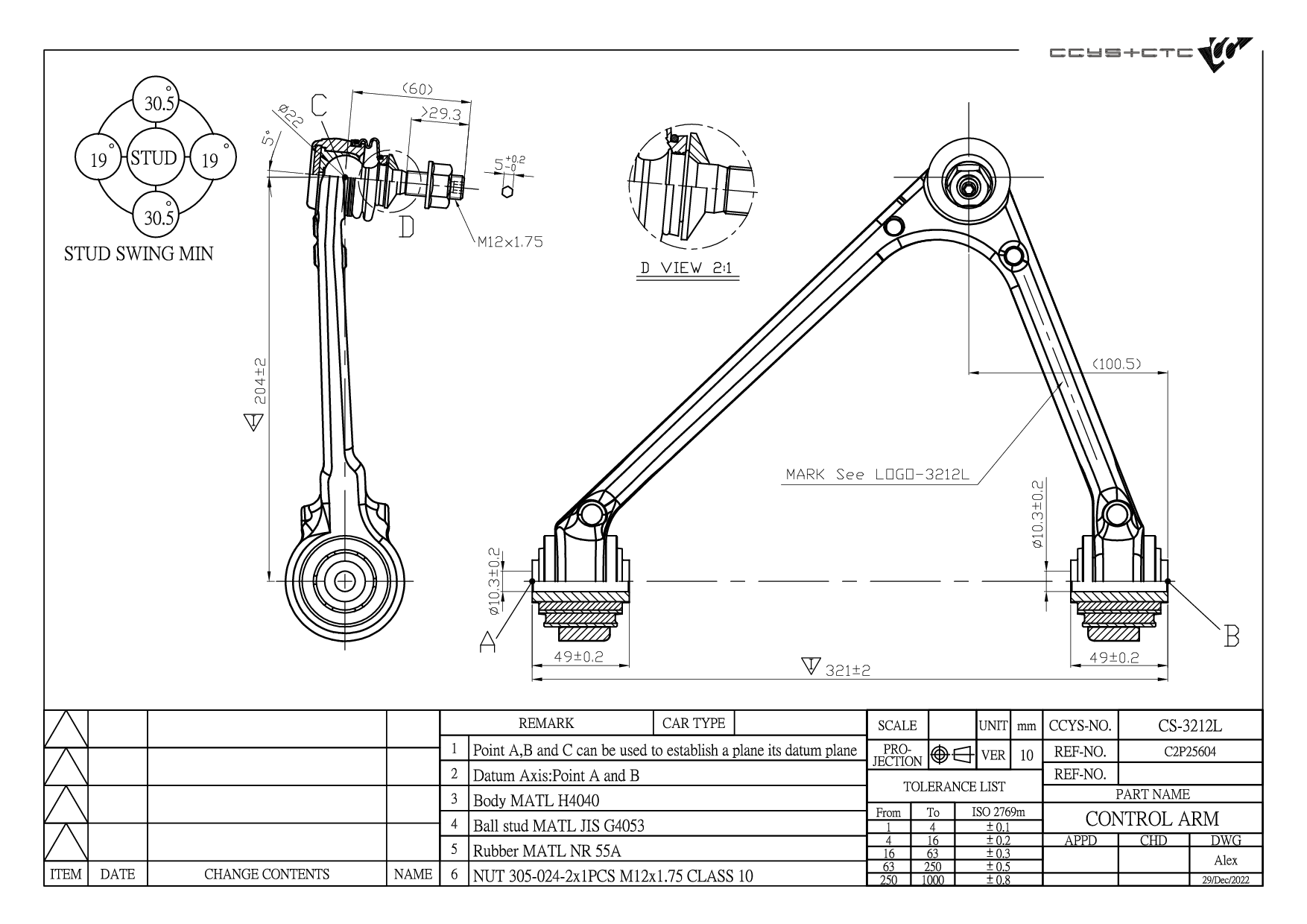

JAGUAR / F-TYPE Convertible (X152) / Control Arm / FRONT UPPER LH / CS-3212L

Technical Specification Matrix

CS-3212L 是 JAGUAR 專用的控制臂 (FRONT UPPER LH)。本產品為 OEM 規格替代零件，適配原廠料號 C2P16080,C2P16949,C2P25604,C2P9125。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER LH
OE 替代料號 (Original Equipment Numbers)	C2P16080 C2P16949 C2P25604 C2P9125
Length	321 mm
Width	254 mm
Height	95 mm
Net Weight	1.0 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH32010	FRONT LOWER ARM INNER	T2R6092
CRE32001	D= M14X1.5 , C= M16X1.5	8W833A705AA 8X233200AC 8X233200BC C2D21139 C2D28554 C2D44327 C2D47149 C2Z2214 C2Z2215 DW933200AC DW933K651AA GX533L519AA
CS-3204	FRONT LOWER LH/ RH	2W933C256AD 2W933C256AE 2W933C256AF 2W933C256BB 2W933C256BC 8X23-3C256-AC 8X23-3C256-AD C2C13829 C2C15324 C2C1801 C2C20618 C2C21984 C2C26261 C2C26835 C2C36013 C2C36868 C2C39683 C2C6500 C2Z10052 C2Z4457 T2R5102 XR845712
CS-3212L	FRONT UPPER LH	C2P16080 C2P16949 C2P25604 C2P9125
CS-3212R	FRONT UPPER RH	C2P16079 C2P16948 C2P25603 C2P9124
CS-3213L	FRONT LOWER LH	EX533C255AB EX533C255AC EX533C255AD T2R18064 T2R18865 T2R5962
CS-3213R	FRONT LOWER RH	EX533C254AB EX533C254AC EX533C254AD T2R18062 T2R18864 T2R5950
CS-3215L	FRONT LOWER LH	GX533C255AC GX53-3C255-AC T2R7902
CS-3215R	FRONT LOWER RH	GX533C254AC GX53-3C254-AC T2R7878
CSL32001L	REAR LH (A= 219.3MM)	2W935D498BB 2W935D498BD C2C18572 C2D49529 XR81693 XW435D498AB XW4Z-5C487-AB
CSL32001R	REAR RH (A= 219.3MM)	2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB
CSL32002	FRONT (A= 146MM)	2W93-5K483-AC 2W93-5K483-AD 2W93-5K483-CB C2C10793 C2C18573 C2C39468 C2D11879 C2D24220 EX53-5K483-AA GX73-3B438-AA T4N1048 XR822199
