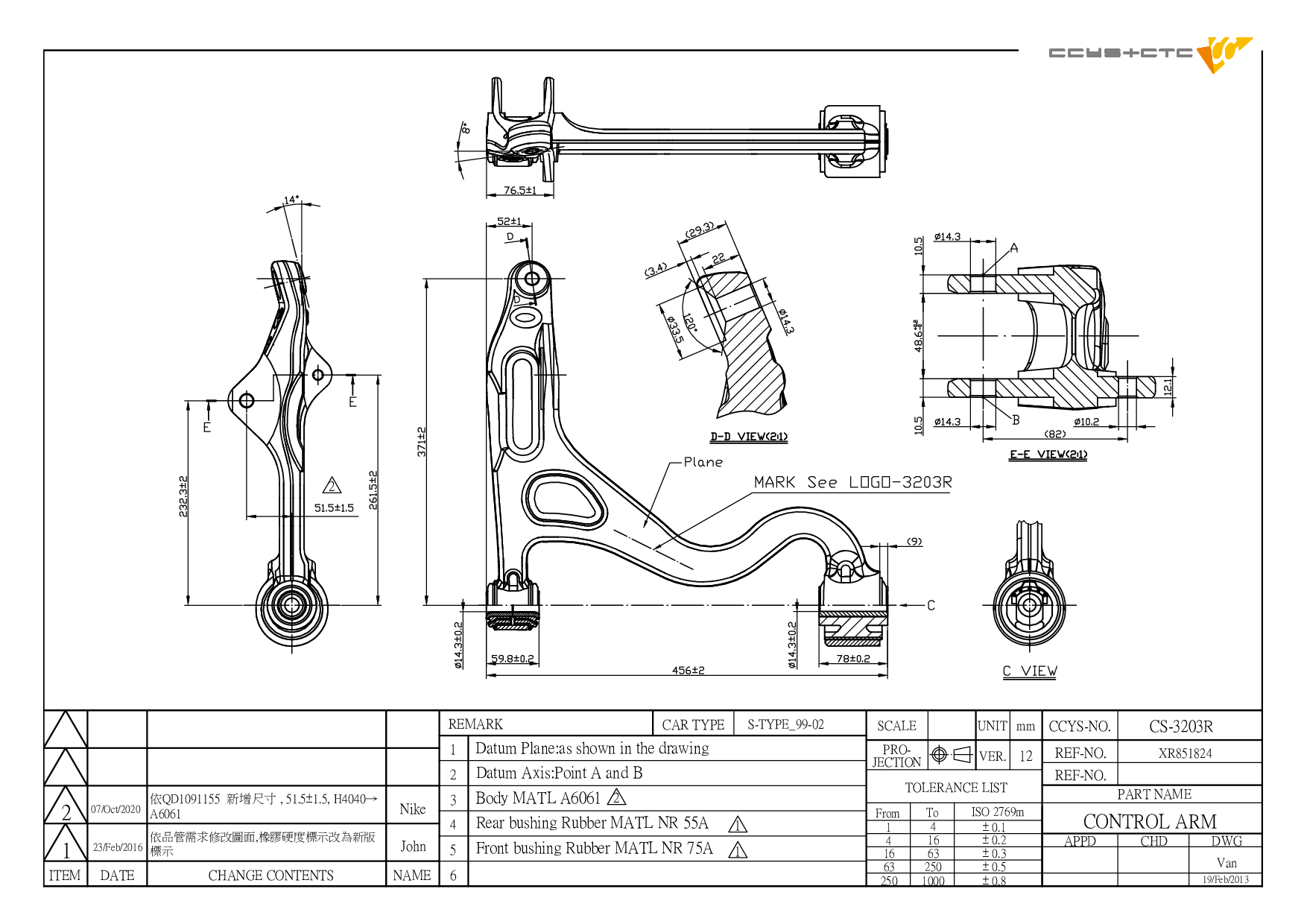

Control Arm

JAGUAR / S-TYPE II (X200) / Control Arm / FRONT LOWER RH / CS-3203R

Name: CS-3203R
Brand: CTE
SKU: CS-3203R
Price: 10428.00 TWD
Availability: InStock

(X200) VIN to M45254

Technical Specification Matrix

CS-3203R 是 JAGUAR 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 2W4Z 3078 AA,XR817609,XR81806,XR822851,XR833A052AB,XR833A052AC,XR833A052AD,XR833A052AE,XR833A052AF,XR846022,XR851824,XR88757。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	2W4Z 3078 AA XR817609 XR81806 XR822851 XR833A052AB XR833A052AC XR833A052AD XR833A052AE XR833A052AF XR846022 XR851824 XR88757
Length	456 mm
Width	419 mm
Height	118 mm
Net Weight	4.4 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH32001	FRONT UPPER ARM INNER	2W933084AE 2W933084AF 2W933084AG 2W933084AH 2W933084AJ 2W933084AK 2W933084AL 2W933091AE 2W933091AF 2W933091AG 2W933091AH 2W933091AJ 2W933091AK 2W933091AL 4W433084AA 4W433091AA 4W4Z-3084-AA 4W4Z-3085-AA 6W433084AA 6W433084AC 6W433091AA 6W433091AC 6W4Z-3084
CBH32004	FRONT LOWER ARM INNER	2W933069AE 2W933069AF 2W933069AG 2W933069AH 2W933069AJ C2C13834 C2C26267 C2C26581 C2C26851 C2C36029 C2C4471 C2Z5119 XR845722
CBH32005	FRONT LOWER ARM REAR	JLM21535
CBH32007	FRONT LOWER ARM INNER	2W4Z 3078 AA 2W4Z 3079 AA XR817609 XR817610 XR81806 XR81807 XR822851 XR822852 XR833A052AB XR833A052AC XR833A052AD XR833A052AE XR833A052AF XR833A053AB XR833A053AC XR833A053AD XR833A053AE XR833A053AF XR846022 XR846023 XR851824 XR851825 XR88757 XR88758
CBH32016	FRONT LOWER ARM OUTER	2W933C254BA 2W933C254BB 2W933C254CA 2W933C254CB 2W933C255BA 2W933C255BB 2W933C255CA 2W933C255CB 6W833C254AB 6W833C255AB AW935K486B C2C12101 C2C12120 C2C1799 C2C1800 C2C18325 C2C18351 C2C36795 C2C36867 C2C41027 C2C41387 C2C6533 C2D6787 C2P1051 C2P1052 C2P1
CBH32017	FRONT LOWER ARM INNER	C2P7942
CBJ32002	FRONT LOWER LH/ RH	XR852807 XR852808
CBJ32003	FRONT LOWER LH/ RH	C2C22863 C2C22864 C2C25788 C2C25789 C2P16502 C2P16503 C2P23583 C2P23584 C2P25453 C2P25454 C2Z3054 C2Z3055
COS32001	FRONT
CS-3202L	FRONT UPPER LH	4W433091AA 4W4Z-3085-AA 6W433091AA 6W433091AC 6W4Z-3085-AA XR81764 XR852091 XR856013 XR858824
CS-3202R	FRONT UPPER RH	4W433084AA 4W4Z-3084-AA 6W433084AA 6W433084AC 6W4Z-3084-AA C2Z31676 XR81763 XR852090 XR856012
CS-3203L	FRONT LOWER LH	2W4Z 3079 AA XR817610 XR81807 XR822852 XR833A053AB XR833A053AC XR833A053AD XR833A053AE XR833A053AF XR846023 XR851825 XR88758
CS-3203R	FRONT LOWER RH	2W4Z 3078 AA XR817609 XR81806 XR822851 XR833A052AB XR833A052AC XR833A052AD XR833A052AE XR833A052AF XR846022 XR851824 XR88757
CS-3204	FRONT LOWER LH/ RH	2W933C256AD 2W933C256AE 2W933C256AF 2W933C256BB 2W933C256BC 8X23-3C256-AC 8X23-3C256-AD C2C13829 C2C15324 C2C1801 C2C20618 C2C21984 C2C26261 C2C26835 C2C36013 C2C36868 C2C39683 C2C6500 C2Z10052 C2Z4457 T2R5102 XR845712
CS-3205L	FRONT UPPER LH	C2Z2279 C2Z29117 XR822285 XR842383 XR857079 XR857653 XR857884
CS-3205R	FRONT UPPER RH	C2Z2278 C2Z29115 XR822284 XR842382 XR857078 XR857652 XR857883

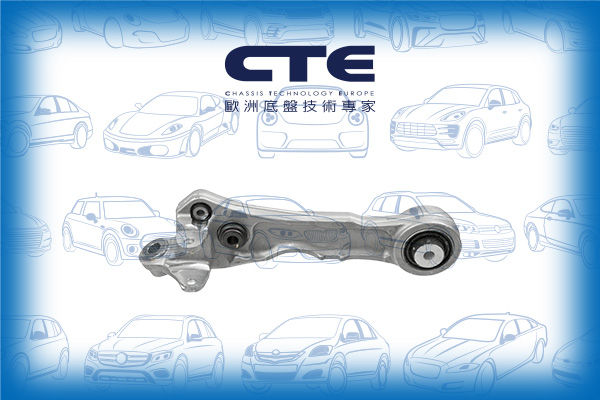

CS-3219L	FRONT LOWER LH	2W933C255BA 2W933C255BB 2W933C255CA 2W933C255CB 6W833C255AB C2C12120 C2C1800 C2C18351 C2C36867 C2C41027 C2P1052 C2P14506 C2P19955 C2P24862

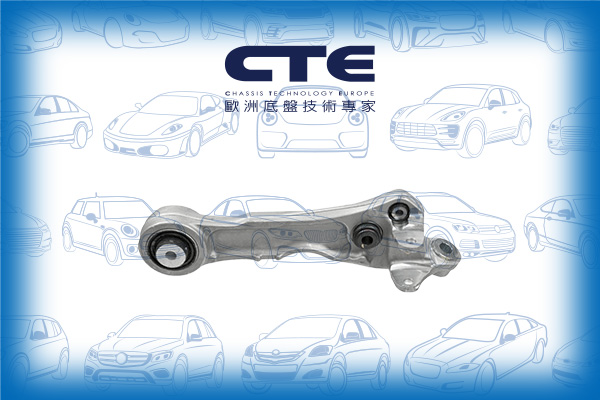

CS-3219R	FRONT LOWER RH	2W933C254BA 2W933C254BB 2W933C254CA 2W933C254CB 6W833C254AB C2C12101 C2C1799 C2C18325 C2C36795 C2C41387 C2C6533 C2P1051 C2P14505 C2P19954 C2P24861
CS-3227	FRONT LOWER LH/ RH	C2D21147
CS-3231L	REAR UPPER LH	1W43-5K743-AA 2R83-5K743-AA 2R83-5K743-AC 2R83-5K743-AD 2R83-5K743-AF 2W43-5K743-AA 6W4Z-5500-AB 8X23-5K743-AB 8X23-5K743-AD C2C10226 C2C10439 C2C6777 C2C9219 C2D36811 C2D45610 C2D49449 C2P13877 C2P14597 C2Z31679 XR81853 XR848943 XR857655 XR857872 XW43-5K
CS-3231R	REAR UPPER RH	1W43-5K742-AA 2R83-5K742-AA 2R83-5K742-AC 6W4Z-5500-AA C2C10438 C2C6776 C2C9213 C2D36810 C2D45608 C2D49448 C2P13876 C2P14596 C2Z31678 XR81852 XR848942 XR857654 XR857871 XW43-5K742-AC
CSL32001L	REAR LH (A= 219.3MM)	2W935D498BB 2W935D498BD C2C18572 C2D49529 XR81693 XW435D498AB XW4Z-5C487-AB
CSL32001R	REAR RH (A= 219.3MM)	2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB
CSL32002	FRONT (A= 146MM)	2W93-5K483-AC 2W93-5K483-AD 2W93-5K483-CB C2C10793 C2C18573 C2C39468 C2D11879 C2D24220 EX53-5K483-AA GX73-3B438-AA T4N1048 XR822199
CSL32003	FRONT (A= 137MM)	1W435K483AA 1W4Z-5K484-AA 5W435K483AA 5W4Z-5K483-AA XR81694 XR827071 XR855185 XW435K483AC
CTE32001L	FRONT AXLE LH (C= M14X1.5)	2W933290CA C2C15228 C2C20177 C2C35783 C2C8371 C2D47155 XR81771
CTE32001R	FRONT AXLE RH (C= M14X1.5)	2W933289CA C2C15227 C2C20176 C2C8370 C2D47153 XR81770
CTE32003	REAR AXLE LH/ RH	C2C13835 C2C1802 C2C18419 C2C24305 C2C36985 C2D49813 C2D49814 C2D51041 C2D51042 C2D51043 C2D51044 C2D5361 C2D5992 C2D5993 C2Z3208
