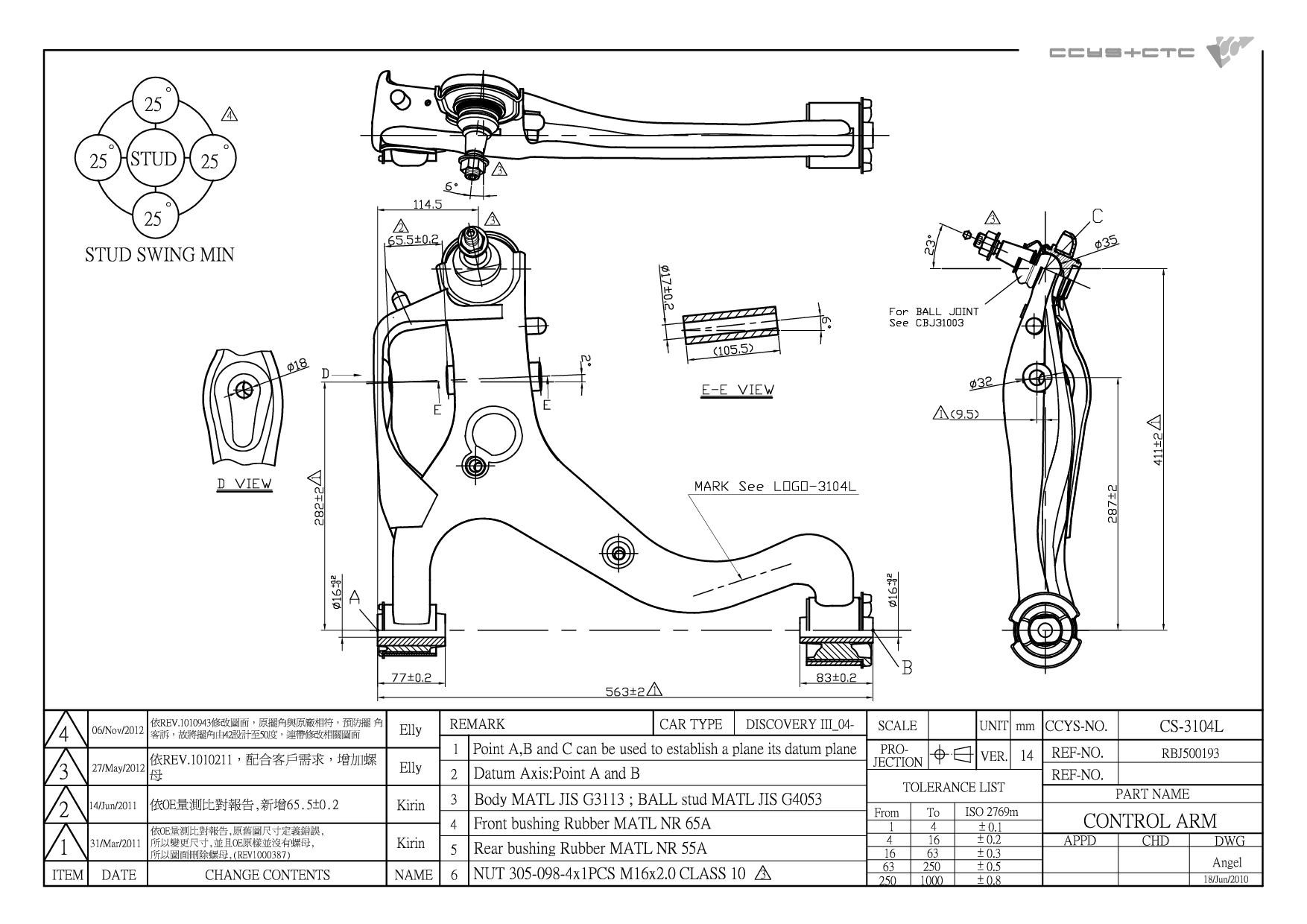

Control Arm
Technical Specification Matrix
CS-3104L 是 LAND ROVER 專用的 控制臂 (FRONT LOWER LH (AIR SUSP.))。
本產品為 OEM 規格替代零件，適配原廠料號 LR014138,LR028249,RBJ500193,RBJ501250,RBJ501350,RBJ501470,RBJ501550。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH (AIR SUSP.) |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 570 mm |
| Width | 499 mm |
| Height | 133 mm |
| Net Weight | 10.6 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH31007 | FRONT LOWER ARM REAR |
|
|
 |
CBH31008 | FRONT LOWER ARM INNER |
|
|
 |
CBH31012 | REAR UPPER REAR |
|
|
 |
CBH31013 | REAR UPPER INNER |
|
|
|
CBH31014 | REAR LOWER REAR |
|
|
|
CBH31015 | REAR LOWER INNER |
|
|
 |
CBH31016 | FRONT UPPER ARM INNER |
|
|
 |
CBJ31003 | FRONT LOWER LH/ RH |
|
|
 |
CBJ31007 | FRONT UPPER LH/ RH |
|
|
 |
CRE31001L | LH D= M16X1.5 , C= M20X1.5 |
|
|
 |
CRE31001R | RH D= M16X1.5 , C= M16X1.5 |
|
|
 |
CS-3104L | FRONT LOWER LH (AIR SUSP.) |
|
|
 |
CS-3104R | FRONT LOWER RH (AIR SUSP.) |
|
|
 |
CS-3106L | FRONT UPPER LH |
|
|
 |
CS-3106R | FRONT UPPER RH |
|
|
 |
CS-3107L | FRONT LOWER LH (COIL SPRING SUSP.) |
|
|
 |
CS-3107R | FRONT LOWER RH (COIL SPRING SUSP.) |
|
|
 |
CS-3108L | FRONT UPPER LH |
|
|
 |
CS-3108R | FRONT UPPER RH |
|
|
 |
CS-3115L | REAR UPPER LH |
|
|
 |
CS-3115R | REAR UPPER RH |
|
|
 |
CS-3116L | REAR LOWER LH |
|
|
 |
CS-3116R | REAR LOWER RH |
|
|
 |
CSL31007 | FRONT (A= 286.5MM) |
|
|
 |
CSL31008 | REAR (A= 116.5MM) |
|
|
 |
CTE31003 | FRONT AXLE LH/ RH (C= M16X1.5) |
|
|
 |
CTE31010 | REAR AXLE LH/ RH |
|
| Model (Year) |
|---|
|
DISCOVERY III (L319) | LR3 DISCOVERY III VAN (L319) DISCOVERY IV (L319) | LR4 DISCOVERY IV VAN (L319) |
