Control Arm

MAZDA / 323 C IV (BG) | FAMILIA / Control Arm / FRONT LOWER RH / CS-304R

Name: CS-304R
Brand: CTE
SKU: CS-304R
Price: 1781.00 TWD
Availability: InStock

Control Arm/MAZDA/323 C IV (BG) | FAMILIA/323 F IV (BG) | FAMILIA / ASTINA/323 S IV (BG) | FAMILIA

Technical Specification Matrix

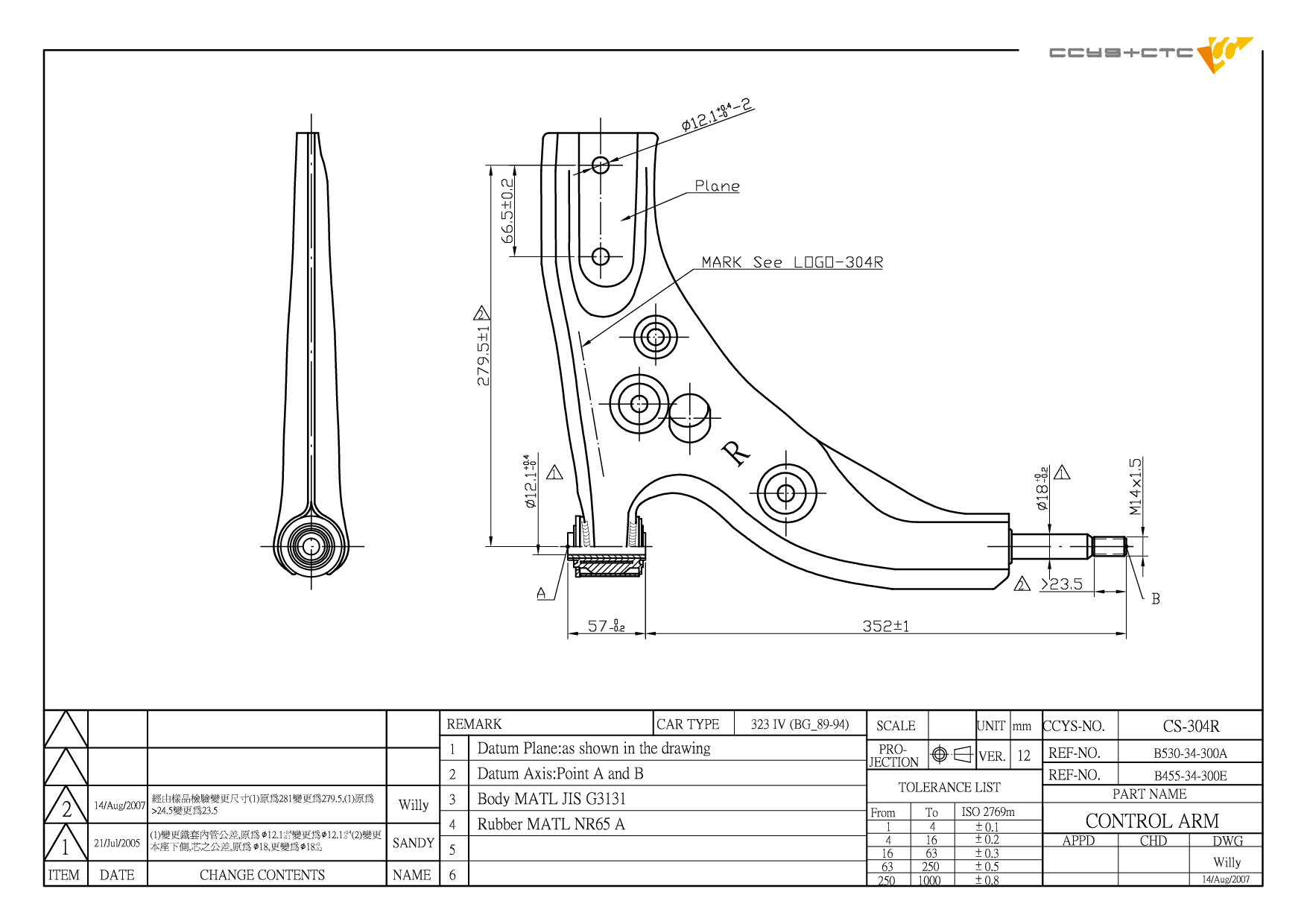

CS-304R 是 MAZDA 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 B455-34-300,B455-34-300B,B455-34-300E,B530-34-300A,BR70-34-300B,BR74-34-300B,BR74-34-300E,BS06-34-300C。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	B455-34-300 B455-34-300B B455-34-300E B530-34-300A BR70-34-300B BR74-34-300B BR74-34-300E BS06-34-300C
Length	429 mm
Width	334 mm
Height	55 mm
Net Weight	3.0 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH03005	FRONT LOWER ARM INNER	B210-34-470 B455-34-470
CBJ03008	FRONT LOWER LH/ RH	B455-34-550 B455345509A E016-34-550
CBJ03008A	FRONT LOWER LH/ RH	B455-34-550 B455345509A E016-34-550
CBJ03011A	FRONT LOWER LH/ RH	B01A-34-550 B01A-34-550A B455-34-091 B530-33-020A B530-33-020B B530-33-020E B530-33-030A B530-33-030B B530-33-030D B530-33-030E B531-33-020A B531-33-020B B531-33-020D B531-33-030A B531-33-030B B531-33-030D B7DA34550 BTA34550 BTDA-34-550 BTDA-34-5509A BTDA
CRE03018	D= M14X1.5 , C= M18X1.5	B455-32-25X B456-32-25X GJ21-32-240 GJ22-32-240
CRE03019	D= M12X1.25 , C= M16X1.0	B455-32-24X BS06-32-240 F1CZ-3280A
CRE03023	D= M12X1.25 , C= M16X1.0	B455-32-25X B456-32-25X
CRE03065	FRONT AXLE LH/ RH	B456-32-24X
CS-304L	FRONT LOWER LH	B455-34-350 B455-34-350B B455-34-350E B530-34-350A BR70-34-350B BR74-34-350B BR74-34-350E BS06-34-350C
CS-304R	FRONT LOWER RH	B455-34-300 B455-34-300B B455-34-300E B530-34-300A BR70-34-300B BR74-34-300B BR74-34-300E BS06-34-300C
CS-361	REAR LOWER LH/ RH	1223951 1231454 1253733 1335249 1548460 30639917 30666105 31277584 3M515K652AA 3M515K652AB 3M515K652AC 4M515K652CA 4M515K652CB 8646157 8646158 BBP3-28-300A BBP3-28-300B BBP3-28-300C BP4K-28-300A BP4K-28-300B BP4K-28-300C BP4K-28-300D BP4K-28-300E C236-28-
CSL03007	FRONT AXLE	8AB2-34-100B
CSL03012	REAR AXLE (A=135MM)
CSL03017	FRONT (A= 190MM)	B26R-34-170
CSL26019	FRONT REAR AXLE (A=135MM)	54825-22000 8AB2-34-100 8AB2-34-100A 8AB2-34-100B
CTE03007	FRONT AXLE LH/ RH (C= M12X1.25)	8AB2-32-280 B455-32-280
