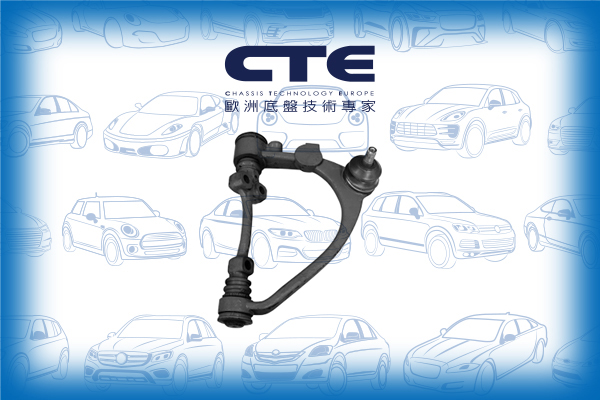

Control Arm

TOYOTA / DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 / Control Arm / FRONT UPPER RH / CS-250R

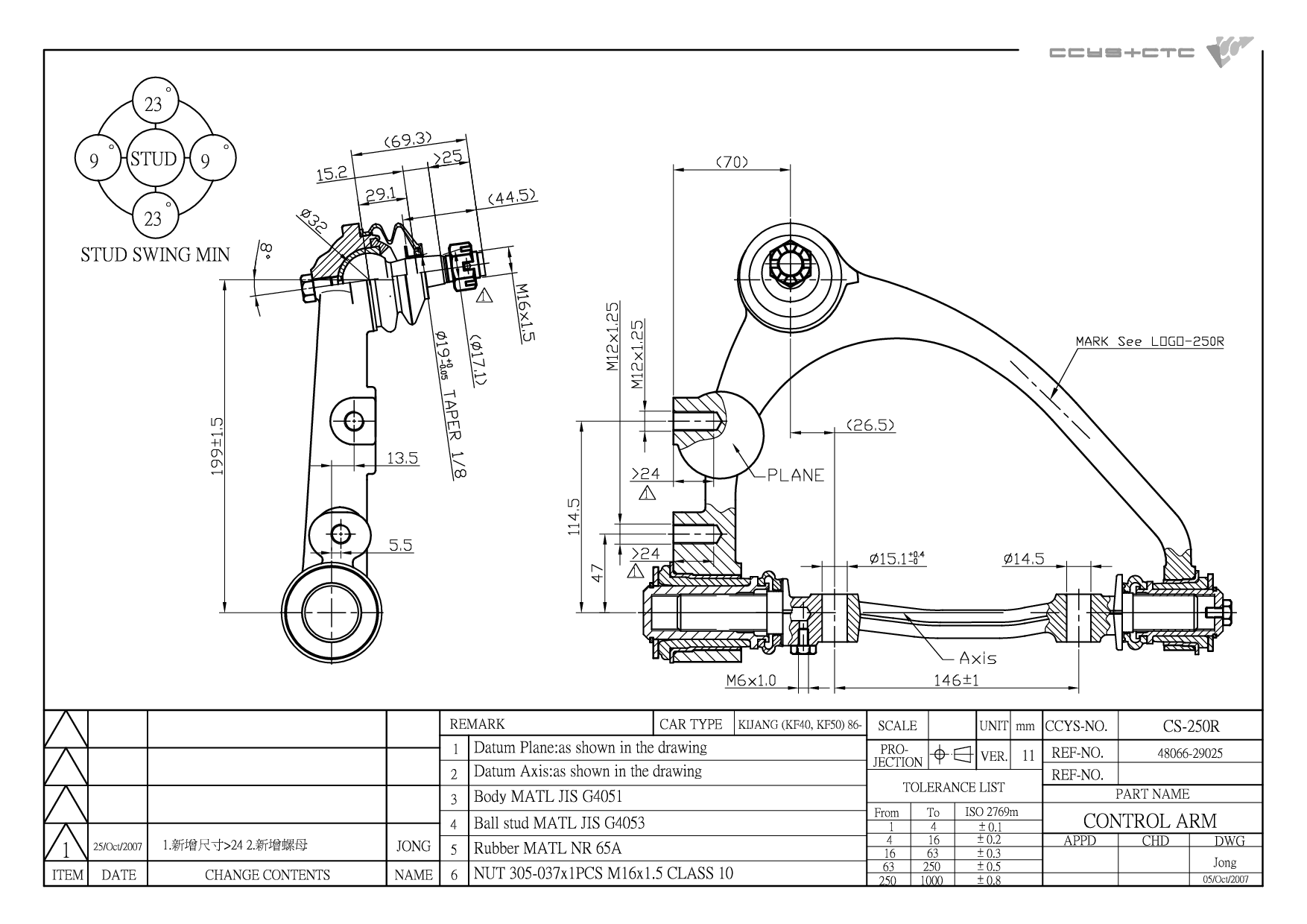

Technical Specification Matrix

CS-250R 是 TOYOTA 專用的控制臂 (FRONT UPPER RH)。本產品為 OEM 規格替代零件，適配原廠料號 48066-26050,48066-29025,48066-29035,48066-29155。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER RH
OE 替代料號 (Original Equipment Numbers)	48066-26050 48066-29025 48066-29035 48066-29155
Length	352 mm
Width	263 mm
Height	122 mm
Net Weight	5.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH02016	FRONT LOWER ARM INNER	48061-26010 48061-26030 48061-26031 48061-26050 48061-35010 48061-35011
CBJ02008	FRONT LOWER LH/ RH	43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45
CBJ02008A	FRONT LOWER LH/ RH	43330-39265 43330-39315 43330-39835 43340-39245 J43 330 393 15 J43 340 392 45
CBJ02011	FRONT LOWER LH/ RH	43330-29255 43330-39195 43340-39175 43340-39235 43340-39255
CRE02024	D= M17X1.5 , C= M14X1.5	45503-29265

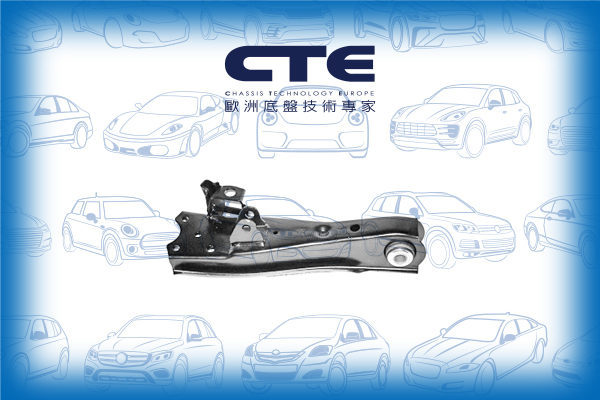

CS-222L	FRONT LOWER LH	48069-26020 48069-26H00

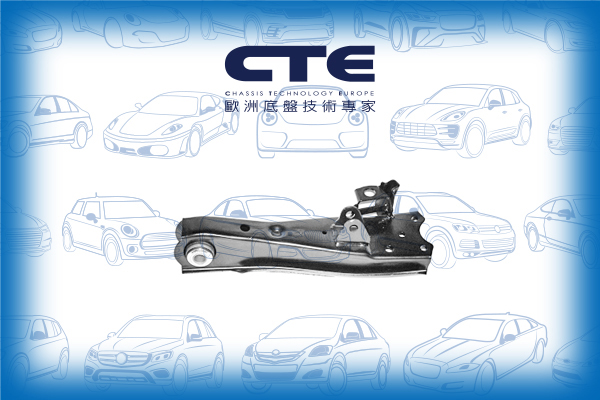

CS-222R	FRONT LOWER RH	48068-26020 48068-26H00

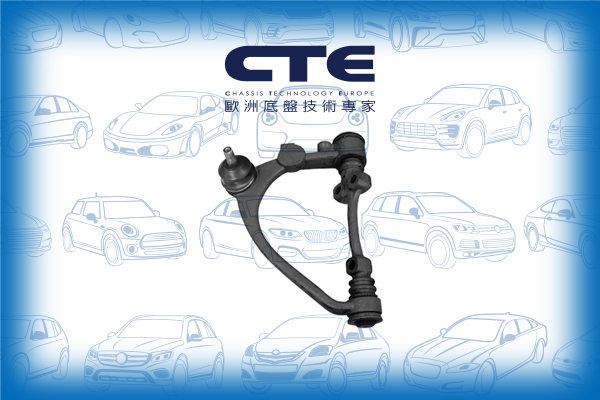

CS-250L	FRONT UPPER LH	48067-26050 48067-29025 48067-29035 48067-29155
CS-250R	FRONT UPPER RH	48066-26050 48066-29025 48066-29035 48066-29155

Model (Year)
DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8 HIACE III Bus (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE III Van (_H5_, _H6_, _H7_, _H8_, _H9_) HIACE IV Bus (_H1_) \| REGIUS HIACE IV Bus (__H1_, __H2_) HIACE IV Van (_H1_) HIACE IV Van (__H1_, __H2_)
