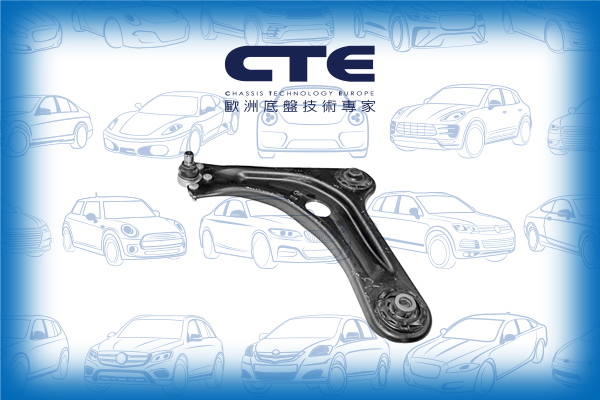

Control Arm

PEUGEOT / 1007 (KM_) / Control Arm / FRONT LOWER LH / CS-2502L

Name: CS-2502L
Brand: CTE
SKU: CS-2502L
Price: 2214.00 TWD
Availability: InStock

CITROEN C3 I (FC_,FN_) 1.1,1.4 year to 03.2007 for vehicles with heavy duty suspension country Brazil PRO no up to 10562
1.4 year to 03.2004 PRO no up to 10002 for vehicles with standard suspension

Control Arm/CITROËN/PEUGEOT/1007 (KM_)/C3 I (FC_, FN_)/C3 II (SC_)/C3 PICASSO (SH_)/C3 Pluriel (HB_)

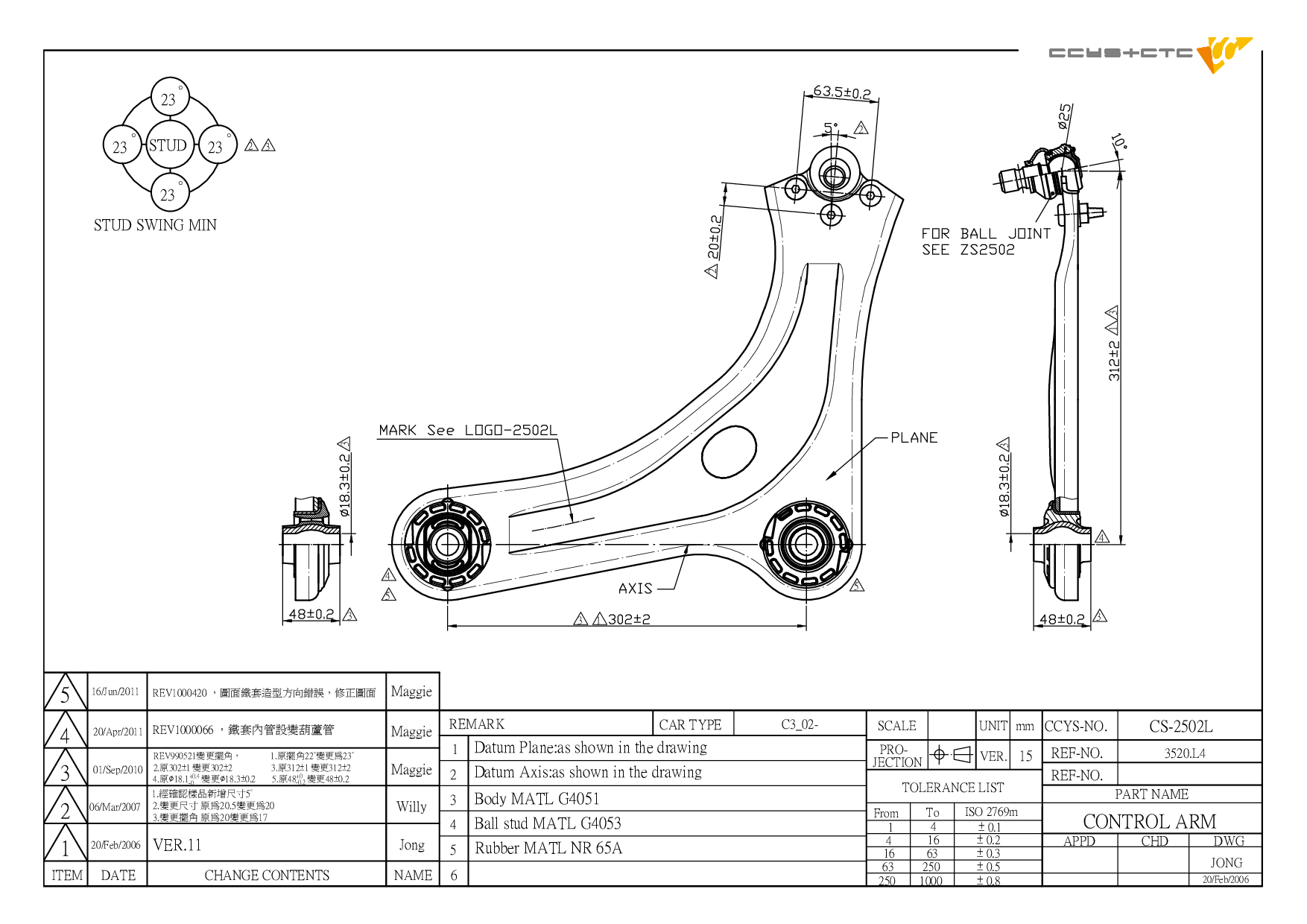

Technical Specification Matrix

CS-2502L 是 PEUGEOT 專用的控制臂 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 3520.L3,3520.L4,3520.Q0,3520.R0,3520.R1,3520.R5,3520.V1。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	3520.L3 3520.L4 3520.Q0 3520.R0 3520.R1 3520.R5 3520.V1
Length	429 mm
Width	381 mm
Height	77 mm
Net Weight	3.5 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.

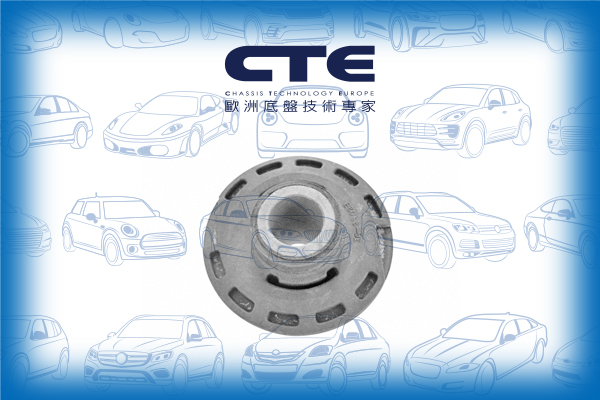

CBH25002	FRONT LOWER ARM REAR	3523.99 3523.AA 3523.AT 96 408 770 80

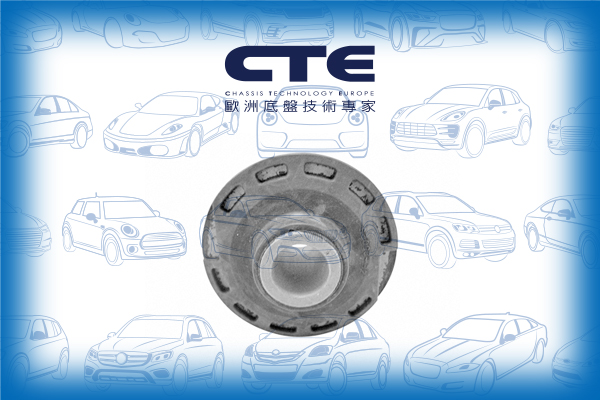

CBH25003	FRONT LOWER ARM INNER	3523.98 96 361 910 80

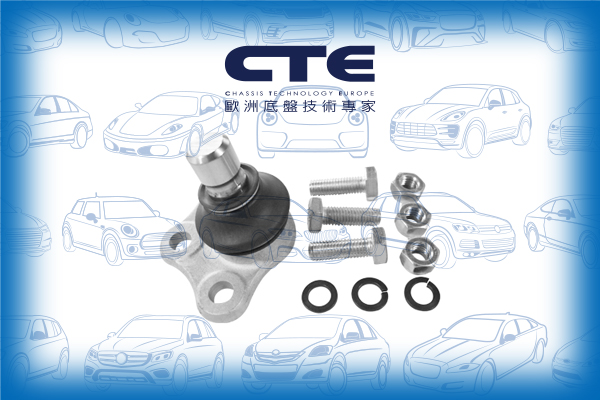

CBJ16011A	FRONT LOWER LH/ RH	16 072 984 80 16 072 985 80 3640.56 3640.59 3640.62 3640.66

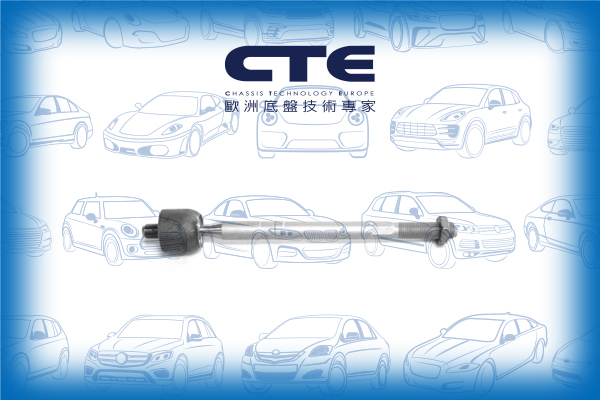

CRE25003	D= M14X1.5 , C= M12X1.0	3812.E1
CS-2502L	FRONT LOWER LH	3520.L3 3520.L4 3520.Q0 3520.R0 3520.R1 3520.R5 3520.V1

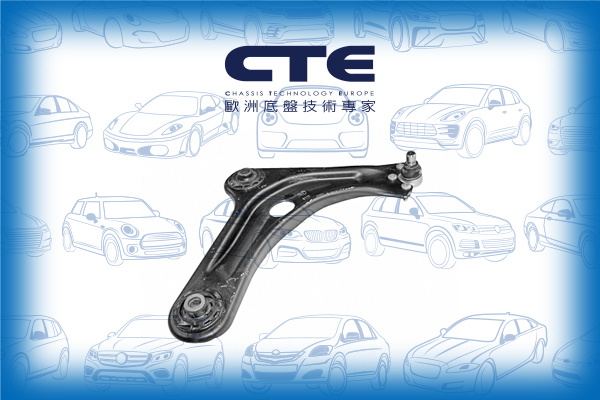

CS-2502R	FRONT LOWER RH	3521.H5 3521.H6 3521.L1 3521.N1 3521.N2 3521.N6 3521.R2
CS47012L	FRONT LOWER LH	1014013005
CS47012R	FRONT LOWER RH	1014013007
CSL16011	FRONT (A= 335MM)	16 073 234 80 16 466 219 80 5087.45 5087.59 5087.66 5087.71 5087.74 96288787 98 000 861 80 98 088 682 80 E459713
