Technical Specification Matrix

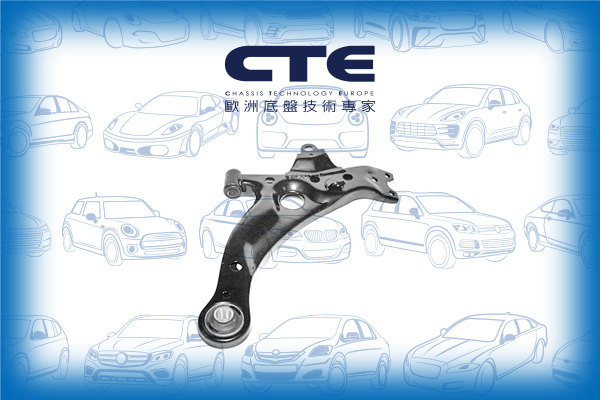

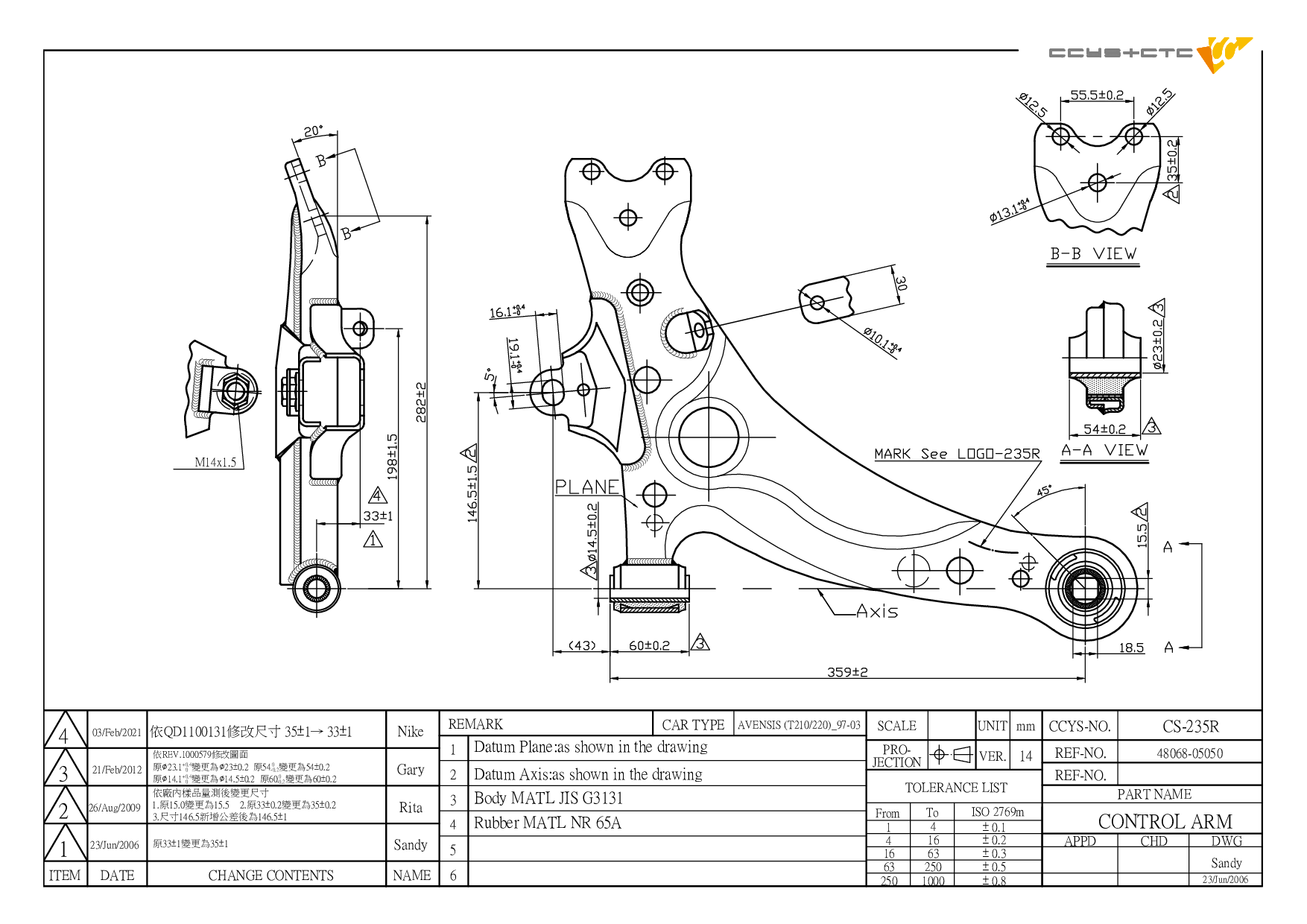

CS-235R 是 TOYOTA 專用的 控制臂 (FRONT LOWER RH)。
本產品為 OEM 規格替代零件，適配原廠料號 48068-05030,48068-05031,48068-05040,48068-05041,48068-05050,7476133。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 365 mm |
| Width | 460 mm |
| Height | 67 mm |
| Net Weight | 4.0 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH02022 | FRONT LOWER ARM REAR |
|
|
 |
CBH02023 | FRONT LOWER ARM INNER |
|
|
 |
CBJ02012A | FRONT LOWER LH/RH |
|
|
 |

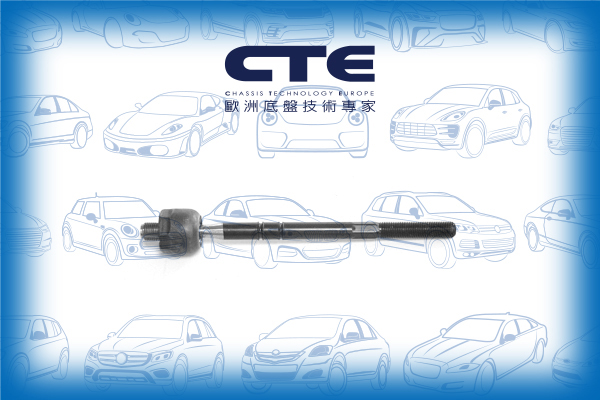

CRE02073 | D= M14X1.5 , C= M16X1.5 |
|
|
 |

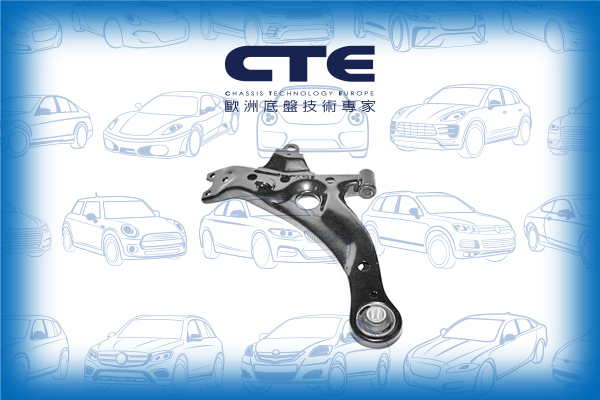

CS-235L | FRONT LOWER LH |
|
|
 |
CS-235R | FRONT LOWER RH |
|
|
 |

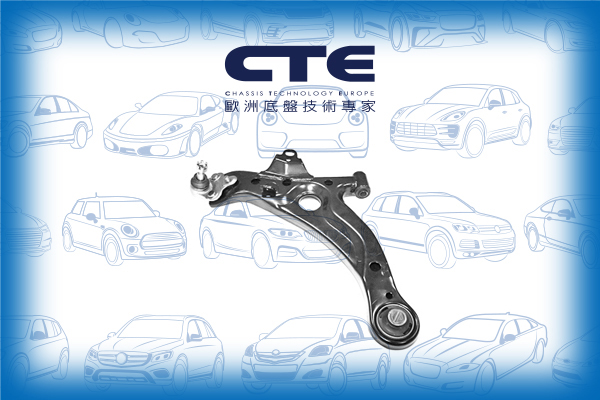

CS-237L | FRONT LOWER LH (W/ BJ) |
|
|
 |

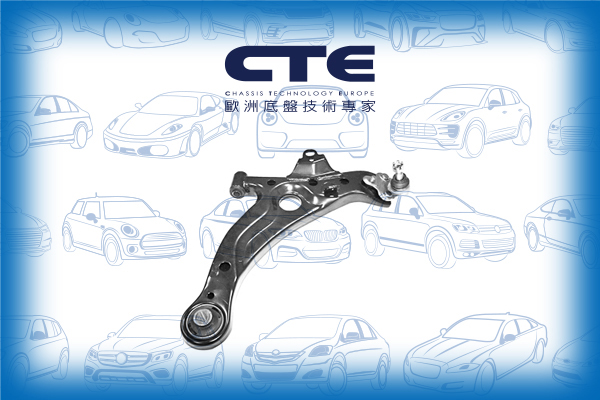

CS-237R | FRONT LOWER RH (W/ BJ) |
|
|
 |
CSL02031 | FRONT (A= 70MM) |
|
|
 |
CSL02036L | FRONT LH (A= 70MM) |
|
|
 |
CSL02036R | FRONT RH (A= 70MM) |
|
|
 |

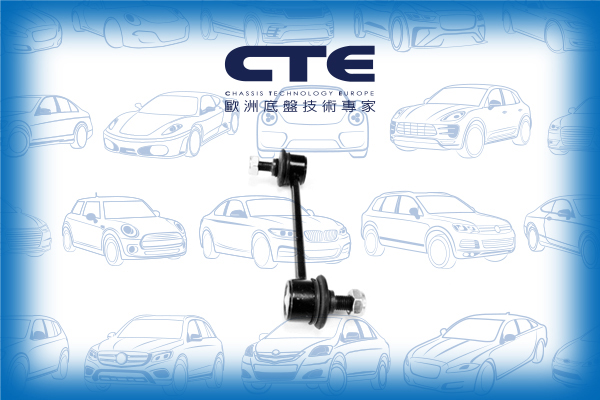

CSL02064 | REAR (A= 140MM) |
|
| Model (Year) |
|---|
|
AVENSIS (_T22_) AVENSIS Estate (_T22_) AVENSIS Liftback (_T22_) |
