Control Arm

MERCEDES-BENZ / B-CLASS Sports Tourer (W246, W242) / Control Arm / FRONT LOWER LH / CS-2149L

Name: CS-2149L
Brand: CTE
SKU: CS-2149L
Price: 6738.00 TWD
Availability: InStock

(W246) (C117) (X117) for vehicles with electronic suspension control
(X156) for veihcles without increased ground clearance.

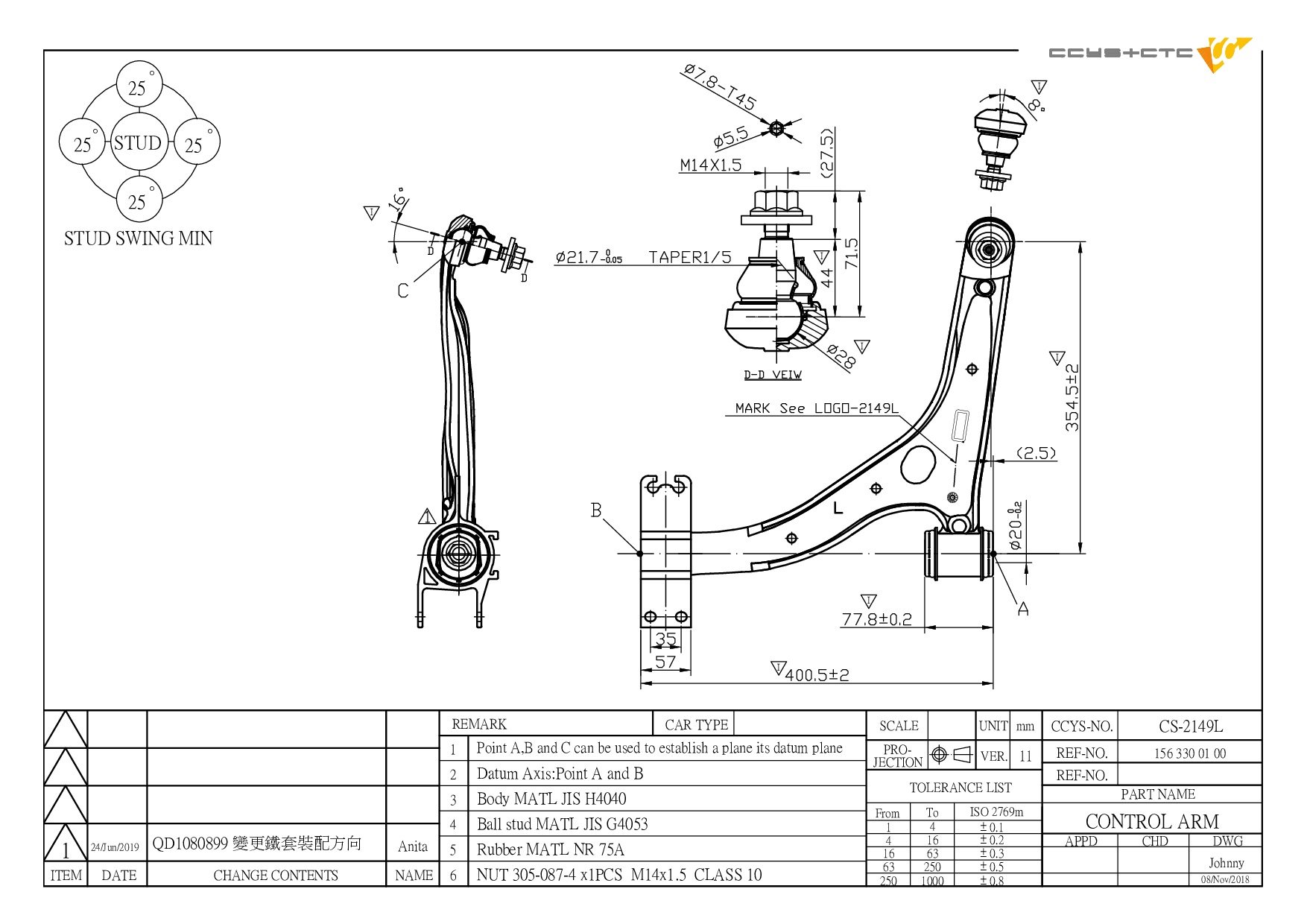

Technical Specification Matrix

CS-2149L 是 MERCEDES-BENZ 專用的控制臂 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 156 330 01 00,156 330 05 00,A156 330 01 00,A156 330 05 00。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	156 330 01 00 156 330 05 00 A156 330 01 00 A156 330 05 00
Length	232 mm
Width	213 mm
Height	60 mm
Net Weight	3.1 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH21042L	FRONT LOWER ARM LH	246 333 05 14 A246 333 05 14
CBH21042R	FRONT LOWER ARM RH	246 333 06 14 A246 333 06 14
CBH21043L	FRONT LOWER ARM LH REAR	246 333 00 14 246 333 01 00 A246 333 00 14 A246 333 01 00
CBH21043R	FRONT LOWER ARM RH REAR	246 333 02 00 246 333 02 14 A246 333 02 00 A246 333 02 14
CBH21044	FRONT LOWER ARM INNER	246 333 01 14 A246 333 01 14
CS-2132L	FRONT LOWER LH	242 330 07 00 246 330 17 07 246 330 47 00 545015DA0A 545015DJ0A A242 330 07 00 A246 330 17 07 A246 330 47 00
CS-2132R	FRONT LOWER RH	242 330 08 00 246 330 18 07 246 330 48 00 545005DA0A 545005DJ0A A242 330 08 00 A246 330 18 07 A246 330 48 00
CS-2149L	FRONT LOWER LH	156 330 01 00 156 330 05 00 A156 330 01 00 A156 330 05 00
CS-2149R	FRONT LOWER RH	156 330 02 00 156 330 06 00 A156 330 02 00 A156 330 06 00
CSL21031	FRONT LH/RH	246 320 00 89 246 320 06 89 54616-5DA0A 54618-HG00A 9846549080 A246 320 00 89 A246 320 06 89
CSL21056	FRONT AXLE LH/ RH	247 320 42 00 247 320 75 03 247 320 76 03
