Control Arm

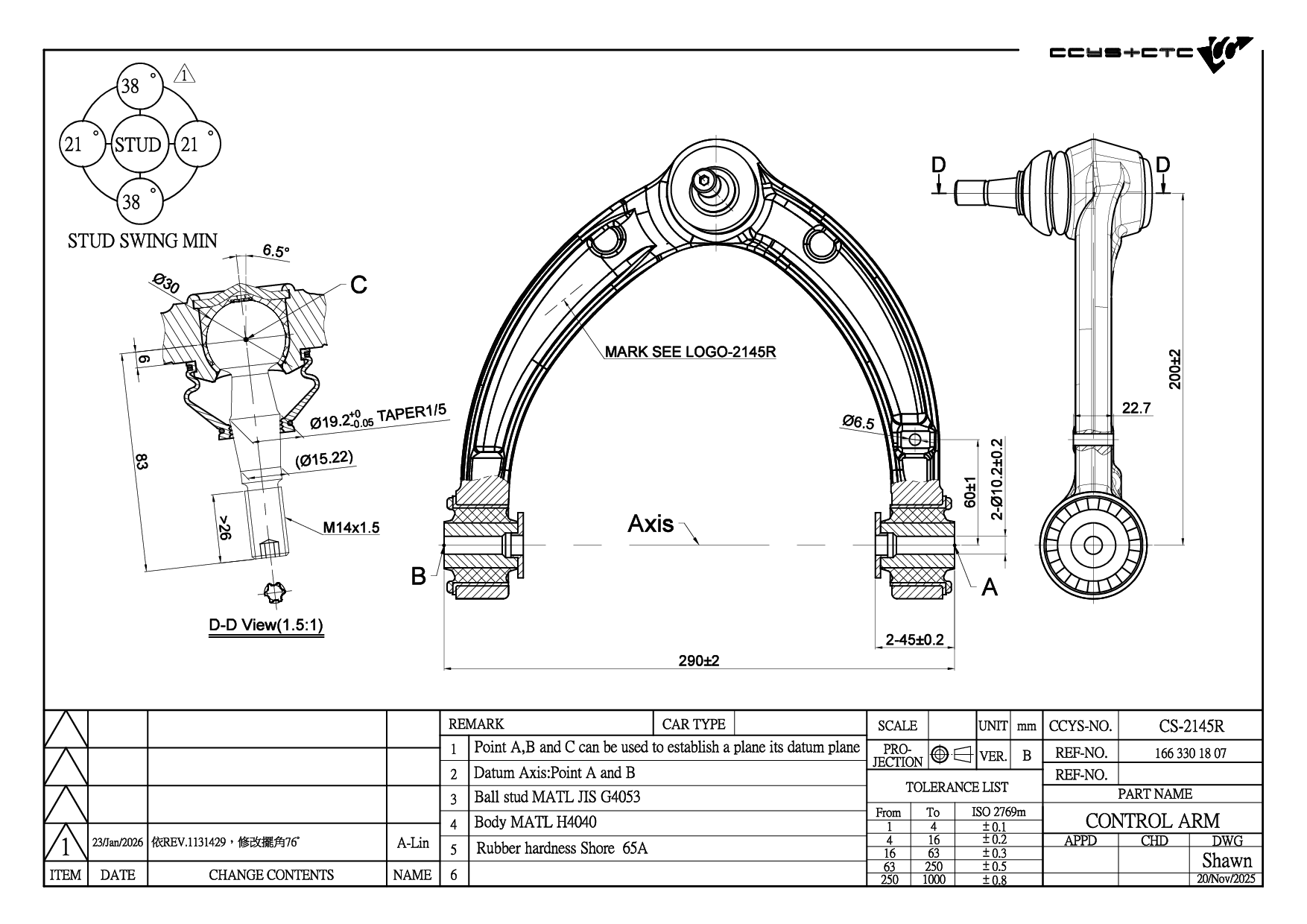

MERCEDES-BENZ / GL-CLASS (X166) / Control Arm / FRONT UPPER RH / CS-2145R

Technical Specification Matrix

CS-2145R 是 MERCEDES-BENZ 專用的控制臂 (FRONT UPPER RH)。本產品為 OEM 規格替代零件，適配原廠料號 166 330 18 07,A166 330 18 07。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER RH
OE 替代料號 (Original Equipment Numbers)	166 330 18 07 A166 330 18 07
Length	290 mm
Width	261 mm
Height	113 mm
Net Weight	1.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH21046L	FRONT LOWER ARM LH REAR	166 330 01 43 A166 330 01 43
CBH21046R	FRONT LOWER ARM RH REAR	166 330 02 43 A166 330 02 43
CBH21047	FRONT LOWER ARM INNER	164 333 04 14 166 333 02 00 166 333 04 14 5168158AB 5168159AB 68022612AB A164 333 04 14 A166 333 02 00 A166 333 04 14
CBH21048	FRONT LOWER ARM OUTER	166 333 01 00 A166 333 01 00
CBH21066	FRONT UPPER ARM INNER	166 330 17 07 166 330 18 07 166 331 02 14 166 333 00 00 166 333 07 14 251 330 07 07 251 330 08 07 251 330 25 00 251 330 26 00 251 333 01 14 A166 330 17 07 A166 330 18 07 A166 331 02 14 A166 333 00 00 A166 333 07 14 A251 330 07 07 A251 330 08 07 A251 330 2
CBJ21011	FRONT AXLE LH/ RH	166 330 02 35 A166 330 02 35
CRE21013	FRONT AXLE LH/ RH	166 338 03 15
CS-2145L	FRONT UPPER LH	166 330 17 07 A166 330 17 07
CS-2145R	FRONT UPPER RH	166 330 18 07 A166 330 18 07
CS-2163L	FRONT LOWER LH	166 330 01 07 292 330 07 00 A166 330 01 07 A292 330 07 00
CS-2163R	FRONT LOWER RH	166 330 02 07 292 330 08 00 A166 330 02 07 A292 330 08 00
CSL21048L	FRONT AXLE LH	166 320 07 89 166 320 11 00 A166 320 07 89 A166 320 11 00
CSL21048R	FRONT AXLE RH	166 320 08 89 166 320 12 00 A166 320 08 89 A166 320 12 00
