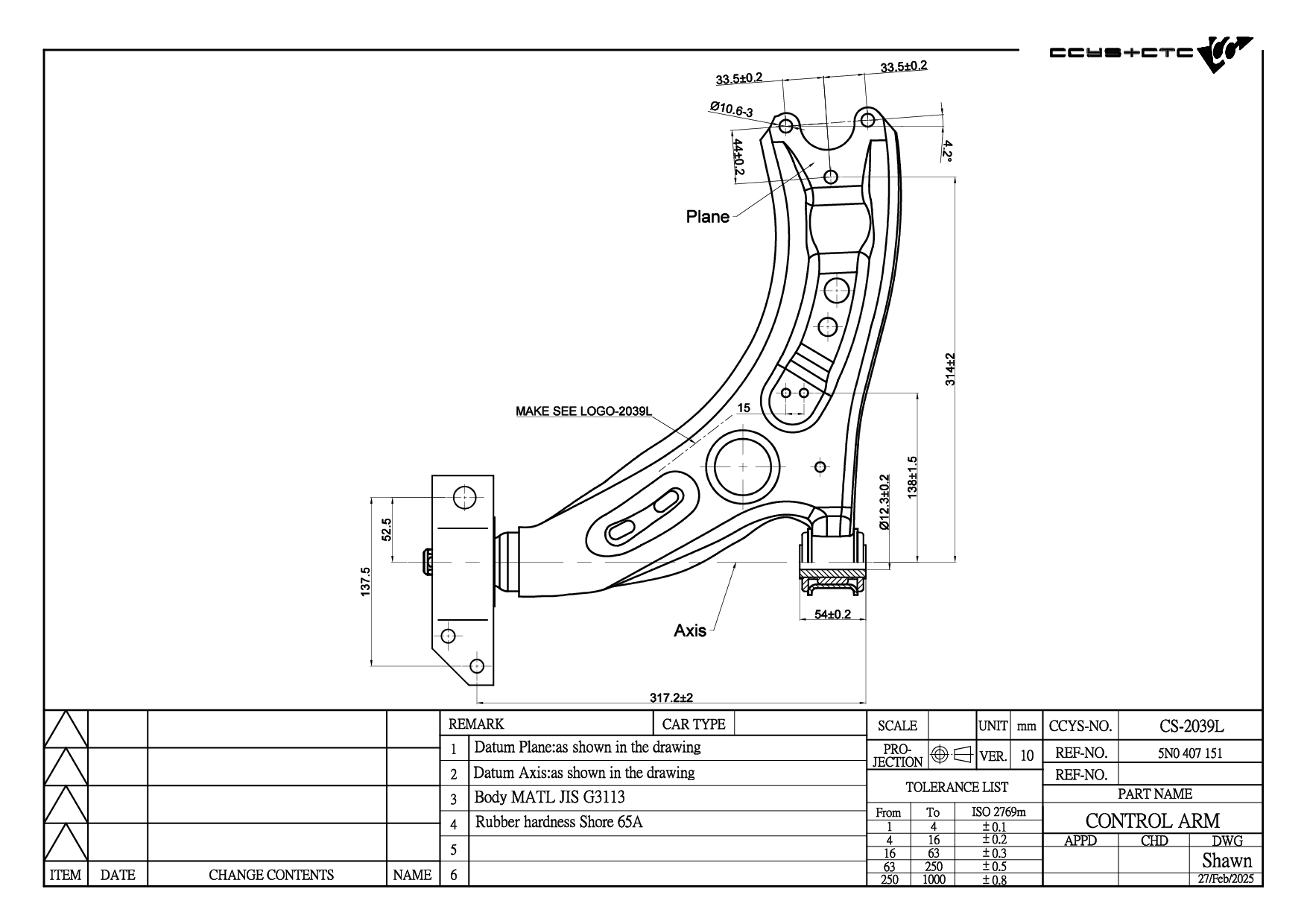

Technical Specification Matrix
CS-2039L 是 VOLKSWAGEN 專用的 控制臂 (FRONT LOWER LH)。
本產品為 OEM 規格替代零件，適配原廠料號 5N0 407 151。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 389 mm |
| Width | 472 mm |
| Height | 79 mm |
| Net Weight | 4.0 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19023 | REAR ARM |
|
|
 |
CBH20009 | FRONT LOWER ARM REAR |
|
|
 |
CBH20017 | FRONT LOWER ARM INNER |
|
|
 |
CBH20019 | REAR UPPER ARM OUTER |
|
|
 |
CBH20020 | REAR UPPER ARM INNER |
|
|
 |
CBJ20008LA | FRONT LOWER LH |
|
|
 |
CBJ20008RA | FRONT LOWER RH |
|
|
 |
CS-1932 | REAR LOWER LH/ RH |
|
|
 |
CS-2022 | FRONT LOWER LH/ RH |
|
|
 |
CS-2023L | FRONT LOWER LH |
|
|
 |
CS-2023R | FRONT LOWER RH |
|
|
 |
CS-2026 | REAR UPPER LH/ RH |
|
|
 |
CS-2027L | REAR LOWER LH |
|
|
 |
CS-2027R | REAR LOWER RH |
|
|
 |
CS-2033 | REAR LOWER LH/ RH |
|
|
 |
CS-2039L | FRONT LOWER LH |
|
|
 |

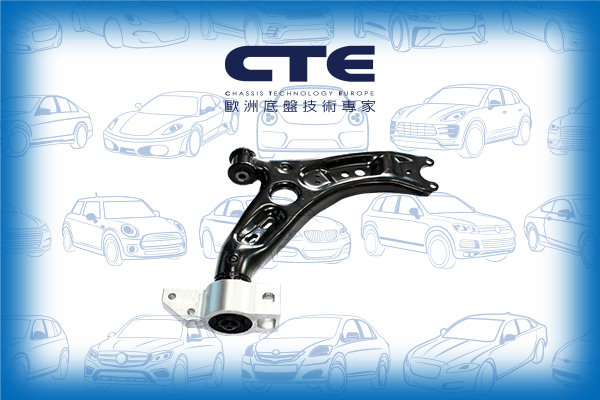

CS-2039R | FRONT LOWER RH |
|
|
 |
CS-2054 | REAR AXLE LH/ RH |
|
|
 |
CSL19021 | REAR AXLE LH/RH |
|
|
 |
CSL20014D1 | FRONT (A= 334MM) |
|
| Model (Year) |
|---|
|
CC B7 (358) PASSAT ALLTRACK B7 Variant (365) PASSAT B7 (362) PASSAT B7 (A32, A33) PASSAT B7 Estate Van (365) PASSAT B7 Variant (365) | MAGOTAN PASSAT CC B6 (357) TIGUAN (5N_) |
