Control Arm

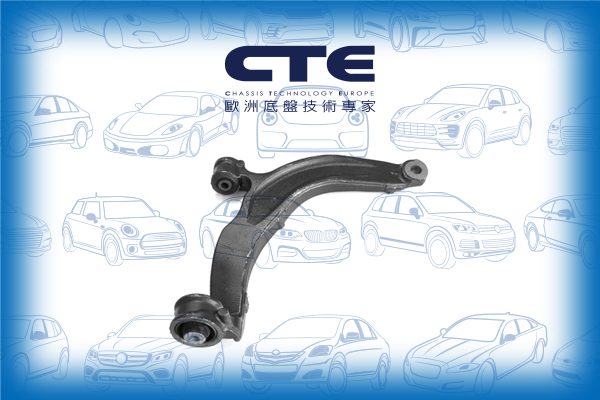

VOLKSWAGEN / CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) / Control Arm / FRONT LOWER RH / CS-2031R

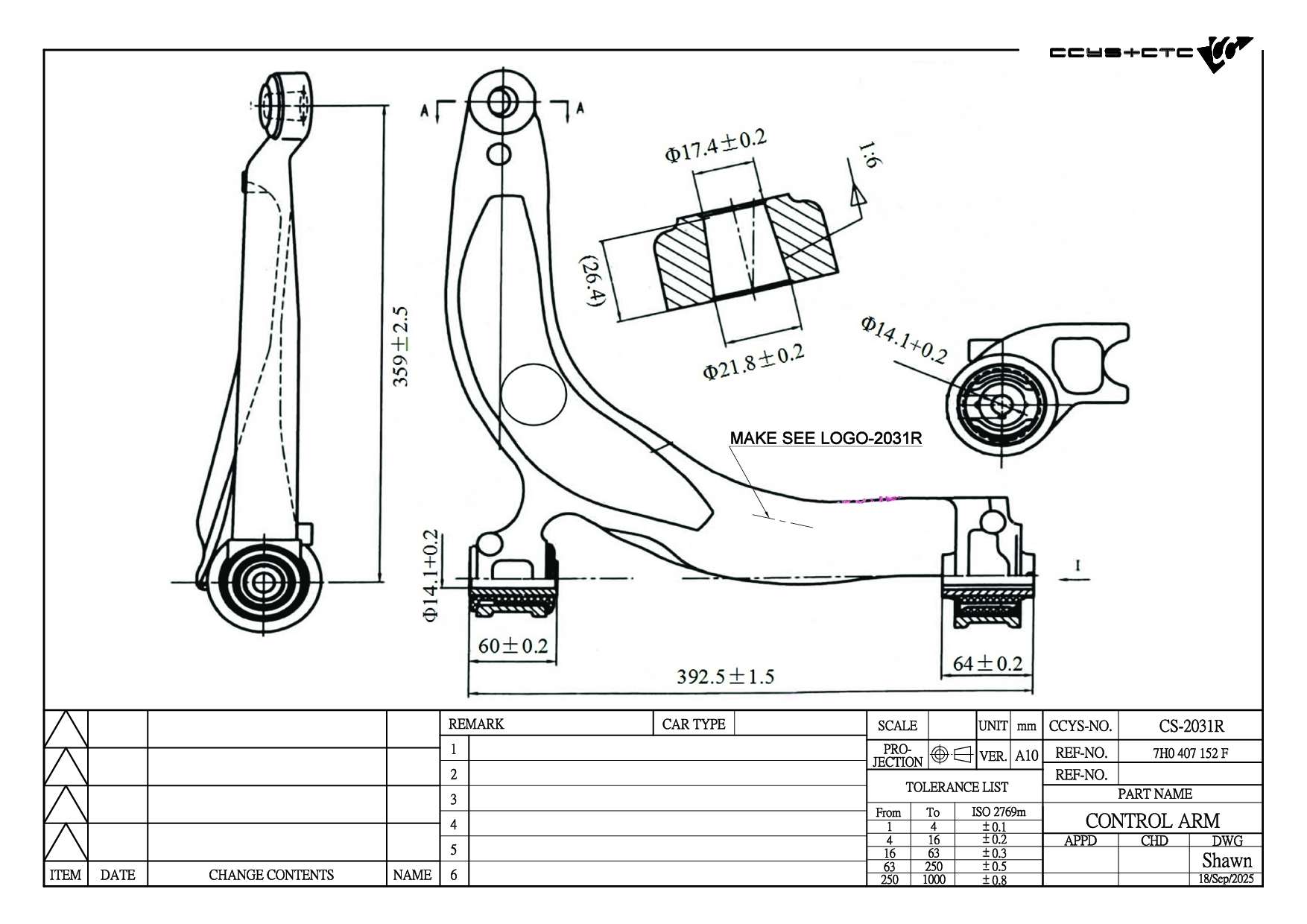

Technical Specification Matrix

CS-2031R 是 VOLKSWAGEN 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 7H0 407 152E,7H0 407 152F,7H0 407 152G。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	7H0 407 152E 7H0 407 152F 7H0 407 152G
Length	540 mm
Width	370 mm
Height	125 mm
Net Weight	8.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

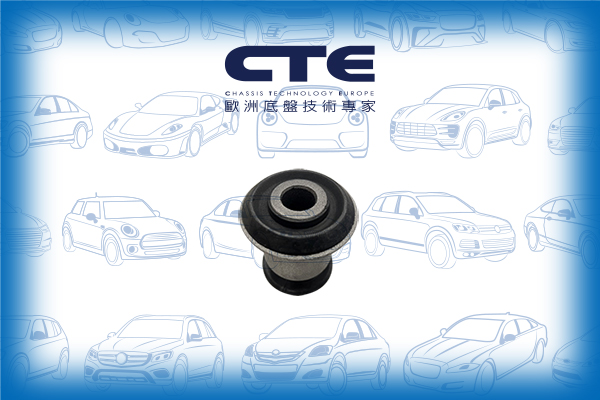

CBH20027	FRONT LOWER ARM INNER	2H0 407 183A 7H0 407 183

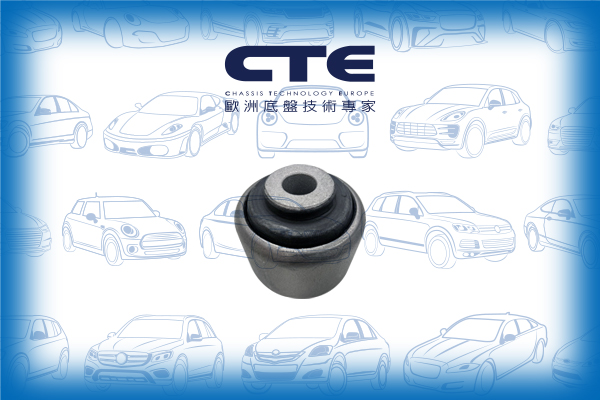

CBH20032	FRONT LOWER ARM REAR	7H0 407 182 7H0 407 182A

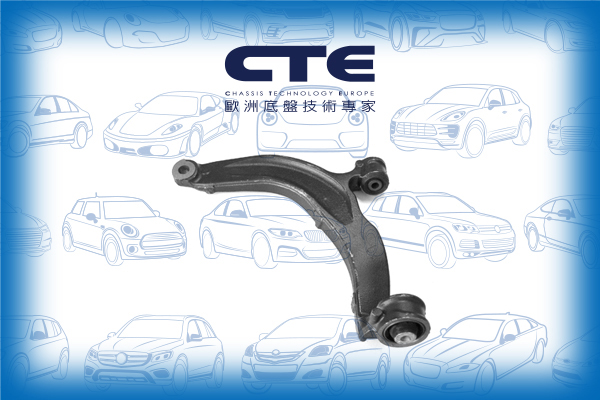

CS-2031L	FRONT LOWER LH	7H0 407 151E 7H0 407 151F 7H0 407 151G
CS-2031R	FRONT LOWER RH	7H0 407 152E 7H0 407 152F 7H0 407 152G

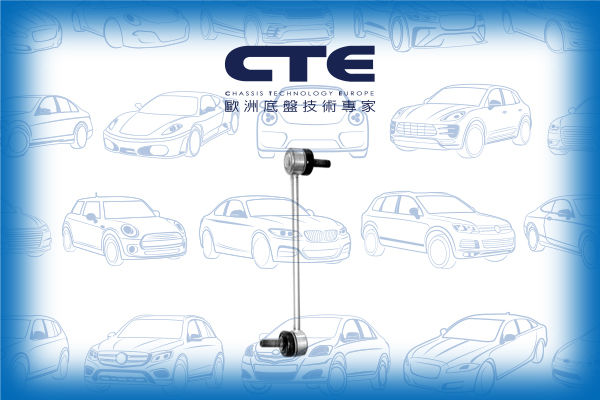

CSL20015	FRONT (A= 260MM)	7H0 411 317 7H0 411 317A 7H5 411 317 7H5 411 317A 7H5 411 317B 7H5 411 317D 7H5 411 317E

Model (Year)
CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) \| TRANSPORTER / CARAVELLE \| EUROVAN \| CARAVELLE TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH)
