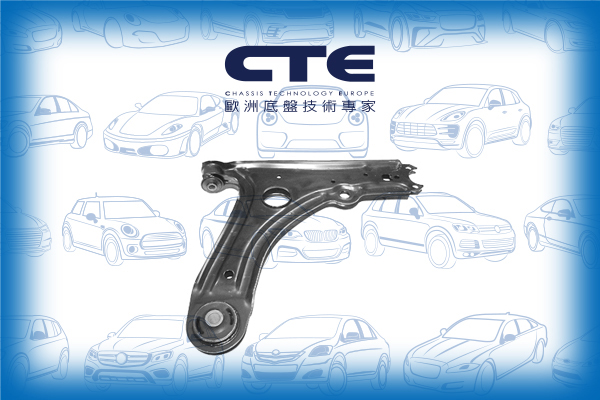

Control Arm

VOLKSWAGEN / GOLF III (1H1) / Control Arm / FRONT LOWER LH/ RH / CS-2004

Name: CS-2004
Brand: CTE
SKU: CS-2004
Price: 1604.00 TWD
Availability: InStock

VW GOLF (1H1) construction year from 03.1992, (1E7) year to 03.1999, (1H2) year from 09.1992 to 01.1998

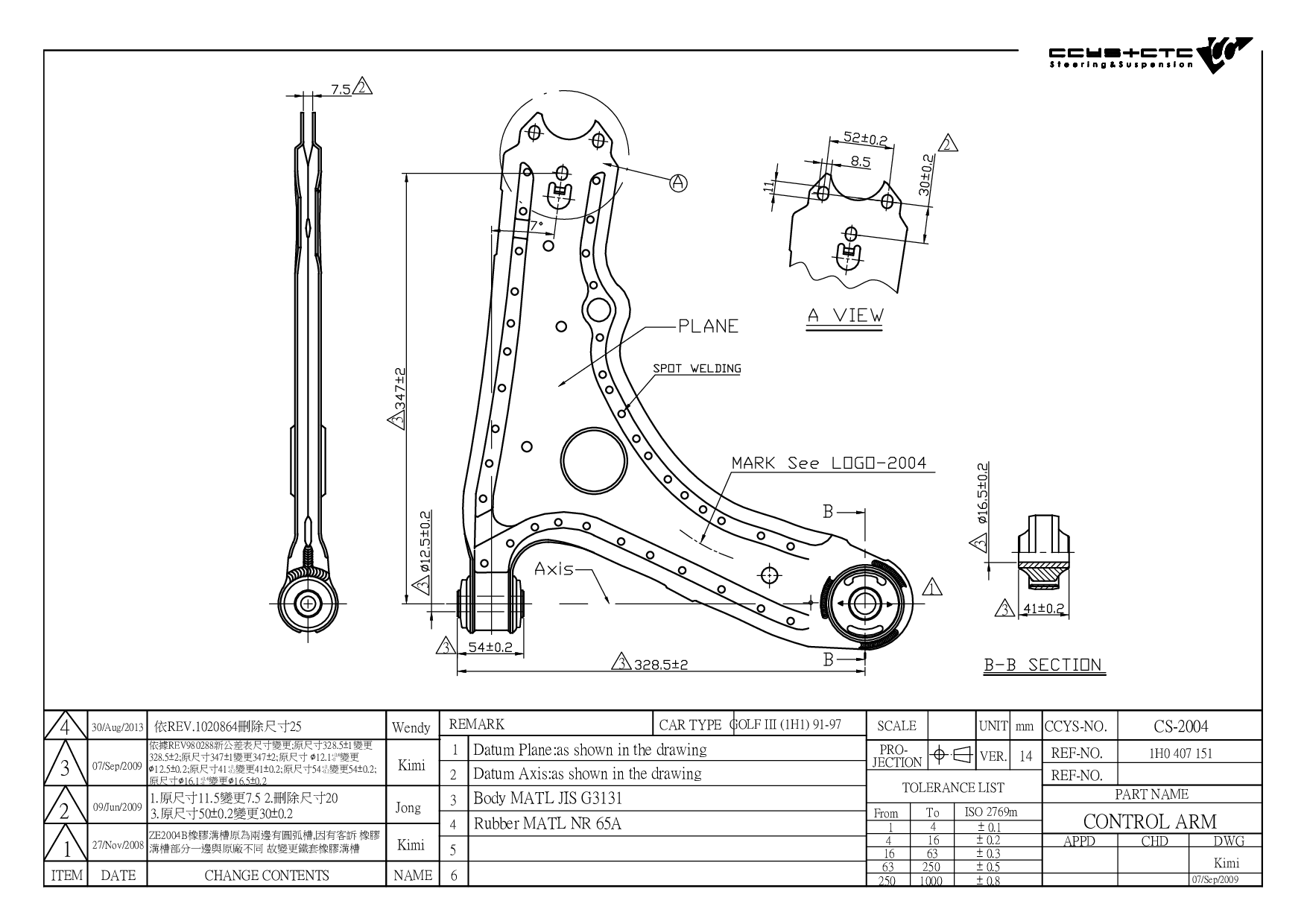

Technical Specification Matrix

CS-2004 是 VOLKSWAGEN 專用的控制臂 (FRONT LOWER LH/ RH)。本產品為 OEM 規格替代零件，適配原廠料號 1H0 407 151,1HO 407 151。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH/ RH
OE 替代料號 (Original Equipment Numbers)	1H0 407 151 1HO 407 151
Length	370 mm
Width	436 mm
Height	48 mm
Net Weight	1.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

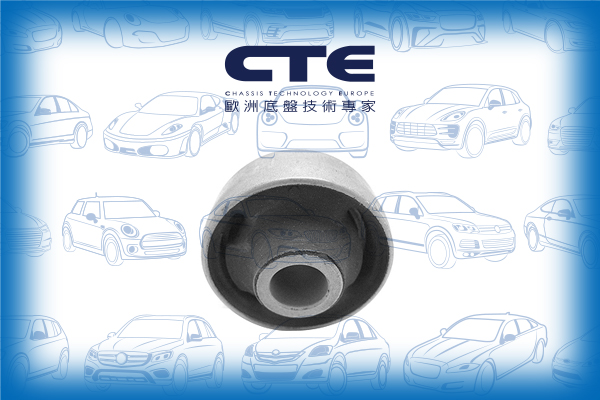

CBH20007	FRONT LOWER ARM REAR
CBH20008	FRONT LOWER ARM INNER	180 407 182 191 407 182 1J0 407 182 357 407 182 357 407 182F
CBJ20002	FRONT LOWER LH/ RH	357 407 365 357 407 365A
CBJ20002A	FRONT LOWER LH/ RH	357 407 365 357 407 365A

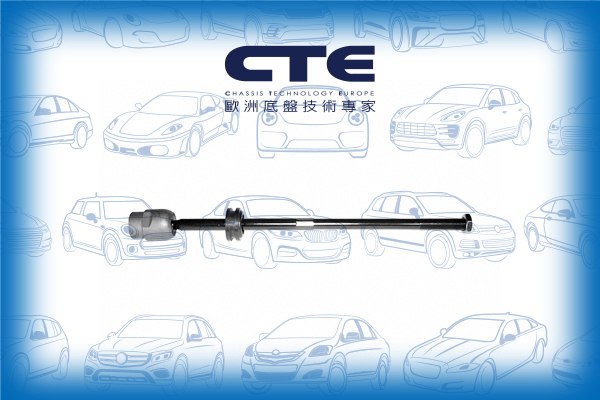

CRE20007	D= M14X1.5 , C= M22X1.5	1H0 419 804 1H0419804A

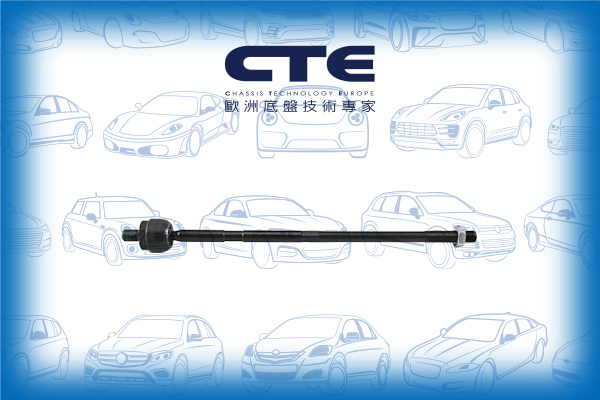

CRE20008	D= M14X1.5 , C= M14X1.5	1H0 422 803

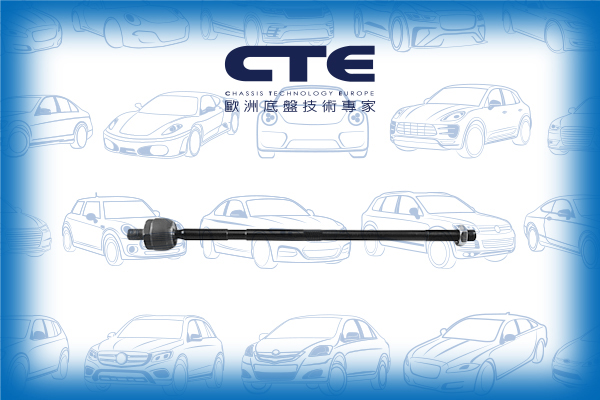

CRE20009	D= M14X1.5 , C= M14X1.5	1H0 422 804 1H1422051C 1H1422055 1H1422055C 1H1422061C 1HM422055D
CRE20018	FRONT AXLE LH/RH	1H0 422 803B 1H0 422 804B 1H0 422 821 1H0 422 821B
CS-2004	FRONT LOWER LH/ RH	1H0 407 151 1HO 407 151

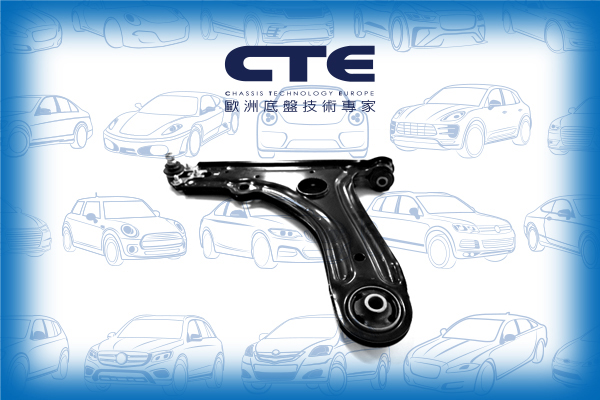

CS-2021L	FRONT LOWER LH	1H0 407 151 357 407 365A CS-2004+CBJ20002A

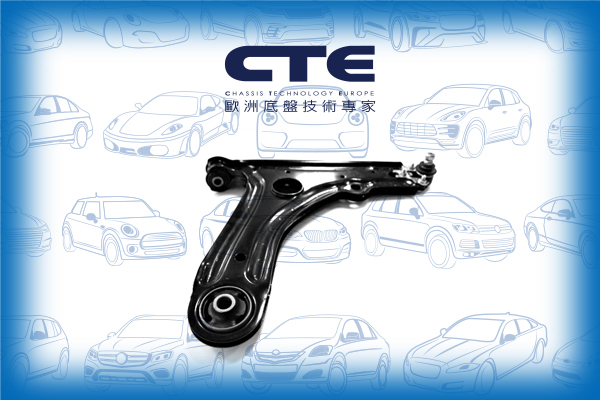

CS-2021R	FRONT LOWER RH	1H0 407 151 357 407 365A CS-2004+CBJ20002A
CSL20001	FRONT (A= 74.5MM)	191 411 315B
CSL20002	FRONT (A= 79MM)	191 411 315
CSL20010	FRONT (A= 53.5MM)	1H0 411 315 1H0 411 316 535 411 315

Model (Year)
GOLF III (1H1) GOLF III Cabriolet (1E7) \| CABRIO GOLF III Van (1H1) GOLF III Variant (1H5) GOLF IV Cabriolet (1E7) \| CABRIO GOLF Van III Variant (1H5) VENTO (1H2) \| JETTA III
