Technical Specification Matrix

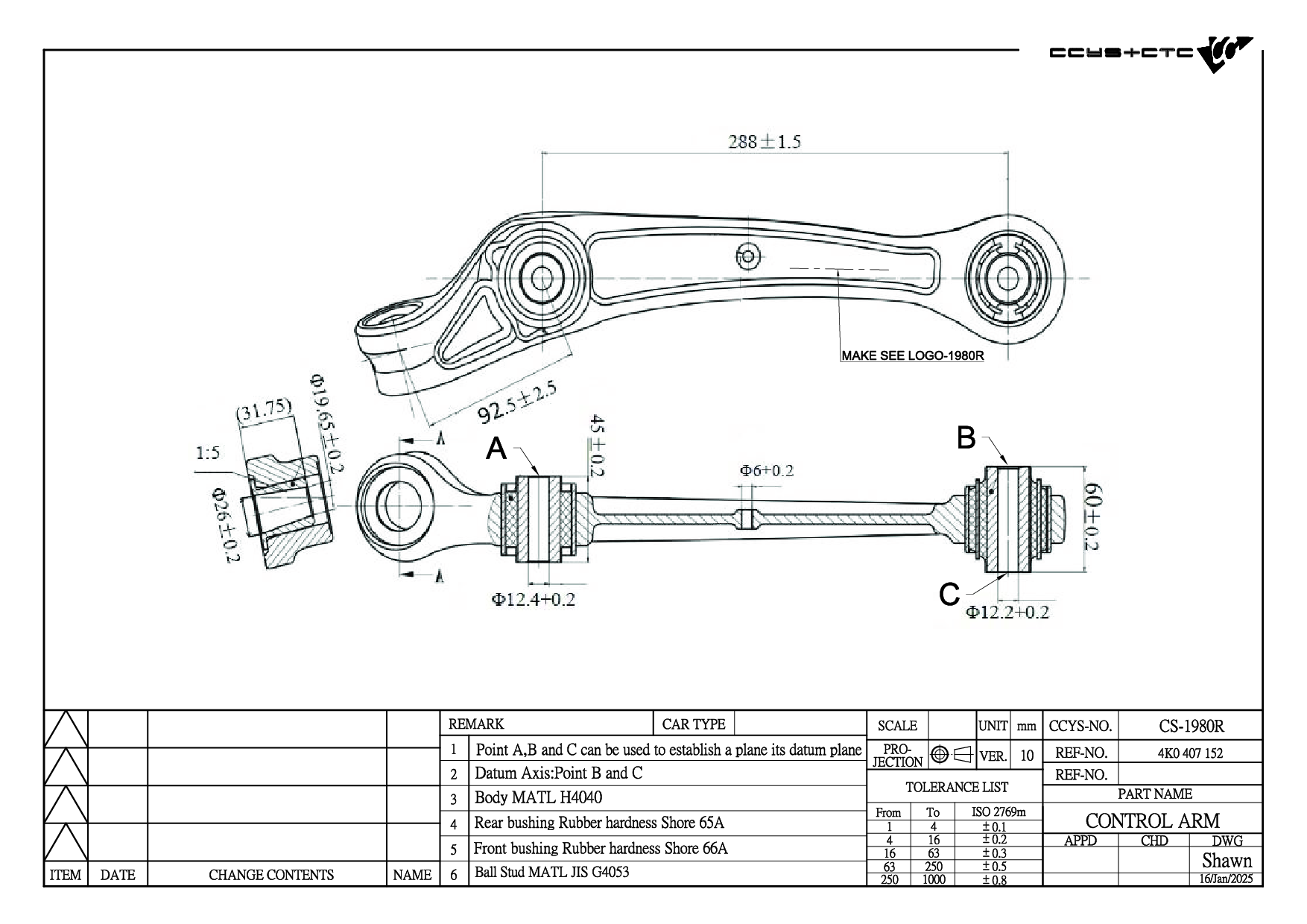

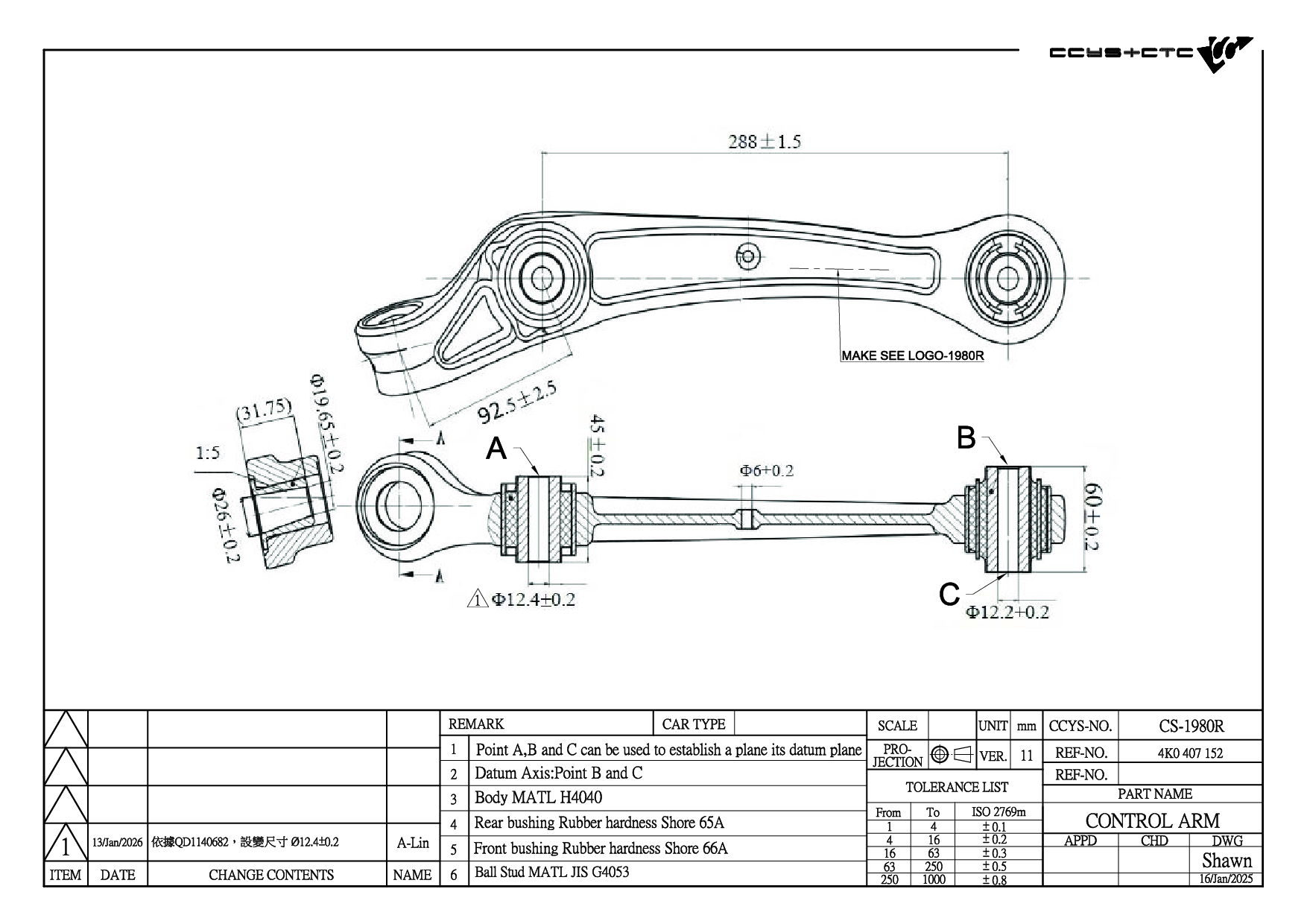

CS-1980R 是 AUDI 專用的 控制臂 (FRONT LOWER RH)。
本產品為 OEM 規格替代零件，適配原廠料號 4K0 407 152,4KD 407 152,4KD 407 152B,4M0 407 152D,4M0 407 152E,4M0 407 152F,4M0 407 152H,4M0 407 152J,4M0 407 152L,80A 407 152A,80A 407 152B,80D 407 152,958 407 152 00,PAB 407 152。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 450 mm |
| Width | 80 mm |
| Height | 60 mm |
| Net Weight | 1.5 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19041 | FRONT UPPER ARM INNER |
|
|
 |
CBH19042 | FRONT LOWER ARM INNER |
|
|
 |
CBH19043 | FRONT LOWER ARM OUTER |
|
|
 |
CBH19044 | FRONT LOWER ARM INNER |
|
|
 |
CRE19007 | FRONT AXLE LH/ RH |
|
|
 |
CS-1978L | FRONT UPPER LH |
|
|
 |
CS-1978R | FRONT UPPER RH |
|
|
 |
CS-1979L | FRONT UPPER LH |
|
|
 |
CS-1979R | FRONT UPPER RH |
|
|
 |
CS-1980L | FRONT LOWER LH |
|
|
 |
CS-1980R | FRONT LOWER RH |
|
|
 |
CS-1983L | FRONT LOWER LH |
|
|
|
CS-1983R | FRONT LOWER RH |
|
|
 |
CSL19018 | FRONT (A= 170MM) |
|
|
 |
CSL19018D1 | FRONT (A= 170MM) |
|
| Model (Year) |
|---|
|
A6 C8 (4A2) A6 C8 Avant (4A5) A8 D5 (4N2, 4N8, 4NC, 4NL, 4NX) | A8L E-TRON (GEN) E-TRON Sportback (GEA) Q7 (4MB, 4MG) Q7 (4MB, 4MG, 4MQ) Q8 (4MN, 4MT) |
| Model (Year) |
|---|
|
A6L C8 (488) |
| Model (Year) |
|---|
|
CAYENNE (9YA) CAYENNE Coupe (9YB) |
| Model (Year) |
|---|
|
TOUAREG (CR7, RC8) |
