Control Arm
AUDI / A4 B5 Avant (8D5) / Control Arm / FRONT LOWER LH/ RH / CS-1915
VW (3B3) (3B6) vin fm 3B-3E072 001
AUDI (8D5) design: NA, MEX, BR, IE
vin to 4B3 407 151 C
AUDI (4B2) (4B5) rim: 17,18
vin to 4B-2-031 500
vin fm 4B-2-031 501, 4B-W-100 001
AUDI (4D2,4D8) not for rim:20
vin fm 4D-X-005 501
SKODA (3U4) vin fm 3U-3-021 398
Technical Specification Matrix

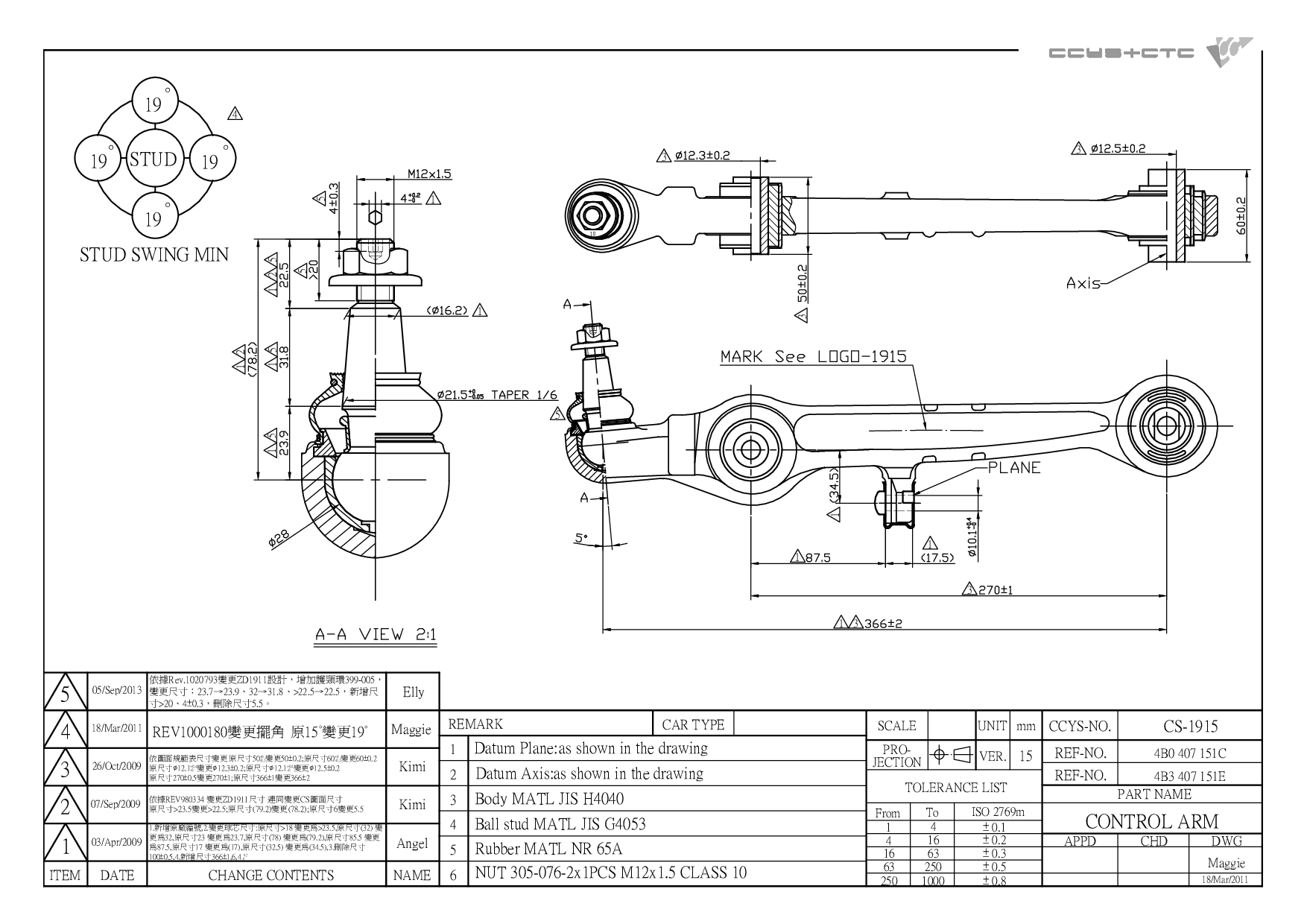

CS-1915 是 AUDI 專用的 控制臂 (FRONT LOWER LH/ RH)。
本產品為 OEM 規格替代零件，適配原廠料號 4B0 407 151,4B0 407 151C,4B3 407 151A,4B3 407 151C,4B3 407 151E,4B3 407 151F,4B3 407 151K。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH/ RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 424 mm |
| Width | 134 mm |
| Height | 60 mm |
| Net Weight | 1.5 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19008 | FRONT LOWER ARM INNER |
|
|
 |
CBH19009 | FRONT LOWER ARM OUTER |
|
|
 |
CS-1904 | FRONT LOWER LH/ RH |
|
|
|
CS-1915 | FRONT LOWER LH/ RH |
|
|
 |
CSL19011L | FRONT LH (A= 90MM) |
|
|
 |
CSL19011LA | FRONT LH (A= 90MM) |
|
|
 |
CSL19011R | FRONT RH (A= 90MM) |
|
|
 |
CSL19011RA | FRONT RH (A= 90MM) |
|
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) |
|
| Model (Year) |
|---|
|
A4 B5 Avant (8D5) A6 C5 (4B2, 4B4) | A6 / S6 A6 C5 Avant (4B5, 4B6) | A6 / S6 A8 D2 (4D2, 4D8) | A8 / S8 |
| Model (Year) |
|---|
|
A6 C5 (4Y8) |
| Model (Year) |
|---|
|
PASSAT B5.5 (3B3) PASSAT B5.5 Variant (3B6) |
| Model (Year) |
|---|
|
SUPERB I (3U4) |
