Control Arm

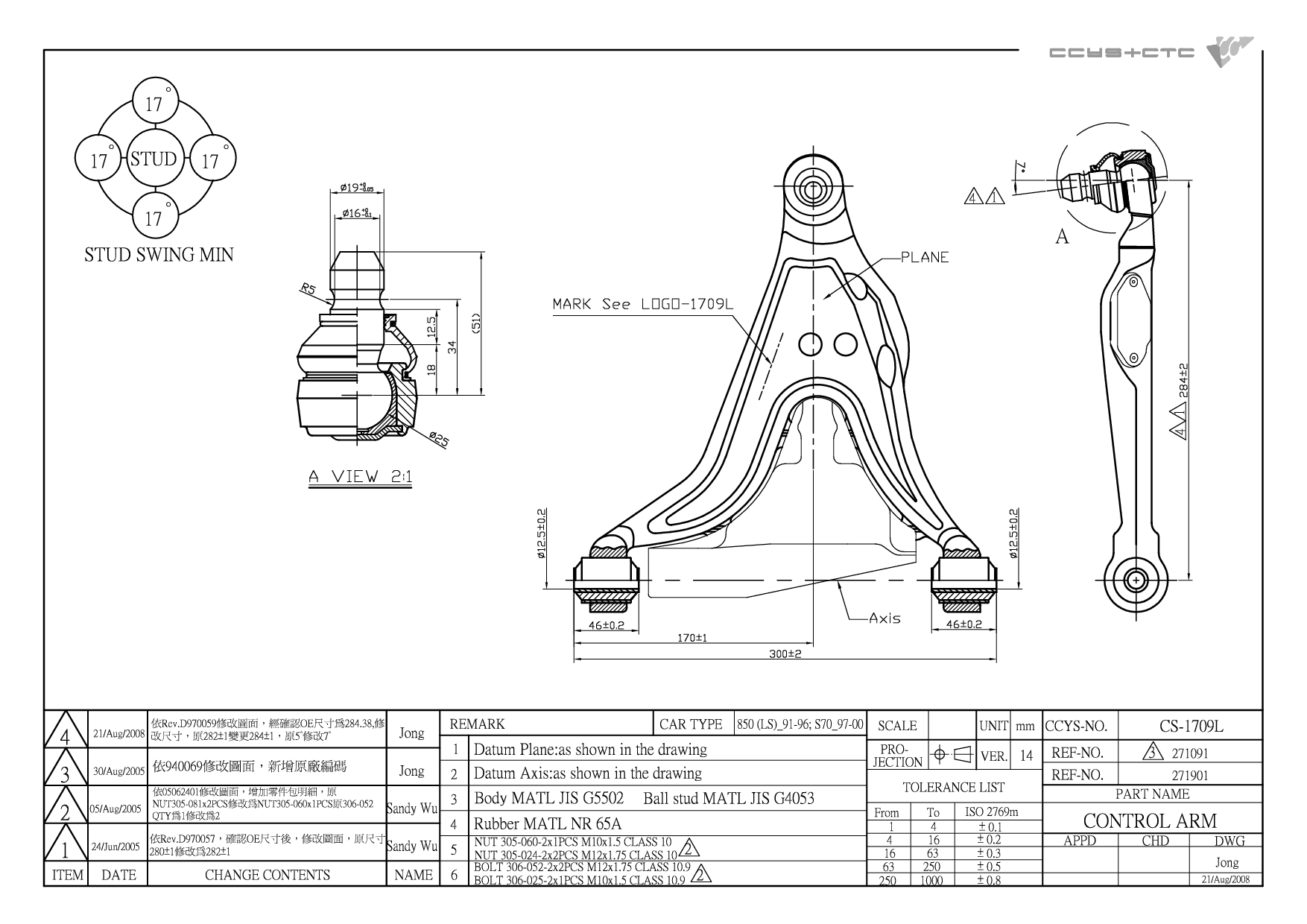

VOLVO / 850 (854) / Control Arm / FRONT LOWER LH / CS-1709L

Name: CS-1709L
Brand: CTE
SKU: CS-1709L
Price: 2022.00 TWD
Availability: InStock

Control Arm/VOLVO/850 (854)/850 Estate (855)/S70 (874)/V70 I (875, 876)

Technical Specification Matrix

CS-1709L 是 VOLVO 專用的控制臂 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 271091,271628,271901,3516182,3546701,8628491,8628495,9140095,9169533,9492287,9492530,9492671,9492914。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	271091 271628 271901 3516182 3546701 8628491 8628495 9140095 9169533 9492287 9492530 9492671 9492914
Length	300 mm
Width	325 mm
Height	76 mm
Net Weight	3.1 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH17026	FRONT LOWER ARM INNER	271631 6800251
CBH17028	FRONT LOWER ARM INNER	272227 272273 2722734 272274 2722742 272336 272337 2723385 2723393 277227 8628493 8628494 8628497 86284973 8628498 86284981 9140976 9140977 9186730 9186731 9492291 9492292 9492532 9492533 9492673 9492674 9492916 9492917
CBJ17006A	FRONT LOWER LH/ RH	271591 2715910 3546524
CRE17008	D= M14X2.0 , C= M14X1.5	31476353 3546266 35462662
CS-1709L	FRONT LOWER LH	271091 271628 271901 3516182 3546701 8628491 8628495 9140095 9169533 9492287 9492530 9492671 9492914
CS-1709R	FRONT LOWER RH	271629 271902 272092 3516183 3546702 8628492 8628496 9140096 9169534 9492288 9492531 9492672 9492915
CS-1710L	FRONT LOWER LH	272273 2722734 272336 2723385 8628493 8628497 86284973 9140976 9186730 9492291 9492532 9492673 9492916
CS-1710R	FRONT LOWER RH	272227 272274 2722742 272337 2723393 277227 8628494 8628498 86284981 9140977 9186731 9492292 9492533 9492674 9492917
CSL17005	FRONT (A= 303MM)	1387860 1387860-8 30647921 30647995 30714686 8626031 8628703 8628726 9140767 9492804 9492804-1
CTE17003L	FRONT AXLE LH (C= M14X2.0)	22715985 271598 2715985 3546267
CTE17003R	FRONT AXLE RH (C= M14X2.0)	271599 2715993 3546268
