Control Arm

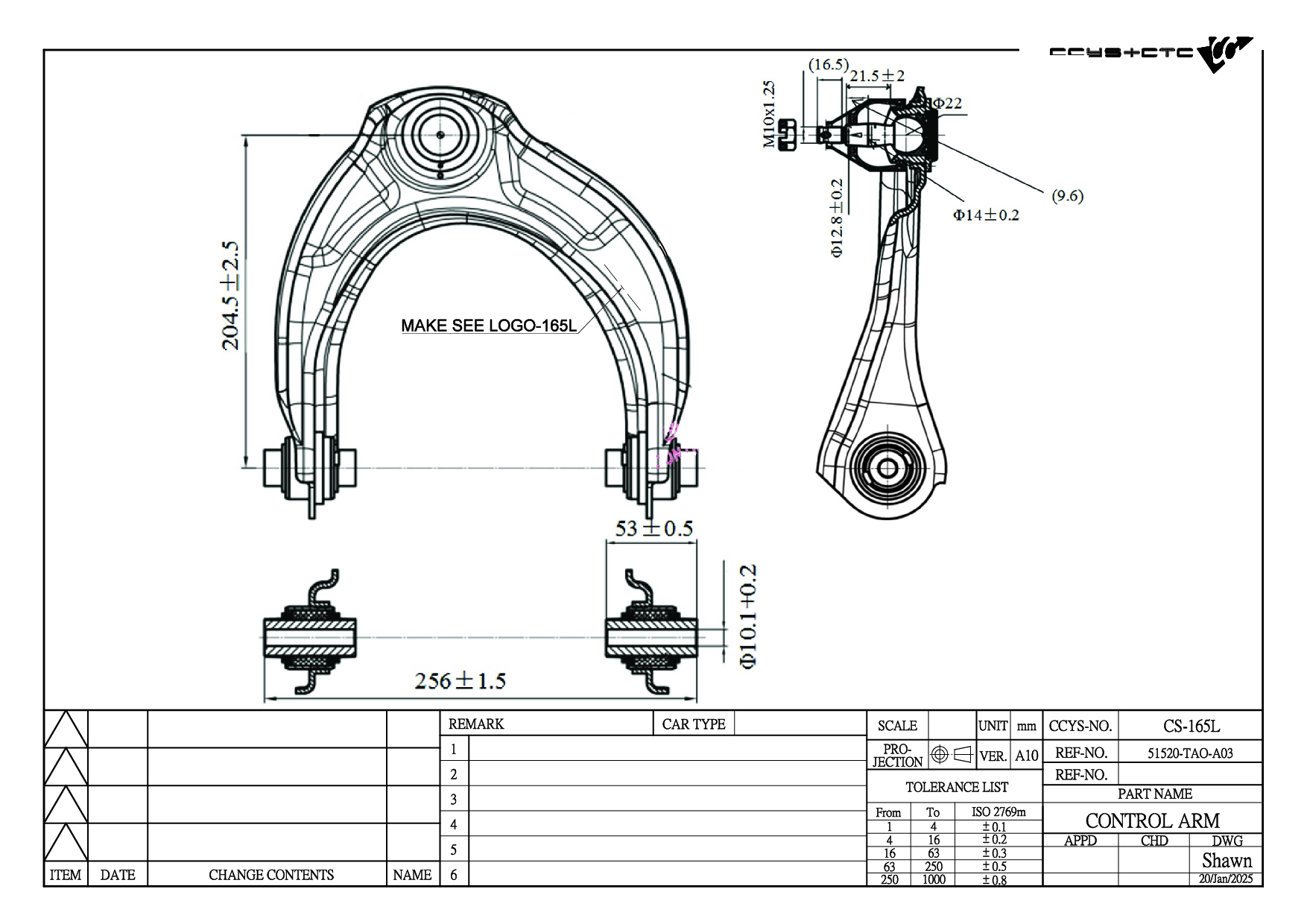

HONDA / ACCORD VIII (CP) | INSPIRE / Control Arm / FRONT UPPER LH / CS-165L

Technical Specification Matrix

CS-165L 是 HONDA 專用的控制臂 (FRONT UPPER LH)。本產品為 OEM 規格替代零件，適配原廠料號 51520-TA0-A01,51520-TA0-A02,51520-TA0-A03。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER LH
OE 替代料號 (Original Equipment Numbers)	51520-TA0-A01 51520-TA0-A02 51520-TA0-A03
Length	265 mm
Width	254 mm
Height	78 mm
Net Weight	1.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH01035	FRONT UPPER ARM INNER	51450-SDA-023 51450-SDA-A01 51450-SDA-A11 51450-SDA-A12 51450-SDA-A13 51450-SEA-003 51450-SEA-E01 51450-SEC-A01 51450-SFE-003 51450-SJA-013 51450-SJK-003 51460-SDA-023 51460-SDA-A01 51460-SDA-A11 51460-SDA-A12 51460-SDA-A13 51460-SEA-003 51460-SEA-E01 514
CBH01036	FRONT LOWER ARM REAR	51391-SDA-A02 51391-SDA-A03 51391-SDB-A01 51391-SEA-004
CBH01037	FRONT LOWER ARM OUTER	51350-TP6-C00 51360-TP6-C00 51810-S1A-E01 51810-SDA-A01 51810-SJK-003 51810-SM4-003 51810-SM4-004 51810-SN7-000 51810-SN7-003 51810-SS0-003 51810-SV4-003 51810-SV4-004 51810-TA0-A01 51810-TP6-A01
CBH01038	FRONT LOWER ARM INNER	51350-TP6-C00 51360-TP6-C00 51393-SDA-A01 51393-SDA-A02 51393-SEA-004 51393-TP6-A01
CBH01041	FRONT LOWER ARM REAR	51391-TA0-A01
CBH01055	FRONT AXLE LH/RH	51306-TA0-A01 51306-TA0-J01 51306-TE1-A01
CBJ01010	FRONT LOWER LH/ RH	51220-TA0-A01 51220-TA0-A02 51350-TP6-C00 51360-TP6-C00
CRE01035	FRONT AXLE LH/ RH	53010-TA0-A01
CRE01045	FRONT AXLE LH/ RH	53010-SDA-A01 53010-SFE-003 53010-SFE-013
CS-165L	FRONT UPPER LH	51520-TA0-A01 51520-TA0-A02 51520-TA0-A03
CS-165R	FRONT UPPER RH	51510-TA0-A01 51510-TA0-A02 51510-TA0-A03
CTE01008L	FRONT AXLE LH (C= M14X1.5)	53560-SDA-A01
CTE01008R	FRONT AXLE RH (C= M14X1.5)	53540-SDA-A01
