Control Arm

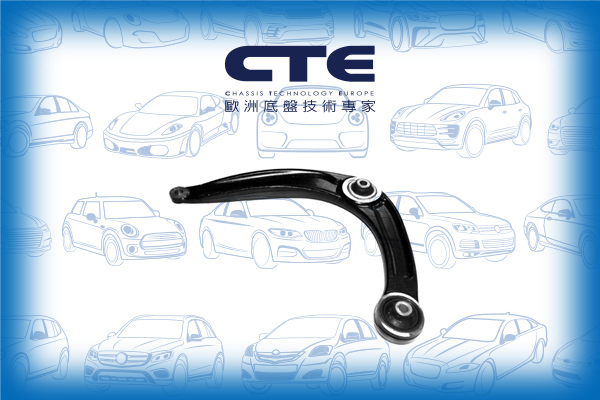

PEUGEOT / 3008 I MPV (0U_) / Control Arm / FRONT LOWER LH / CS-1623L
(NC) Production date fm 03.11.2014, production date to 10.02.2013; 6-speed Auto-transmission; (NX) production date fm 03.11.2014, production date to 16.06.2013; PEUGEOT (OU,OE) for production date fm 13.11.2014, production date to 06.05.2015.

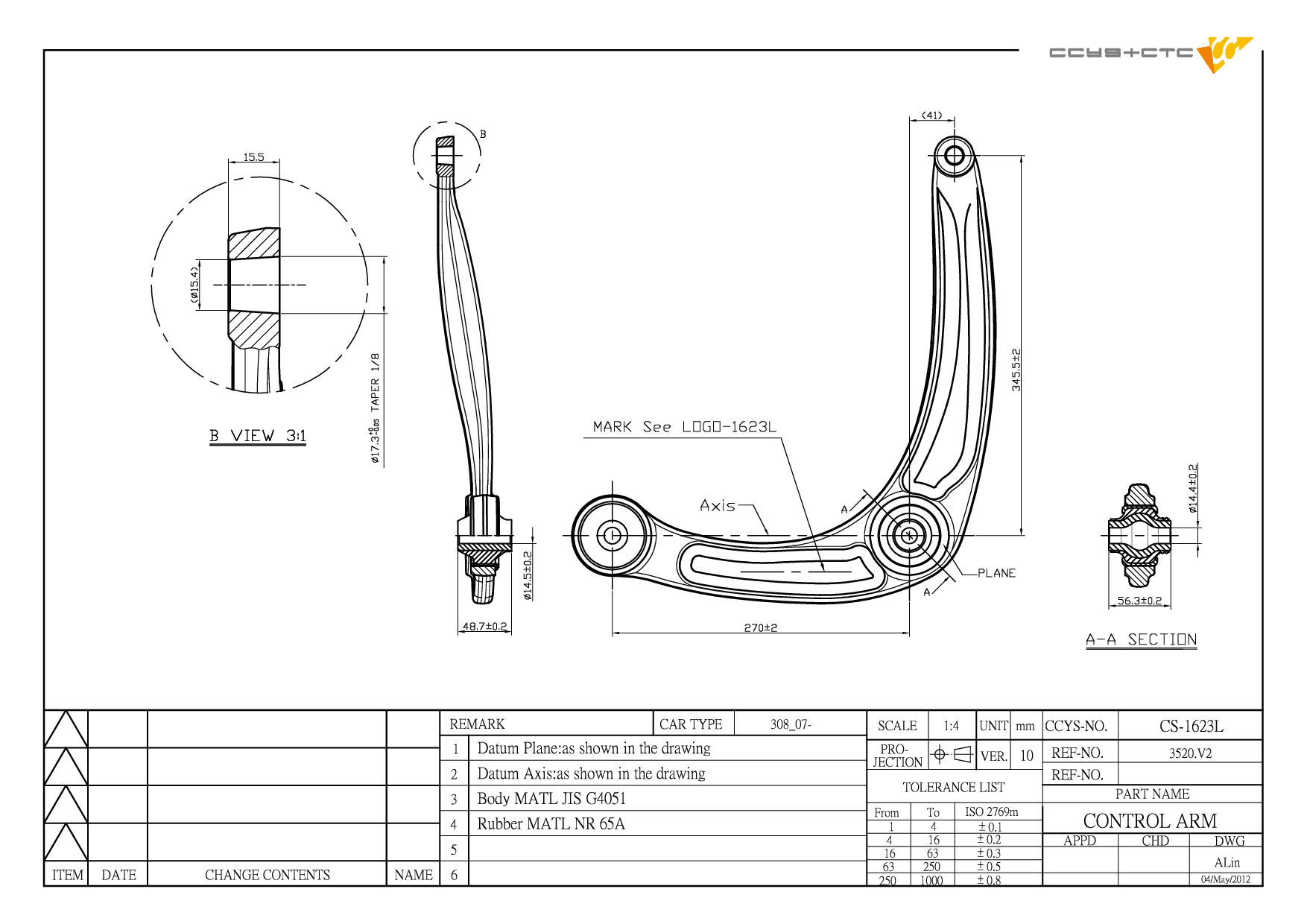

Technical Specification Matrix
CS-1623L 是 PEUGEOT 專用的 控制臂 (FRONT LOWER LH)。
本產品為 OEM 規格替代零件，適配原廠料號 16 431 887 80,3520.V2。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER LH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 385 mm |
| Width | 425 mm |
| Height | 68 mm |
| Net Weight | 4.8 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH16009 | FRONT LOWER ARM REAR |
|
|
 |
CBH16011 | FRONT LOWER ARM INNER |
|
|
 |

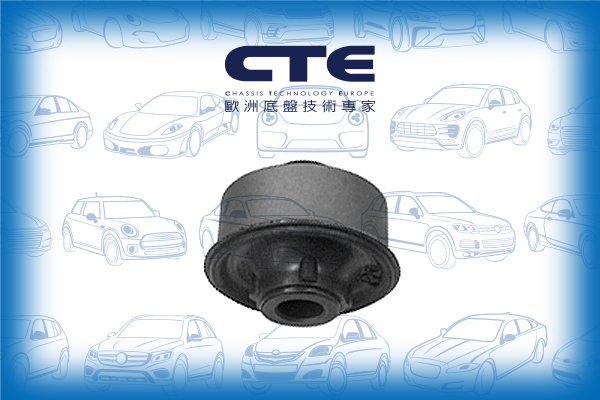

CBH16027 | FRONT LOWER ARM REAR |
|
|
 |

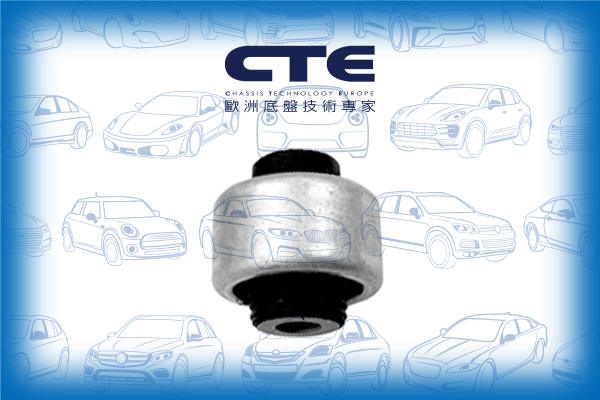

CBH16028 | FRONT LOWER ARM INNER |
|
|
|
CS-1623L | FRONT LOWER LH |
|
|
 |

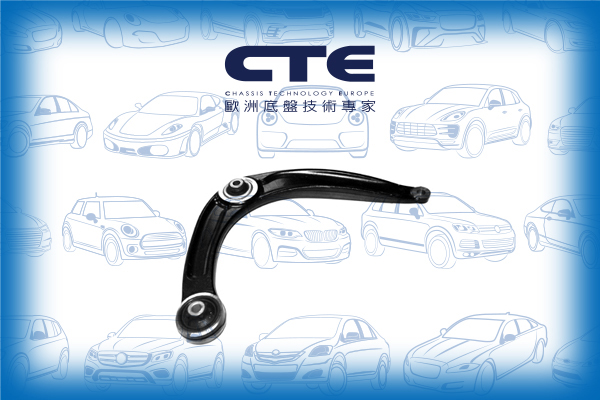

CS-1623R | FRONT LOWER RH |
|
|
 |
CSL16013 | FRONT (A= 334MM) |
|
| Model (Year) |
|---|
|
3008 I MPV (0U_) 3008 Van (0U_) 308 CC (4B_) 308 I (4A_, 4C_) 308 SW I (4E_, 4H_) 308 SW I Estate Van (4E_) 5008 (0U_, 0E_) 5008 I Van (0U_) |
| Model (Year) |
|---|
|
C4 II (NC_) C4 II Hatchback Van (NC_) C4 II Saloon (NC_) DS4 (NX_) |
| Model (Year) |
|---|
|
DS 4 / DS 4 CROSSBACK (NX_) |
