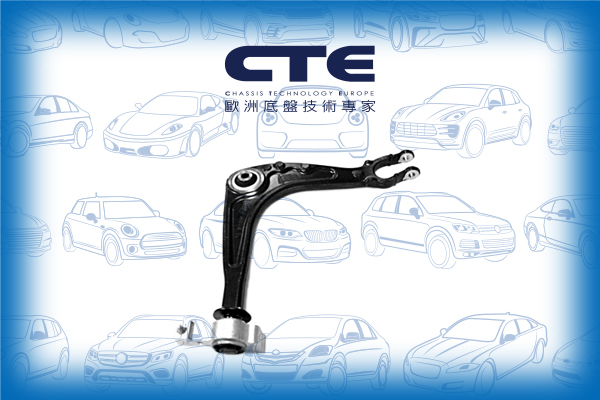

Control Arm

PEUGEOT / 407 (6D_) / Control Arm / FRONT LOWER RH / CS-1620R

Name: CS-1620R
Brand: CTE
SKU: CS-1620R
Price: 3257.00 TWD
Availability: InStock

For vehicles without electronic suspension
for vehicles with coil spring suspension

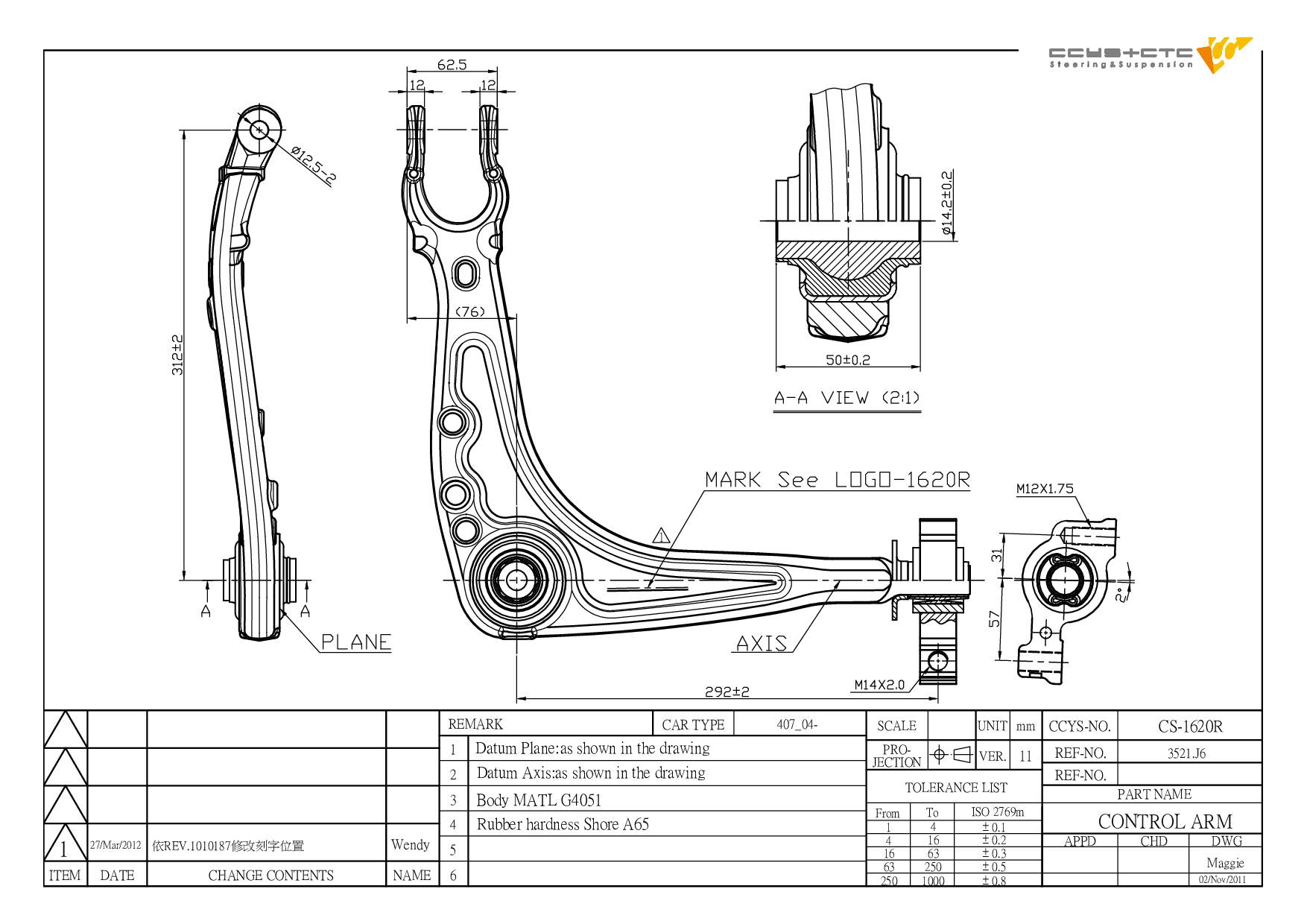

Technical Specification Matrix

CS-1620R 是 PEUGEOT 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 16 109 322 80,3521.J6,3521.S4,3521.S5,96 502 548 80,96 639 807 80,96 639 809 80。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	16 109 322 80 3521.J6 3521.S4 3521.S5 96 502 548 80 96 639 807 80 96 639 809 80
Length	393 mm
Width	401 mm
Height	61 mm
Net Weight	5.1 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

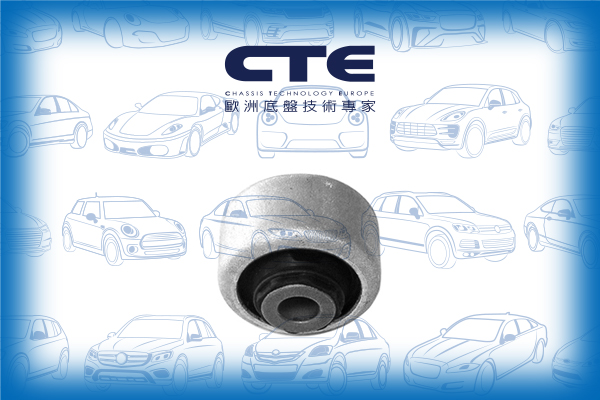

CBH16025	FRONT LOWER ARM INNER	3523.AQ 96 873 817 80

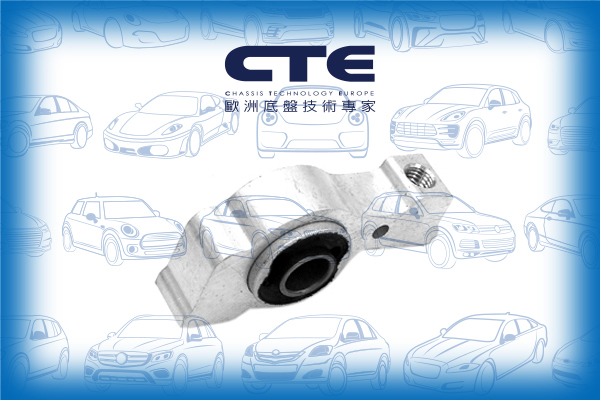

CBH16026	FRONT LOWER ARM REAR	3520.N6 3521.J6

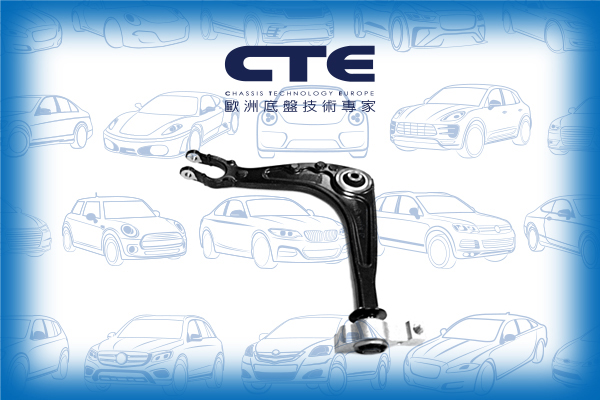

CS-1620L	FRONT LOWER LH	16 109 319 80 3520.N6 3520.W1 96 502 568 80 96 639 806 80
CS-1620R	FRONT LOWER RH	16 109 322 80 3521.J6 3521.S4 3521.S5 96 502 548 80 96 639 807 80 96 639 809 80
CSL16014L	FRONT AXLE LH	5087.52
CSL16014R	FRONT AXLE RH	5087.53

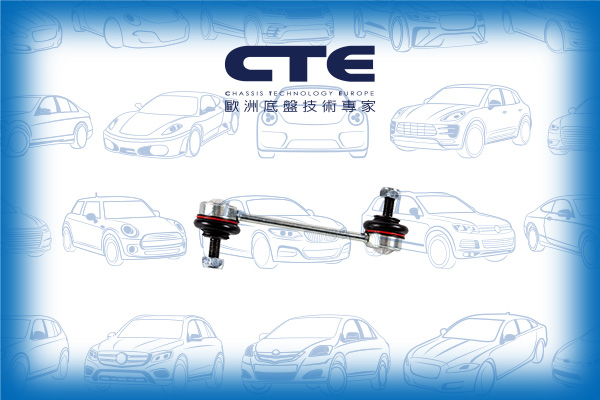

CSL25011	REAR AXLE LH/ RH	1607326080 5178.46 5178.52 9707130080 9807130080
